SMV1 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

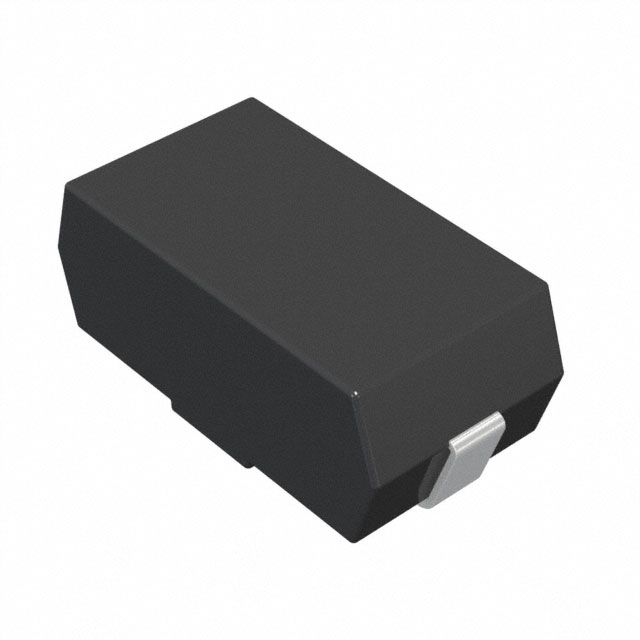

SMD CHIP RESISTOR, 8.2 MOHM, ± 5%, 1 W, 2616 [6740 METRIC], METAL FILM, HIGH POWER, ANTI-SURGE
| Part | Resistance | Package / Case | Power (Watts) | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Features | Number of Terminations [custom] | Height - Seated (Max) [Max] | Height - Seated (Max) | Operating Temperature [Min] | Operating Temperature [Max] | Temperature Coefficient | Tolerance | Composition | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 8.2 MOhms | 2616 (6740 Metric) J-Lead | 1 W | 0.157 " | 4 mm | 6.7 mm | 0.264 in | Anti-Sulfur Flame Proof High Voltage Pulse Withstanding Safety | 2 | 0.152 in | 3.85 mm | -65 ░C | 200 °C | 200 ppm/°C | 5 % | Metal Film | SMD |
 TE Connectivity AMP Connectors | 150000 Ohms | 2616 (6740 Metric) J-Lead | 1 W | 0.157 " | 4 mm | 6.7 mm | 0.264 in | Anti-Sulfur Flame Proof High Voltage Pulse Withstanding Safety | 2 | 0.152 in | 3.85 mm | -65 ░C | 200 °C | 200 ppm/°C | 5 % | Metal Film | SMD |
TE Connectivity AMP Connectors | 4.7 MOhms | 2616 (6740 Metric) J-Lead | 1 W | 0.157 " | 4 mm | 6.7 mm | 0.264 in | Anti-Sulfur Flame Proof High Voltage Pulse Withstanding Safety | 2 | 0.152 in | 3.85 mm | -65 ░C | 200 °C | 200 ppm/°C | 5 % | Metal Film | SMD |
TE Connectivity AMP Connectors | 220000 Ohms | 2616 (6740 Metric) J-Lead | 1 W | 0.157 " | 4 mm | 6.7 mm | 0.264 in | Anti-Sulfur Flame Proof High Voltage Pulse Withstanding Safety | 2 | 0.152 in | 3.85 mm | -65 ░C | 200 °C | 200 ppm/°C | 5 % | Metal Film | SMD |
 TE Connectivity AMP Connectors | 330 kOhms | 2616 (6740 Metric) J-Lead | 1 W | 0.157 " | 4 mm | 6.7 mm | 0.264 in | Anti-Sulfur Flame Proof High Voltage Pulse Withstanding Safety | 2 | 0.152 in | 3.85 mm | -65 ░C | 200 °C | 200 ppm/°C | 5 % | Metal Film | SMD |
TE Connectivity AMP Connectors | 5.6 MOhms | 2616 (6740 Metric) J-Lead | 1 W | 0.157 " | 4 mm | 6.7 mm | 0.264 in | Anti-Sulfur Flame Proof High Voltage Pulse Withstanding Safety | 2 | 0.152 in | 3.85 mm | -65 ░C | 200 °C | 200 ppm/°C | 5 % | Metal Film | SMD |
TE Connectivity AMP Connectors | 10 MOhms | 2616 (6740 Metric) J-Lead | 1 W | 0.157 " | 4 mm | 6.7 mm | 0.264 in | Anti-Sulfur Flame Proof High Voltage Pulse Withstanding Safety | 2 | 0.152 in | 3.85 mm | -65 ░C | 200 °C | 200 ppm/°C | 5 % | Metal Film | SMD |
TE Connectivity AMP Connectors | 6.8 MOhms | 2616 (6740 Metric) J-Lead | 1 W | 0.157 " | 4 mm | 6.7 mm | 0.264 in | Anti-Sulfur Flame Proof High Voltage Pulse Withstanding Safety | 2 | 0.152 in | 3.85 mm | -65 ░C | 200 °C | 200 ppm/°C | 5 % | Metal Film | SMD |
TE Connectivity AMP Connectors | 680 kOhms | 2616 (6740 Metric) J-Lead | 1 W | 0.157 " | 4 mm | 6.7 mm | 0.264 in | Anti-Sulfur Flame Proof High Voltage Pulse Withstanding Safety | 2 | 0.152 in | 3.85 mm | -65 ░C | 200 °C | 200 ppm/°C | 5 % | Metal Film | SMD |
TE Connectivity AMP Connectors | 3.9 MOhms | 2616 (6740 Metric) J-Lead | 1 W | 0.157 " | 4 mm | 6.7 mm | 0.264 in | Anti-Sulfur Flame Proof High Voltage Pulse Withstanding Safety | 2 | 0.152 in | 3.85 mm | -65 ░C | 200 °C | 200 ppm/°C | 5 % | Metal Film | SMD |
