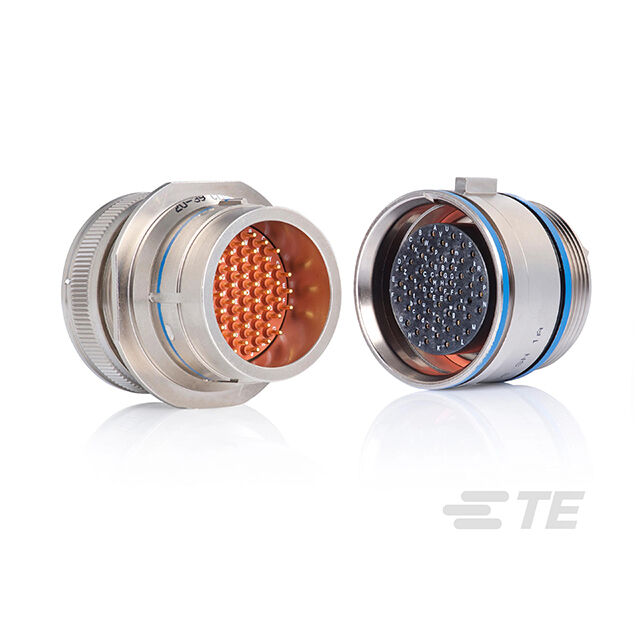

DEUTSCH DBAS 9 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

WIRE-TO-PANEL, 55 POSITION, SEAL

Part	Mounting Type	Shell Material	Applications	Contact Finish - Mating	Connector Type	Fastening Type	Number of Positions	Shell Finish	Voltage Rating	Current Rating (Amps)	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Color	Orientation	Termination	Insert Material	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Features	Mounting Feature
TE Connectivity AMP Connectors DBAS 976G 17-35 SN 1A	Free Hanging (In-Line)	Aluminum Alloy	Aerospace	Gold	Plug Female Sockets	Push-Pull	55	Nickel	115 VAC	5 A	35	17	Silver	N (Normal)	Crimp	Thermoplastic	Shielded	-65 ░C	200 °C	Coupling Nut
TE Connectivity AMP Connectors DBAS 970-25-61 PN 059	Panel Mount	Aluminum Alloy	Aerospace	Gold	Receptacle Male Pins	Push-Pull	61	Nickel	115 VAC	7.5 A	61	25	Silver	N (Normal)	Crimp	Thermoplastic	Unshielded	-65 ░C	200 °C	Cable Clamp	Flange
TE Connectivity AMP Connectors DBAS 970-25-35 SN	Panel Mount	Aluminum Alloy	Aerospace	Gold	Receptacle Female Sockets	Push-Pull	128	Nickel	115 VAC	5 A			Silver	N (Normal)	Crimp	Thermoplastic	Unshielded	-65 ░C	200 °C		Flange
TE Connectivity AMP Connectors DBAS 970-25-61 SN	Panel Mount	Aluminum Alloy	Aerospace	Gold	Receptacle Female Sockets	Push-Pull	61	Nickel	115 VAC	7.5 A	61	25	Silver	N (Normal)	Crimp	Thermoplastic	Unshielded	-65 ░C	200 °C		Flange
TE Connectivity AMP Connectors DBAS 978-25-35 PN	Free Hanging (In-Line)	Aluminum Alloy	Aerospace	Gold	Plug Male Pins	Push-Pull	128	Nickel	115 VAC	5 A			Silver	N (Normal)	Crimp	Thermoplastic	Unshielded	-65 ░C	200 °C
TE Connectivity AMP Connectors DBAS 979G 25-35 PN
TE Connectivity AMP Connectors DBAS 978-25-35 SN 059	Free Hanging (In-Line)	Aluminum Alloy	Aerospace	Gold	Plug Female Sockets	Push-Pull	128	Nickel	115 VAC	5 A			Silver	N (Normal)	Crimp	Thermoplastic	Unshielded	-65 ░C	200 °C	Cable Clamp
TE Connectivity AMP Connectors DBAS 974-23-55 PN	Panel Mount	Aluminum Alloy	Aerospace	Gold	Receptacle Male Pins	Push-Pull	55	Nickel	115 VAC	7.5 A	55	23	Silver	N (Normal)	Crimp	Thermoplastic	Unshielded	-65 ░C	200 °C		Bulkhead - Front Side Nut
TE Connectivity AMP Connectors DBAS 970-25-61 PN
TE Connectivity AMP Connectors DBAS 978-25-35 SN	Free Hanging (In-Line)	Aluminum Alloy	Aerospace	Gold	Plug Female Sockets	Push-Pull	128	Nickel	115 VAC	5 A			Silver	N (Normal)	Crimp	Thermoplastic	Unshielded	-65 ░C	200 °C
