bz Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K

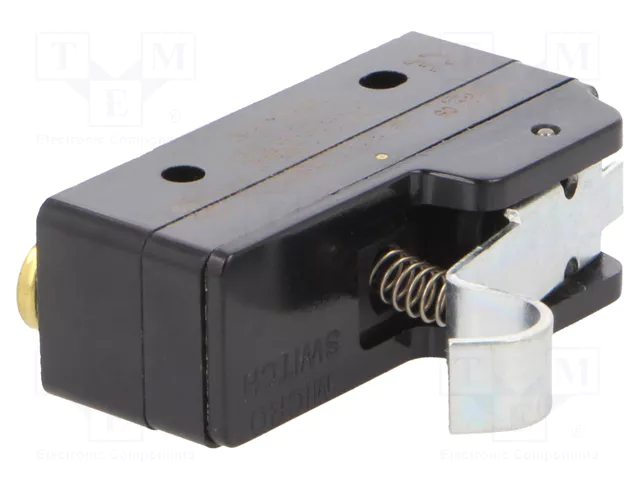

MICROSWITCH SNAP ACTION; 15A/250VAC; 15A/250VDC; SPDT; POS: 2; BZ
| Part | Current Rating (Amps) | Actuator Type | Operating Force | Mechanical Life | Circuit | Operating Temperature [Min] | Operating Temperature [Max] | Termination Style | Differential Travel | Differential Travel | Voltage Rating - DC | Mounting Type | Overtravel [custom] | Overtravel [custom] | Operating Position | Operating Position | Switch Function | Voltage Rating - AC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | 15 A 500 mA | Lever Simulated Roller | 482 gf | 20000000 Cycles | SPDT | -55 C | 85 °C | Screw Terminal | 0.05 in | 1.3 mm | 125 VDC | Chassis Mount | 2.4 mm | 0.094 " | 30.2 mm | 1.188 in | On-Mom | 125 V |
