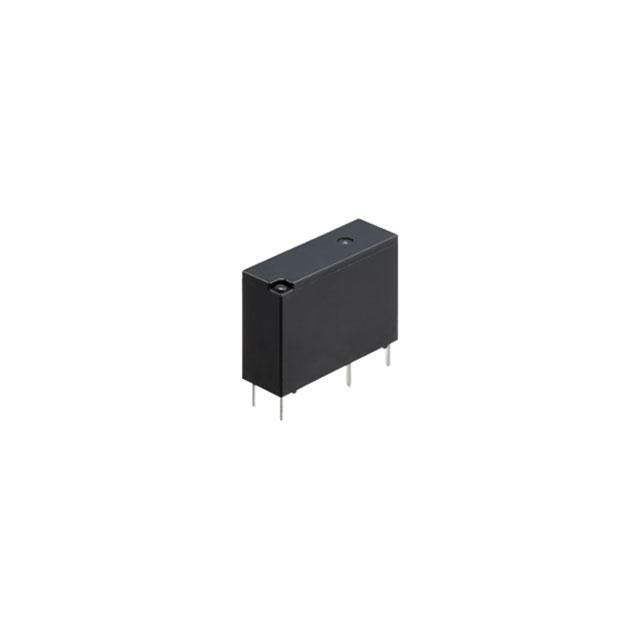

ALDP10 Series

Catalog

POWER RELAY, SPST-NO, 6VDC, TH ROHS COMPLIANT: YES

Part	Coil Resistance	Approval Agency	Mounting Type	Must Operate Voltage	Relay Type	Termination Style	Coil Type	Coil Current	Switching Voltage [Max]	Load - Max Switching	Contact Material	Operate Time	Operating Temperature [Max]	Operating Temperature [Min]	Contact Rating (Current)	Contact Form	Coil Insulation	Release Time	Must Release Voltage	Coil Voltage
Panasonic Electronic Components ALDP106	180 Ohms	CQC cURuus VDE	Through Hole	4.5 VDC	General Purpose	PC Pin	Non Latching	33.3 mA	277 VAC	1385 VA	Silver Nickel (AgNi)	10 ms	85 °C	-40 C	5 A	SPST-NO (1 Form A)	Class E	10 ms	0.3 VDC

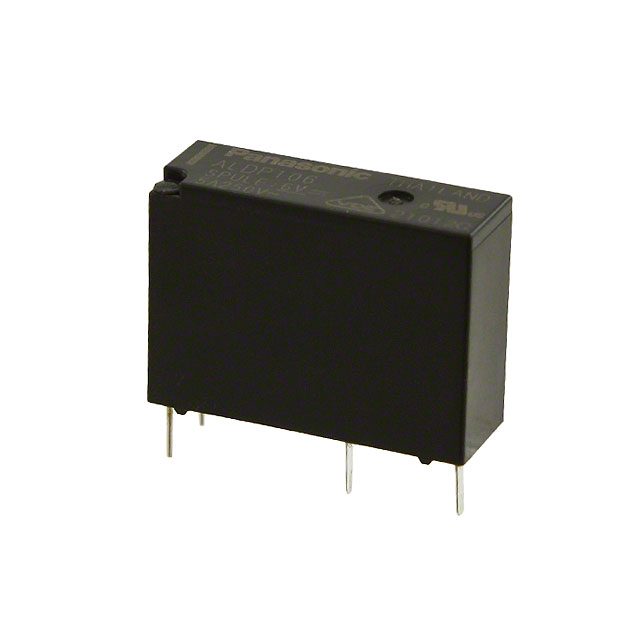

Panasonic Electronic Components ALDP106W	180 Ohms	CQC cURuus VDE	Through Hole	4.5 VDC	General Purpose	PC Pin	Non Latching	33.3 mA	277 VAC	1385 VA	Silver Nickel (AgNi)	10 ms	85 °C	-40 C	5 A	SPST-NO (1 Form A)	Class E	10 ms	0.3 VDC
Panasonic Electronic Components ALDP109	405 Ohms	CQC cURuus VDE	Through Hole	6.75 VDC	General Purpose	PC Pin	Non Latching	22.2 mA	277 VAC	1385 VA	Silver Nickel (AgNi)	10 ms	85 °C	-40 C	5 A	SPST-NO (1 Form A)	Class E	10 ms	0.45 VDC	9 VDC

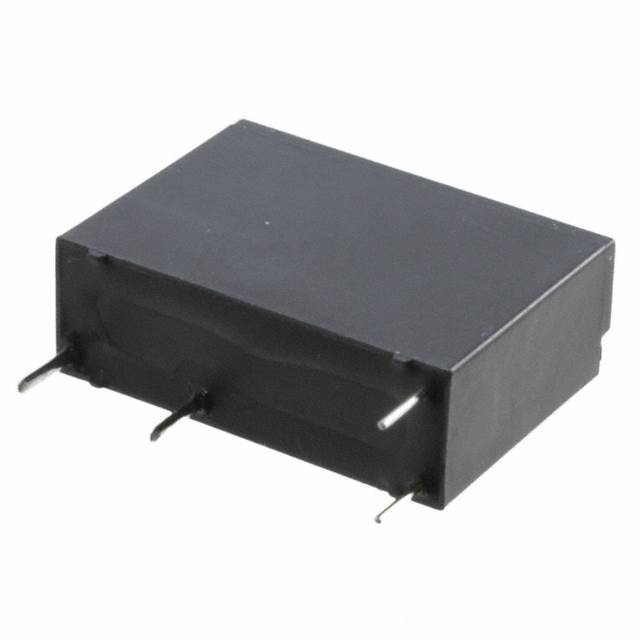

Panasonic Electronic Components ALDP105W	125 Ohms	CQC cURuus VDE	Through Hole	3.75 VDC	General Purpose	PC Pin	Non Latching	40 mA	277 VAC	1385 VA	Silver Nickel (AgNi)	10 ms	85 °C	-40 C	5 A	SPST-NO (1 Form A)	Class E	10 ms	0.25 VDC	5 VDC
Panasonic Electronic Components ALDP105	125 Ohms	CQC cURuus VDE	Through Hole	3.75 VDC	General Purpose	PC Pin	Non Latching	40 mA	277 VAC	1385 VA	Silver Nickel (AgNi)	10 ms	85 °C	-40 C	5 A	SPST-NO (1 Form A)	Class E	10 ms	0.25 VDC	5 VDC
