UTGX1 Series

Manufacturer: Amphenol Aerospace Operations

Catalog

CONN RCPT MALE 7P GOLD SCREW

Part	Applications	Contact Finish - Mating	Number of Positions	Position Types	Mounting Type	Shell Size - Insert Width	Shell Size - Insert Length	Current Rating	Cable Opening (Min)	Cable Opening (Max)	Insert Material	Backshell Material, Plating	Orientation	Primary Material	Voltage Rating	Ingress Protection Description	Ingress Protection IP Rating	Shielding	Color	Termination	Shell Material	Features	Material Flammability Rating	Fastening Type	Contact Material	Connector Type	Operating Temperature (Min)	Operating Temperature (Max)	Note	Shell Size - Insert	Housing Color	Includes Total Count	Includes	Contact Shape	Type	Contact Type	Contact Size
Amphenol Aerospace Operations UTGX1JC147PSCR	Automation Industrial Instrumentation Testing Equipment	Gold	7	PE	Free Hanging (In-Line)	7 mm	14 mm	10 A	0.276 in	0.551 in	Nylon PA Polyamide	Nylon Polyamide (PA)	N (Normal)	Plastic	500 V	Dust Tight Water Resistant Waterproof	IP68 IP69K	Unshielded	Black	Screw	Nylon Polyamide (PA)	Backshell UV Resistant	UL94 V-0	Bayonet Lock	Brass	Male Pins Receptacle	-40 °C	105 °C

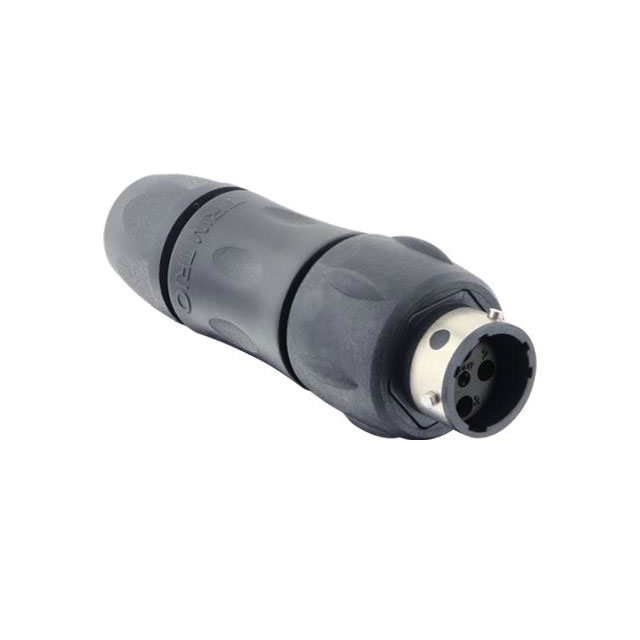

Amphenol Aerospace Operations UTGX1JC124PSCR	Automation Industrial Instrumentation Testing Equipment	Gold	4	PE	Free Hanging (In-Line)	4 mm	12 mm	16 A	0.197 in	0.472 in	Nylon PA Polyamide	Nylon Polyamide (PA)	N (Normal)	Plastic	500 V	Dust Tight Water Resistant Waterproof	IP68 IP69K	Unshielded	Black	Screw	Nylon Polyamide (PA)	Backshell UV Resistant	UL94 V-0	Bayonet Lock	Brass	Male Pins Receptacle	-40 °C	105 °C

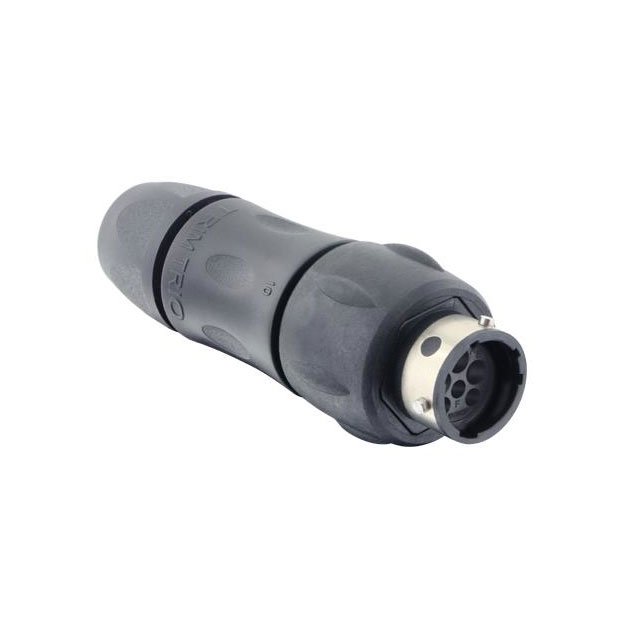

Amphenol Aerospace Operations UTGX1JC103W3P			6		Free Hanging (In-Line)						Nylon PA Polyamide		N (Normal)			Dust Tight Water Resistant Waterproof	IP68 IP69K	Unshielded			Nylon Polyamide (PA)	Backshell UV Resistant	UL94 V-0	Bayonet Lock		Receptacle Housing	-40 °C	105 °C	Contacts Not Included	10-3W3	Black	3 pcs	Backshell Connector O-Ring	Circular	For Male Pins	Crimp	16 20

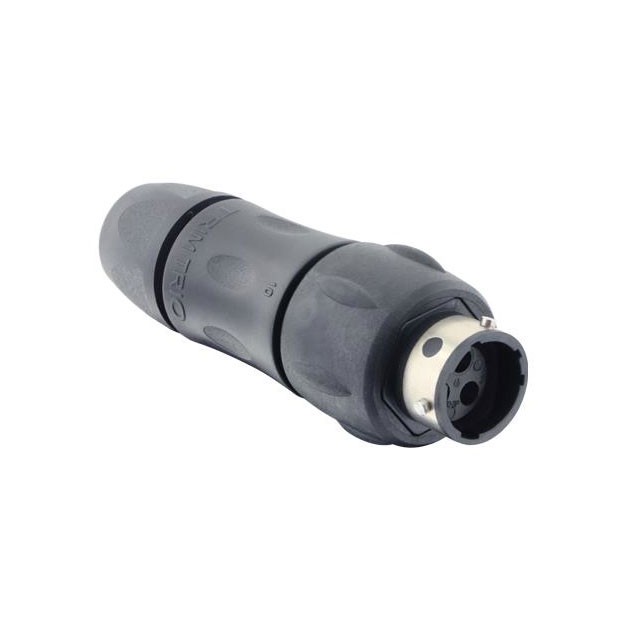

Amphenol Aerospace Operations UTGX1JC103P			3	PE	Free Hanging (In-Line)	3 mm	10 mm				Nylon PA Polyamide		N (Normal)			Dust Tight Water Resistant Waterproof	IP68 IP69K	Unshielded			Nylon Polyamide (PA)	Backshell UV Resistant	UL94 V-0	Bayonet Lock		Receptacle Housing	-40 °C	105 °C	Contacts Not Included		Black	3 pcs	Backshell Connector O-Ring	Circular	For Male Pins	Crimp	16 S

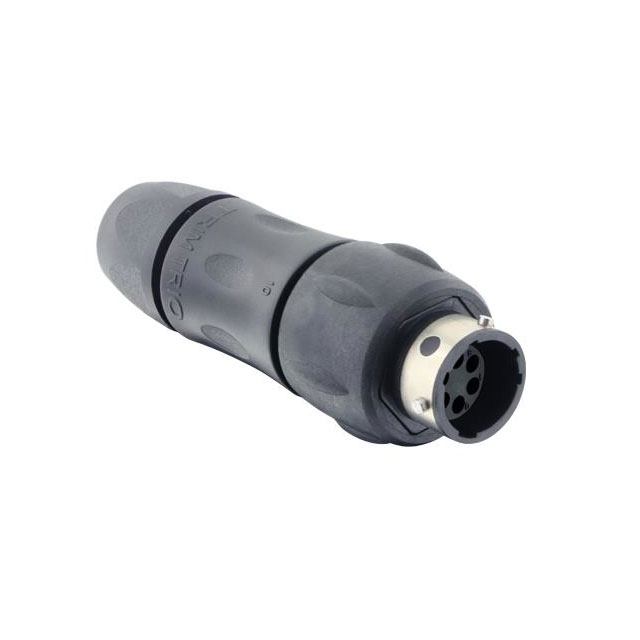

Amphenol Aerospace Operations UTGX1JC106P			6		Free Hanging (In-Line)	6 mm	10 mm				Nylon PA Polyamide		N (Normal)			Dust Tight Water Resistant Waterproof	IP68 IP69K	Unshielded			Nylon Polyamide (PA)	Backshell UV Resistant	UL94 V-0	Bayonet Lock		Receptacle Housing	-40 °C	105 °C	Contacts Not Included		Black	3 pcs	Backshell Connector O-Ring	Circular	For Male Pins	Crimp	20

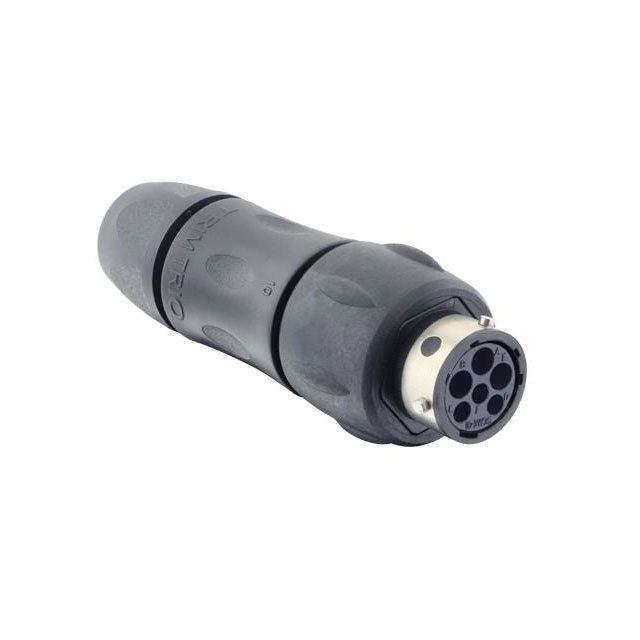

Amphenol Aerospace Operations UTGX1JC103W3S			6		Free Hanging (In-Line)						Nylon PA Polyamide		N (Normal)			Dust Tight Water Resistant Waterproof	IP68 IP69K	Unshielded			Nylon Polyamide (PA)	Backshell UV Resistant	UL94 V-0	Bayonet Lock		Receptacle Housing	-40 °C	105 °C	Contacts Not Included	10-3W3	Black	3 pcs	Backshell Connector O-Ring	Circular	For Female Sockets	Crimp	16 20
Amphenol Aerospace Operations UTGX1JC128P			8		Free Hanging (In-Line)	8 mm	12 mm				Nylon PA Polyamide		N (Normal)			Dust Tight Water Resistant Waterproof	IP68 IP69K	Unshielded			Nylon Polyamide (PA)	Backshell UV Resistant	UL94 V-0	Bayonet Lock		Receptacle Housing	-40 °C	105 °C	Contacts Not Included		Black	3 pcs	Backshell Connector O-Ring	Circular	For Male Pins	Crimp	16 S
Amphenol Aerospace Operations UTGX1JC1210S			10		Free Hanging (In-Line)	10 mm	12 mm				Nylon PA Polyamide		N (Normal)			Dust Tight Water Resistant Waterproof	IP68 IP69K	Unshielded			Nylon Polyamide (PA)	Backshell UV Resistant	UL94 V-0	Bayonet Lock		Receptacle Housing	-40 °C	105 °C	Contacts Not Included		Black	3 pcs	Backshell Connector O-Ring	Circular	For Female Sockets	Crimp	20

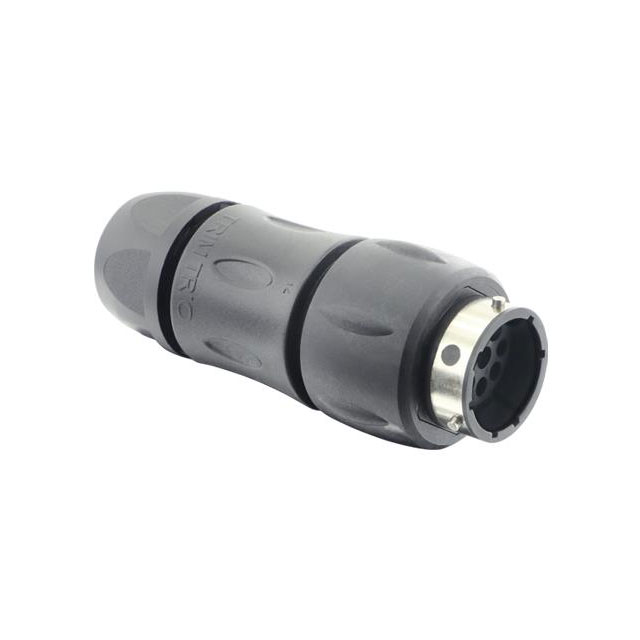

Amphenol Aerospace Operations UTGX1JC148P			8	PE Power	Free Hanging (In-Line)	8 mm	14 mm				Nylon PA Polyamide		N (Normal)			Dust Tight Water Resistant Waterproof	IP68 IP69K	Unshielded			Nylon Polyamide (PA)	Backshell UV Resistant	UL94 V-0	Bayonet Lock		Receptacle Housing	-40 °C	105 °C	Contacts Not Included		Black	3 pcs	Backshell Connector O-Ring	Circular	For Male Pins	Crimp	12 16
Amphenol Aerospace Operations UTGX1JC102W2P			4		Free Hanging (In-Line)						Nylon PA Polyamide		N (Normal)			Dust Tight Water Resistant Waterproof	IP68 IP69K	Unshielded			Nylon Polyamide (PA)	Backshell UV Resistant	UL94 V-0	Bayonet Lock		Receptacle Housing	-40 °C	105 °C	Contacts Not Included	10-2W2	Black	3 pcs	Backshell Connector O-Ring	Circular	For Male Pins	Crimp	12 20
