290297 Series

Catalog

SSR RELAY SPST-NO 50MA 14-30V

Part	Output Type	Voltage - Input	Load Current	Mounting Type	Package / Case	Approval Agency	Termination Style	Voltage - Load [Max]	Voltage - Load [Min]	Operating Temperature [Min]	Operating Temperature [Max]

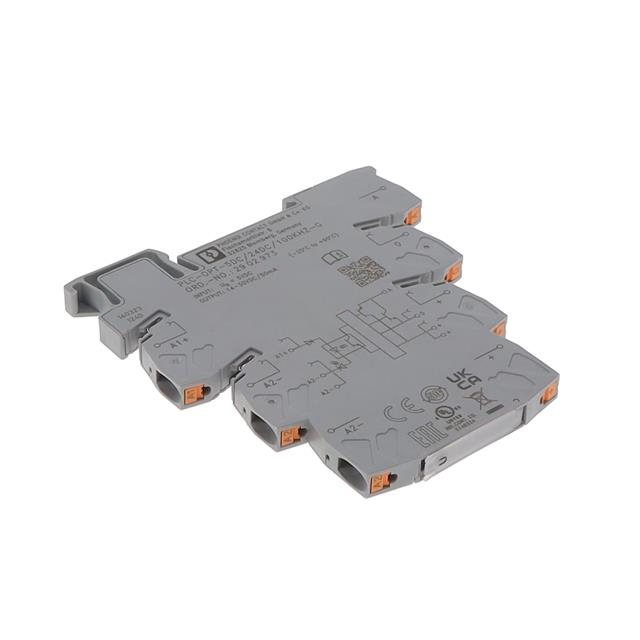

Phoenix Contact 2902973	DC	5 V	50 mA	DIN Rail	Module	CE DNV UKCA	Spring Terminal	30 V	14 V	-25 °C	60 °C

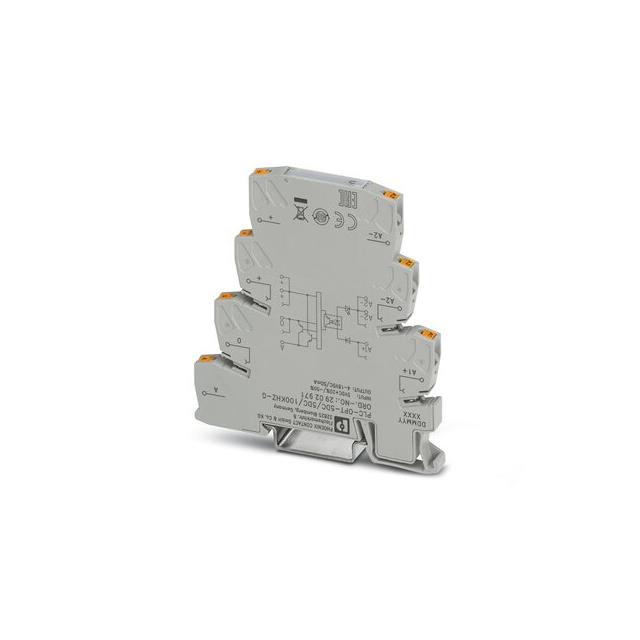

Phoenix Contact 2902971	DC	5 V	50 mA	DIN Rail	Module	CE DNV UKCA	Spring Terminal	18 V	4 V	-25 °C	60 °C

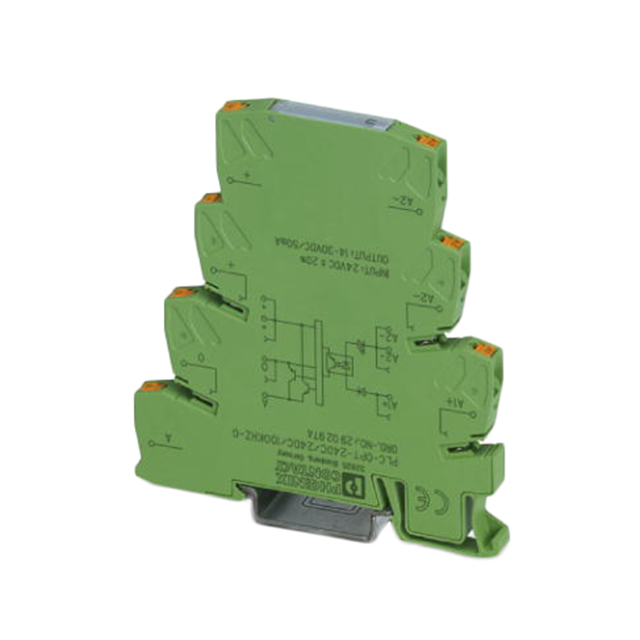

Phoenix Contact 2902974	DC	24 VDC	50 mA	DIN Rail	Module	CE DNV UKCA	Spring Terminal	30 V	14 V	-25 °C	60 °C

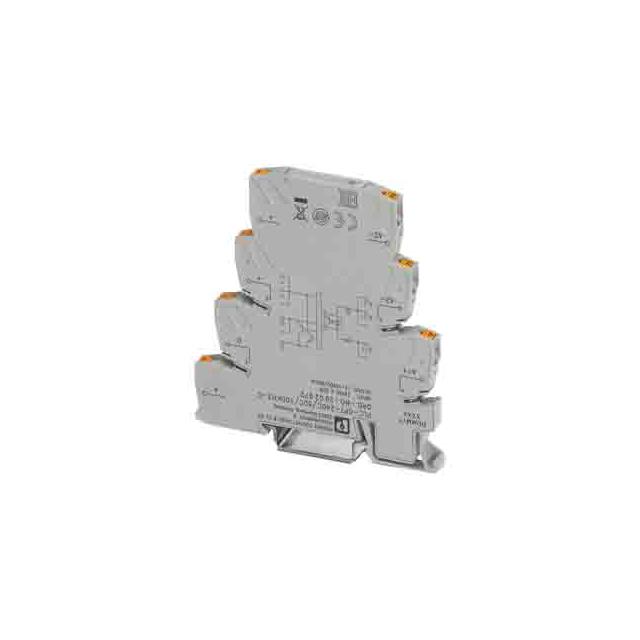

Phoenix Contact 2902972	DC	24 VDC	50 mA	DIN Rail	Module	CE DNV UKCA	Spring Terminal	18 V	4 V	-25 °C	60 °C
