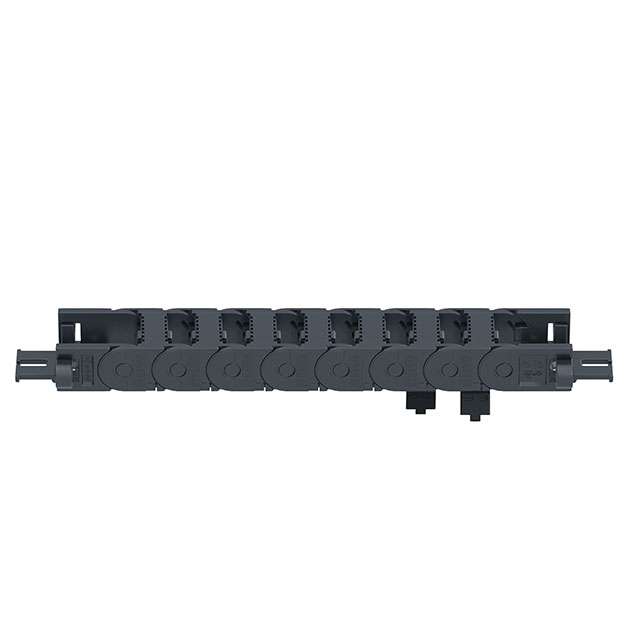

E2I-10 Series

Manufacturer: Igus

Catalog

CABLE CARRIER .59H X 1.47W 1=1FT

Part	Loading Side	Frame Type	Material	Outer Width [x]	Outer Width [x]	Outer Height [z]	Outer Height [z]	Operating Temperature [Max]	Operating Temperature [Min]	Cavity Height [z]	Cavity Height [z]	Cavity Width [y]	Cavity Width	Link Pitch	Link Pitch	Minimum Bend Radius [radius]	Minimum Bend Radius [radius]	Minimum Bend Radius [Min] [radius]	Minimum Bend Radius [Min] [radius]	Outer Width [y]	Outer Width [y]	Cavity Width	Outer Width	Outer Width	Minimum Bend Radius [Min]
Igus E2I-10-30-038-0	Inside and Outside Bend	Open	Igumid G	1.47 in	37.34 mm	14.99 mm	0.59 in	120 °C	-40 C	10.16 mm	0.4 in	1.18 in	29.97 mm	0.79 in	20.07 mm	38.1 mm	1.5 "
Igus E2I-10-20-018-0	Inside and Outside Bend	Open	Igumid G			14.99 mm	0.59 in	120 °C	-40 C	10.16 mm	0.4 in		20.07 mm	0.79 in	20.07 mm			0.71 "	18.03 mm	27.43 mm	1.08 in	0.79 in
Igus E2I-10-06-028-0	Inside and Outside Bend	Open	Igumid G			14.99 mm	0.59 in	120 °C	-40 C	10.16 mm	0.4 in		7.11 mm	0.79 in	20.07 mm			1.1 "				0.28 in	0.53 in	13.46 mm	27.94 mm
