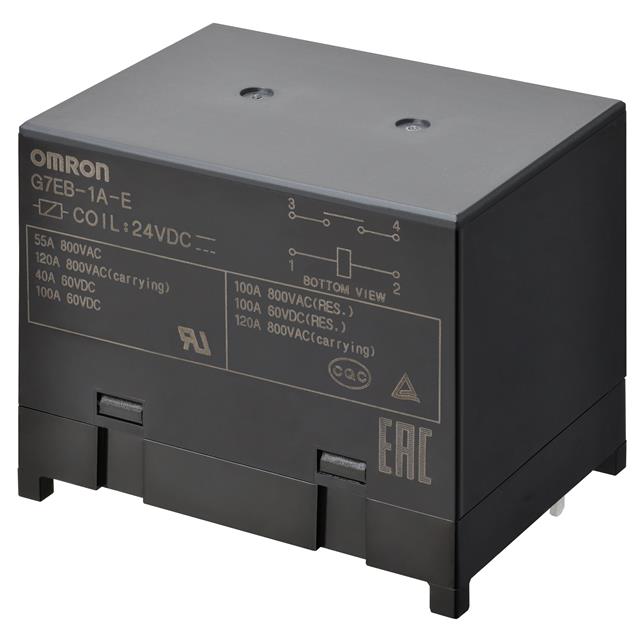

G7EB-1A Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY GEN PURPOSE SPST 100A 24V
| Part | Coil Voltage | Coil Insulation | Coil Current | Contact Material | Seal Rating | Contact Rating (Current) | Switching Voltage | Switching Voltage | Release Time | Coil Resistance | Relay Type | Coil Type | Termination Style | Must Operate Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Operate Time | Load - Max Switching | Contact Form | Mounting Type | Must Release Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | 24 VDC | Class F | 116.5 mA | Cadmium Free Silver Alloy | Sealed - Flux Protection | 120 A | 800 VAC | 60 VDC | 10 ms | 206 Ohms | General Purpose | Non Latching | PC Pin | 18 VDC | 85 °C | -40 °C | 30 ms | 6000 W 48000 VA | SPST-NO (1 Form A) | Through Hole | 1.2 VDC |
