EBSA Series
Manufacturer: Adam Tech
Beta
⌘K

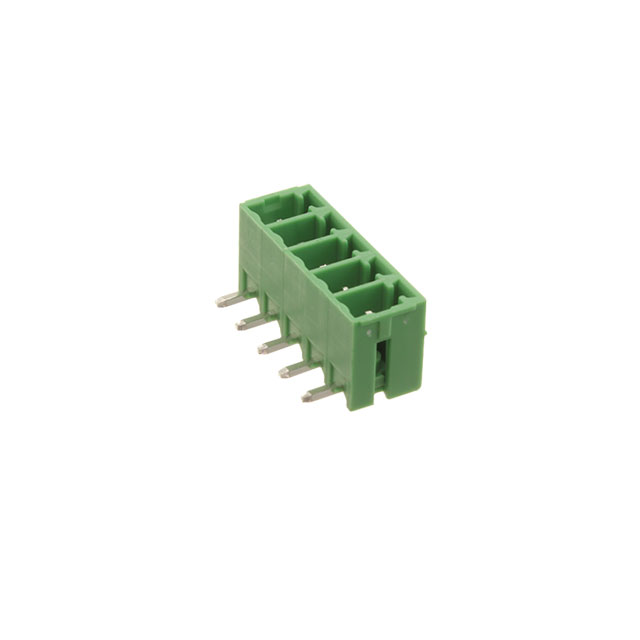

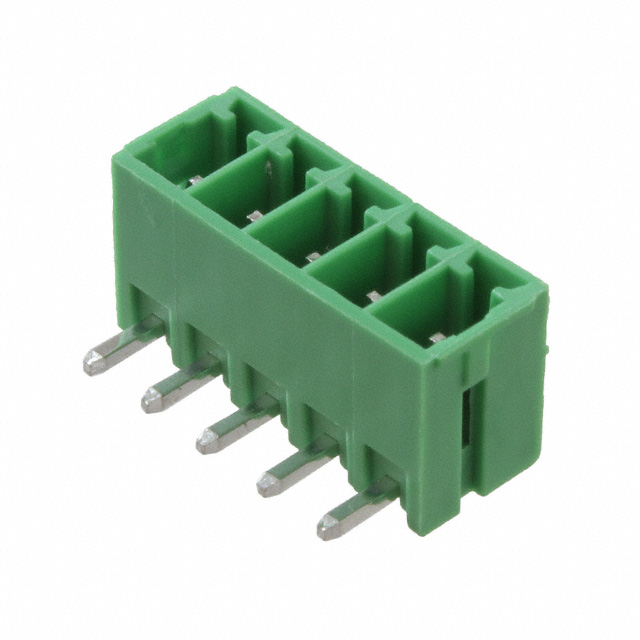

CONN SHROUDED HEADER (4 SIDES) HDR 5 POS 3.81MM SOLDER RA SIDE ENTRY THRU-HOLE
| Part | Contact Material | Material Flammability Rating | Insulation Height | Insulation Height | Contact Tail Length | Contact Tail Length | Operating Temperature [Min] | Operating Temperature [Max] | Current - UL | Pitch | Pitch | Positions Per Level | Number of Positions | Color | Voltage - UL | Type | Number of Levels | Header Orientation | Contact Mating Finish | Mounting Type | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | Brass | UL94 V-0 | 0.276 in | 7 mm | 0.138 in | 3.5 mm | -40 C | 105 ░C | 8 A | 3.81 mm | 0.15 in | 5 | 5 | Green | 300 V | Header Male Pins Shrouded (4 Side) | 1 | 90° Right Angle | Tin | Through Hole | Solder |
 Adam Tech | Brass | UL94 V-0 | 0.276 in | 7 mm | 0.138 in | 3.5 mm | -40 C | 105 ░C | 8 A | 3.5 mm | 0.138 " | 3 | Green | 300 V | Header Male Pins Shrouded (4 Side) | 1 | 90° Right Angle | Tin | Through Hole | Solder | |
 Adam Tech | Brass | UL94 V-0 | 0.276 in | 7 mm | 0.138 in | 3.5 mm | -40 C | 105 ░C | 8 A | 3.81 mm | 0.15 in | 3 | Green | 300 V | Header Male Pins Shrouded (4 Side) | 1 | 90° Right Angle | Tin | Through Hole | Solder | |
 Adam Tech | Brass | UL94 V-0 | 0.276 in | 7 mm | 0.138 in | 3.5 mm | -40 C | 105 ░C | 8 A | 3.5 mm | 0.138 " | 5 | 5 | Green | 300 V | Header Male Pins Shrouded (4 Side) | 1 | 90° Right Angle | Tin | Through Hole | Solder |
