M2024SS Series

Catalog

SWITCH TOGGLE SP3T 6A 125V

Part	Actuator Material	Electrical Life	Mounting Type	Features	Bushing Thread	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Switch Function	Voltage Rating - DC	Actuator Type	Voltage Rating - AC	Panel Cutout Dimensions [diameter]	Circuit	Illumination	Bushing Thread

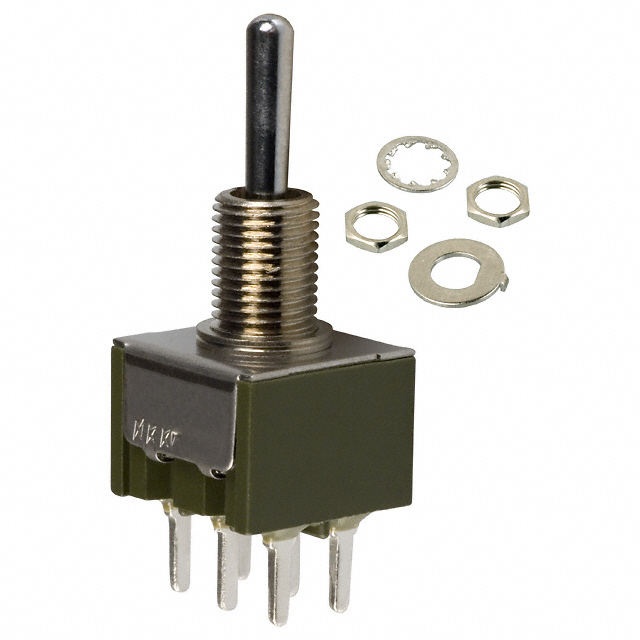

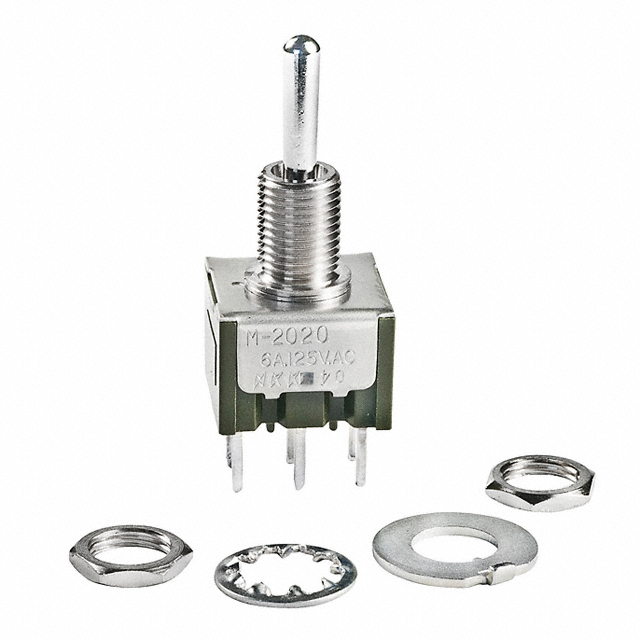

NKK Switches M2024SS1W03	Brass Chrome Plated	25000 Steps	Panel Mount	Jumper needed to achieve triple throw	1/4-40	PC Pin	85 °C	-30 ░C	3 A 6 A	On-On-On	30 V	Standard Round	125 V	6.5 mm	SP3T	Non-Illuminated

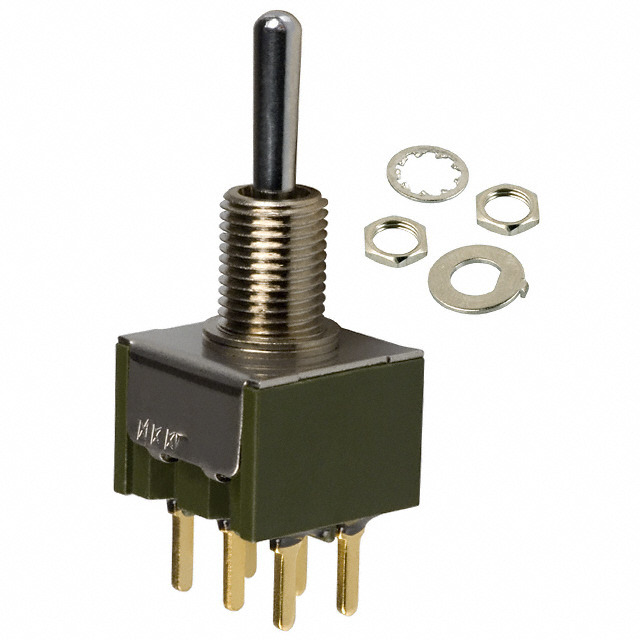

NKK Switches M2024SS1G03	Brass Chrome Plated	50000 Cycles	Panel Mount	Jumper needed to achieve triple throw	1/4-40	PC Pin	85 °C	-30 ░C	0.4 VA	On-On-On	28 V	Standard Round	28 V	6.5 mm	SP3T	Non-Illuminated
NKK Switches M2024SS1W13	Brass Chrome Plated	25000 Steps	Through Hole	Epoxy Sealed Terminals		PC Pin	85 °C	-30 ░C	3 A 6 A	On-On-On	30 V	Standard Round	125 V	6.5 mm	SP3T	Non-Illuminated

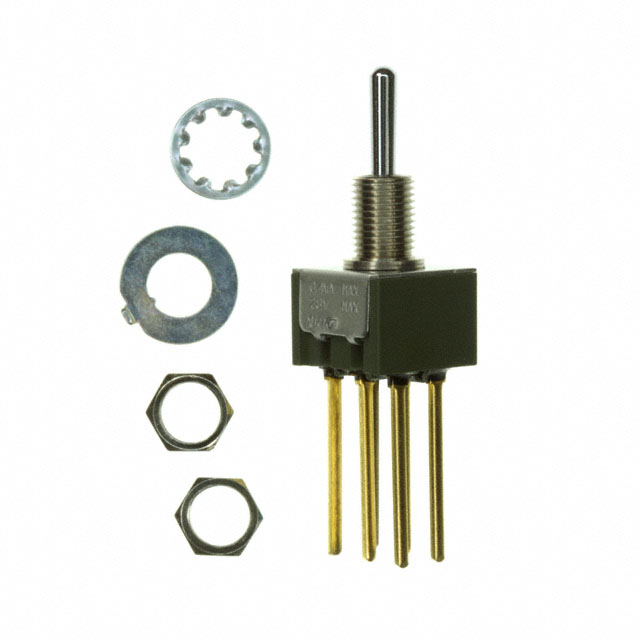

NKK Switches M2024SS1G06	Brass Chrome Plated	50000 Cycles	Panel Mount	Jumper needed to achieve triple throw	1/4-40	Wire Wrap	85 °C	-30 ░C	0.4 VA	On-On-On	28 V	Standard Round	28 V	6.5 mm	SP3T	Non-Illuminated
NKK Switches M2024SS4W01	Brass Chrome Plated	25000 Steps	Panel Mount	Jumper needed to achieve triple throw	M6	Solder Lug	85 °C	-30 ░C	4 A 6 A	On-On-On	30 V	Standard Round	125 V	6.5 mm	SP3T	Non-Illuminated	0.75

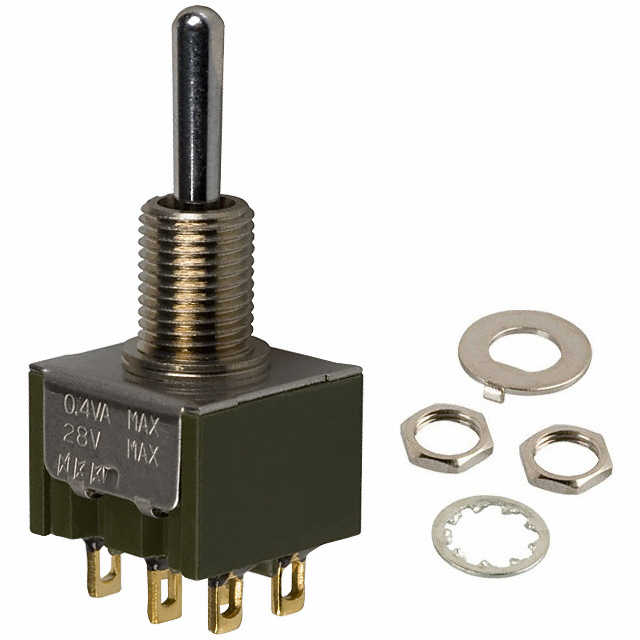

NKK Switches M2024SS1G01	Brass Chrome Plated	50000 Cycles	Panel Mount	Jumper needed to achieve triple throw	1/4-40	Solder Lug	85 °C	-30 ░C	0.4 VA	On-On-On	28 V	Standard Round	28 V	6.5 mm	SP3T	Non-Illuminated

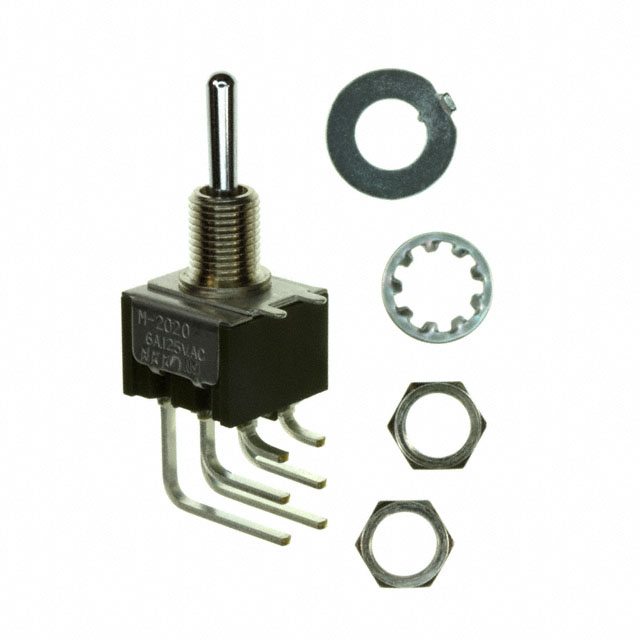

NKK Switches M2024SS1W40	Brass Chrome Plated	50000 Cycles	Panel Mount Right Angle Vertical	Jumper needed to achieve triple throw	1/4-40	PC Pin	85 °C	-30 ░C	3 A 6 A	On-On-On	30 V	Standard Round	125 V	6.5 mm	SP3T	Non-Illuminated
NKK Switches M2024SS1G01/CUL	Brass Chrome Plated	25000 Steps	Panel Mount	Jumper needed to achieve triple throw	1/4-40	Solder Lug	85 °C	-30 ░C	0.4 VA	On-On-On	28 V	Standard Round	28 V	6.5 mm	SP3T	Non-Illuminated
NKK Switches M2024SS1W01	Brass Chrome Plated	25000 Steps	Panel Mount	Jumper needed to achieve triple throw	1/4-40	Solder Lug	85 °C	-30 ░C	3 A 6 A	On-On-On	30 V	Standard Round	125 V	6.5 mm	SP3T	Non-Illuminated
NKK Switches M2024SS2W13	Brass Chrome Plated	25000 Steps	Through Hole	Jumper needed to achieve triple throw	Unthreaded	PC Pin	85 °C	-30 ░C	3 A 6 A	On-On-On	30 V	Standard Round	125 V	6.5 mm	SP3T	Non-Illuminated
