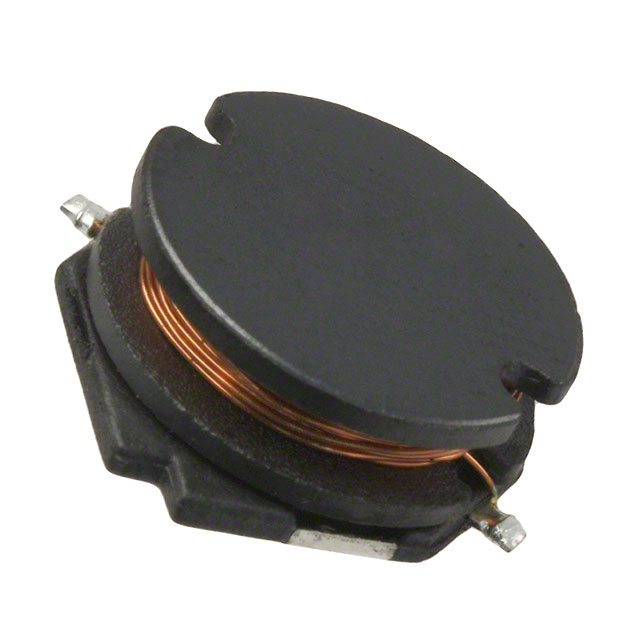

SDR1305 Series

Catalog

IND12.7X12.7X4.8MM,15010%1.2A,NON-SHDSMD /TAPE & REEL - 13" REEL

Part	Size / Dimension [y]	Size / Dimension [x]	Type	Current Rating (Amps)	Material - Core	Q @ Freq	DC Resistance (DCR) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Current - Saturation (Isat)	Inductance Frequency - Test	Frequency - Self Resonant	Shielding	Inductance	Mounting Type	Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Package / Case	DC Resistance (DCR)	Q @ Freq [custom]	Q @ Freq [custom]
Bourns Inc. SDR1305-151K	12.7 mm	12.7 mm	Drum Core Wirewound	1.2 A	Ferrite	17 796 kHz	380 mOhm	125 °C	-40 C	1.15 A	100 kHz	8 MHz	Unshielded	150 µH	Surface Mount	10 %	0.201 in	5.1 mm	Nonstandard
Bourns Inc. SDR1305-470M	12.7 mm	12.7 mm	Drum Core Wirewound	1.9 A	Ferrite			125 °C	-40 C	2 A	100 kHz	13 MHz	Unshielded	47 µH	Surface Mount	20 %	0.201 in	5.1 mm	Nonstandard	130 mOhm	2.52 MHz	24
Bourns Inc. SDR1305-220M	12.7 mm	12.7 mm	Drum Core Wirewound	2.9 A	Ferrite	2.52 MHz 27		125 °C	-40 C	3 A	100 kHz	20 MHz	Unshielded	22 µH	Surface Mount	20 %	0.201 in	5.1 mm	Nonstandard	62 mOhm
Bourns Inc. SDR1305-221K	12.7 mm	12.7 mm	Drum Core Wirewound	1 A	Ferrite	16 796 kHz	500 mOhm	125 °C	-40 C	950 mA	100 kHz	7 MHz	Unshielded	220 µH	Surface Mount	10 %	0.201 in	5.1 mm	Nonstandard
Bourns Inc. SDR1305-331K	12.7 mm	12.7 mm	Drum Core Wirewound	0.85 A	Ferrite	11 796 kHz		125 °C	-40 C	800 mA	100 kHz	6 MHz	Unshielded	330 µH	Surface Mount	10 %	0.201 in	5.1 mm	Nonstandard	700 mOhm
Bourns Inc. SDR1305-471K	12.7 mm	12.7 mm	Drum Core Wirewound	0.67 A	Ferrite	14 796 kHz		125 °C	-40 C	700 mA	100 kHz	4 MHz	Unshielded	470 µH	Surface Mount	10 %	0.201 in	5.1 mm	Nonstandard	1.15 Ohm
Bourns Inc. SDR1305-681K	12.7 mm	12.7 mm	Drum Core Wirewound	600 mA	Ferrite	12 796 kHz	1.4 Ohm	125 °C	-40 C	580 mA	100 kHz	3.5 MHz	Unshielded	680 µH	Surface Mount	10 %	0.201 in	5.1 mm	Nonstandard
Bourns Inc. SDR1305-102K	12.7 mm	12.7 mm	Drum Core Wirewound	460 mA	Ferrite	41 252 kHz		125 °C	-40 C	470 mA	100 kHz	2.7 MHz	Unshielded	1 mH	Surface Mount	10 %	0.201 in	5.1 mm	Nonstandard	2.35 Ohm
Bourns Inc. SDR1305-4R6Y	12.7 mm	12.7 mm	Drum Core Wirewound	5.2 A	Ferrite	7.96 MHz 18	16.5 mOhm	125 °C	-40 C	6 A	100 kHz	35 MHz	Unshielded	4.6 µH	Surface Mount	25 %	0.201 in	5.1 mm	Nonstandard
Bourns Inc. SDR1305-100M	12.7 mm	12.7 mm	Drum Core Wirewound	3.6 A	Ferrite	2.52 MHz 35	37 mOhm	125 °C	-40 C	4.4 A	100 kHz	27 MHz	Unshielded	10 µH	Surface Mount	20 %	0.201 in	5.1 mm	Nonstandard
