2M Series

Catalog

INTERFACE MOD DSUB MALE 37POS

Part	Current Rating (Per Contact)	Operating Temperature	Control Side Connection	Process Side Connection	Length [x]	Length [x]	Control Side Cable Retainer	Wire Gauge [Min]	Wire Gauge [Max]	Positions / Poles	Width [y]	Width	Voltage - Rated	Length	Length

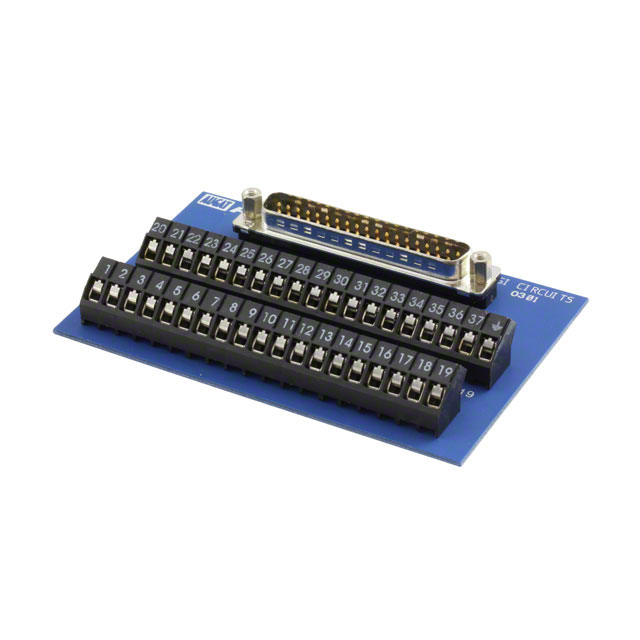

TE Connectivity Raychem Cable Protection 2M37DSM	10 A	120 °C	D-Sub Male	Terminal Blocks - Screw Connection	4.31 in	109.47 mm	Jackscrew Socket	14 AWG	22 AWG	37	2.75 in	69.85 mm	300 V

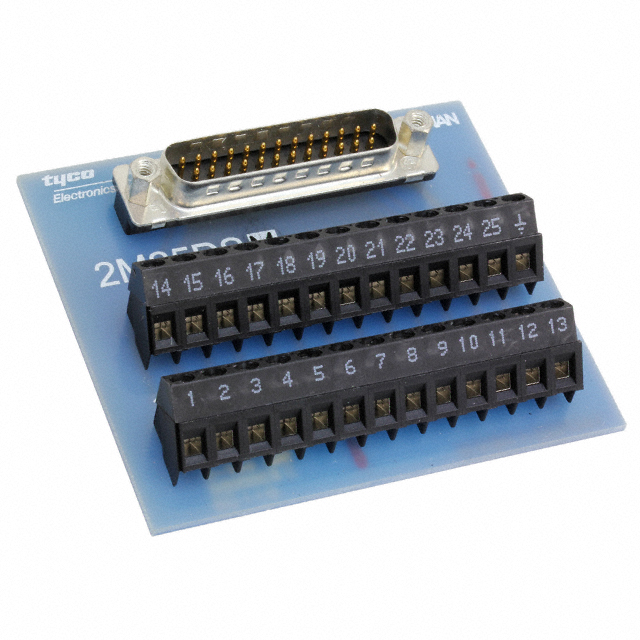

TE Connectivity Raychem Cable Protection 2M25DSM	10 A	120 °C	D-Sub Male	Terminal Blocks - Screw Connection			Jackscrew Socket	14 AWG	22 AWG	25	2.75 in	69.85 mm	300 V	78.74 mm	3.1 in
