284415 Series

Catalog

TERM BLK 4POS TOP ENT 3.81MM PCB

Part	Voltage	Wire Termination	Mating Orientation	Pitch [x]	Pitch [x]	Color	Screw Material - Plating	Features	Screw Thread	Wire Gauge [Max]	Wire Gauge [Min]	Torque - Screw	Torque - Screw	Clamp Material - Plating	Contact Material - Plating [custom]	Number of Levels	Mounting Type	Positions Per Level	Current

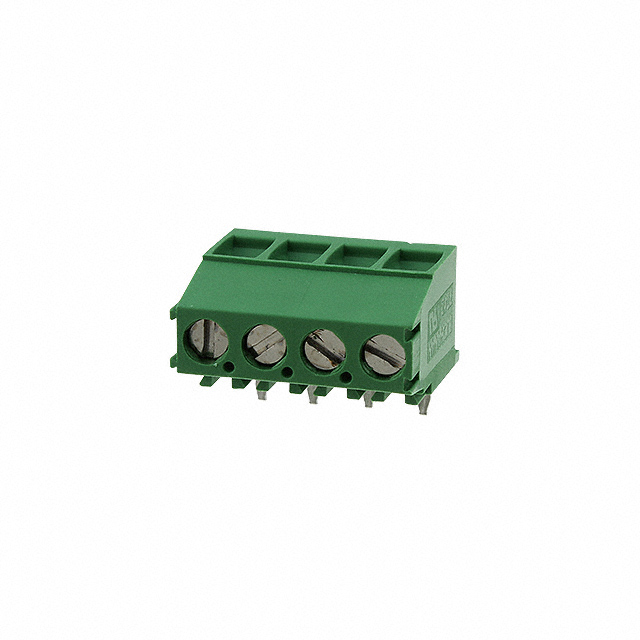

TE Connectivity Raychem Cable Protection 284415-4	300 V	Screw - Rising Cage Clamp	Vertical with Board	0.15 in	3.81 mm	Green	Brass - Nickel Plated	Interlocking (Side)	M3	30 AWG	12 AWG	2.2 Lb-In	0.25 Nm	Brass - Nickel Plated	Brass - Tin Plated	1	Through Hole	4	12 A

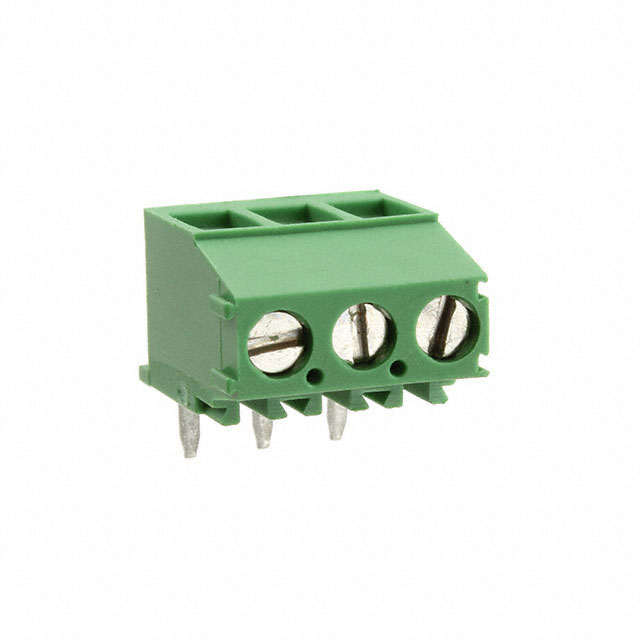

TE Connectivity Raychem Cable Protection 284415-3	300 V	Screw - Rising Cage Clamp	Vertical with Board	0.15 in	3.81 mm	Green	Brass - Nickel Plated	Interlocking (Side)	M3	30 AWG	12 AWG	2.2 Lb-In	0.25 Nm	Brass - Nickel Plated	Brass - Tin Plated	1	Through Hole	3	12 A

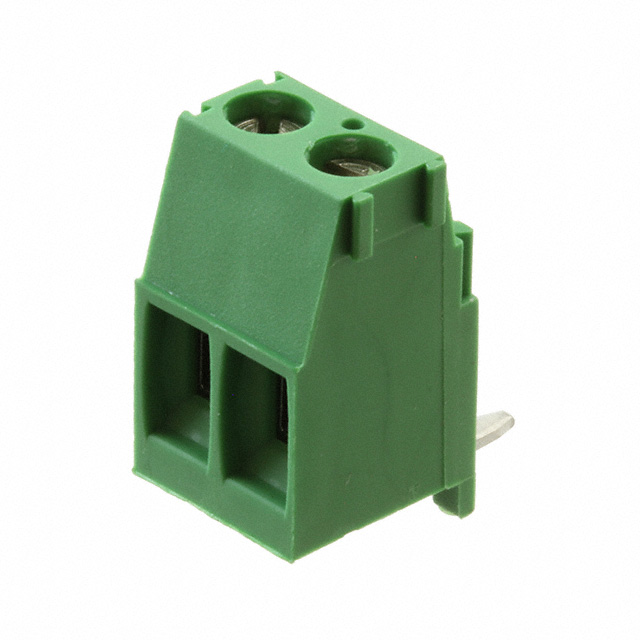

TE Connectivity Raychem Cable Protection 284415-2	300 V	Screw - Rising Cage Clamp	Vertical with Board	0.15 in	3.81 mm	Green	Brass - Nickel Plated	Interlocking (Side)	M3	30 AWG	12 AWG	2.2 Lb-In	0.25 Nm	Brass - Nickel Plated	Brass - Tin Plated	1	Through Hole	2	12 A

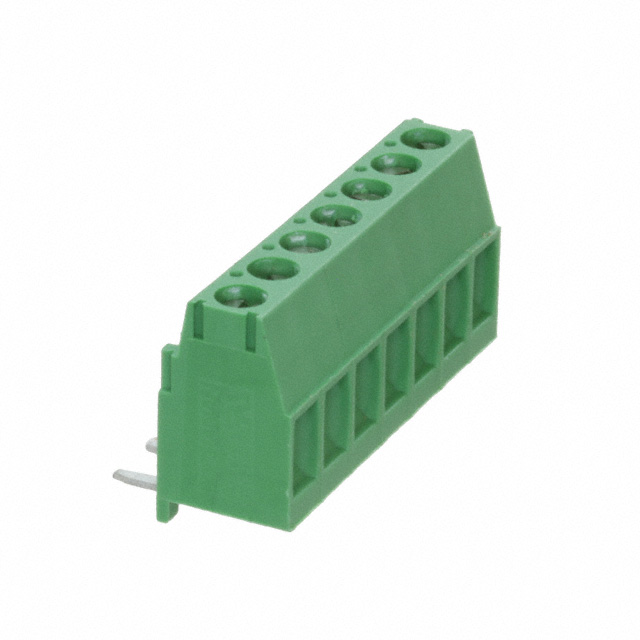

TE Connectivity Raychem Cable Protection 284415-7	300 V	Screw - Rising Cage Clamp	Vertical with Board	0.15 in	3.81 mm	Green	Brass - Nickel Plated	Interlocking (Side)	M3	30 AWG	12 AWG	2.2 Lb-In	0.25 Nm	Brass - Nickel Plated	Brass - Tin Plated	1	Through Hole	7	12 A
