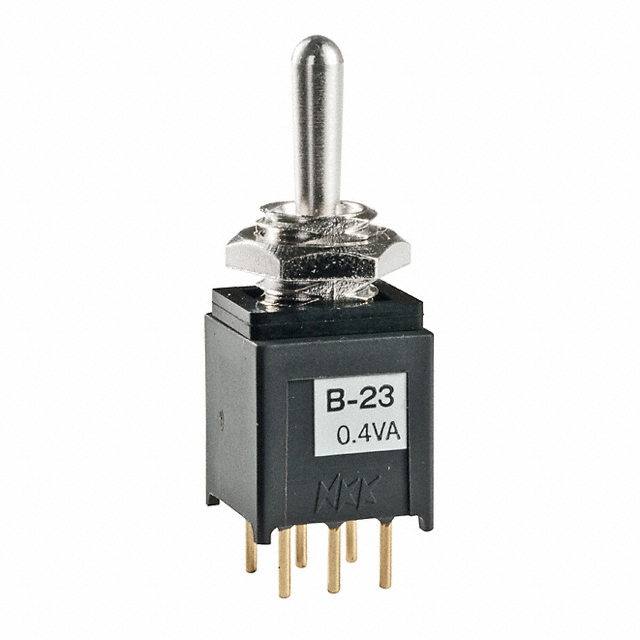

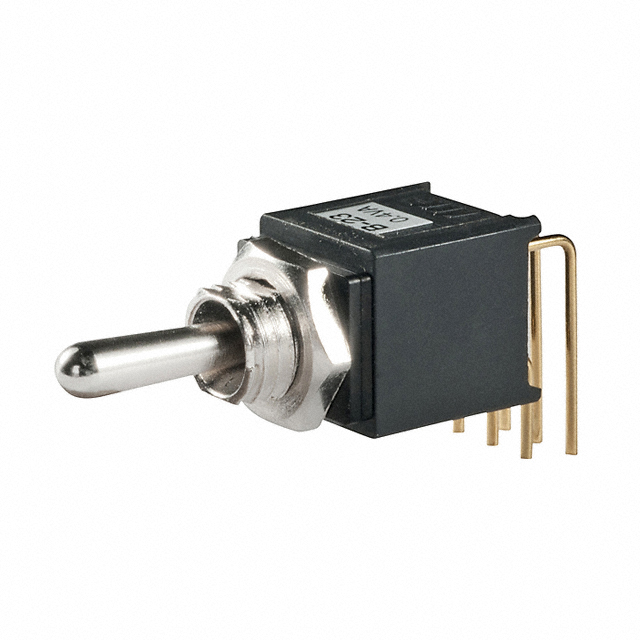

B23A1 Series
Manufacturer: NKK Switches
Beta
⌘K
PROCESS SEALED SUBMINIATURE ANTISTATIC TOGGLE
| Part | Actuator Material | Electrical Life | Bushing Thread | Bushing Thread | Current Rating (Amps) | Voltage Rating - AC | Actuator Type | Panel Cutout Dimensions [diameter] | Circuit | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Voltage Rating - DC | Mounting Type | Switch Function | Actuator Length [x] | Illumination | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | Brass Nickel Plated | 50000 Cycles | 0.75 | M6 | 0.4 VA | 28 V | Standard Round | 6 mm | DPDT | 85 °C | -30 ░C | PC Pin | 28 V | Panel Mount Right Angle | On-Off-On | 8 mm | Non-Illuminated | Epoxy Sealed Terminals |
