LP1-5 Series

Catalog

LED INDICATOR 5MM - RED, BLINK

Part	Type	Lamp Color	Current	Panel Cutout Shape	Features	Millicandela Rating	Voltage	Lens Style	Panel Cutout Dimension	Lens Diameter	Termination Style	Termination Length	Viewing Angle	Ratings	Lens Color	Lens Transparency

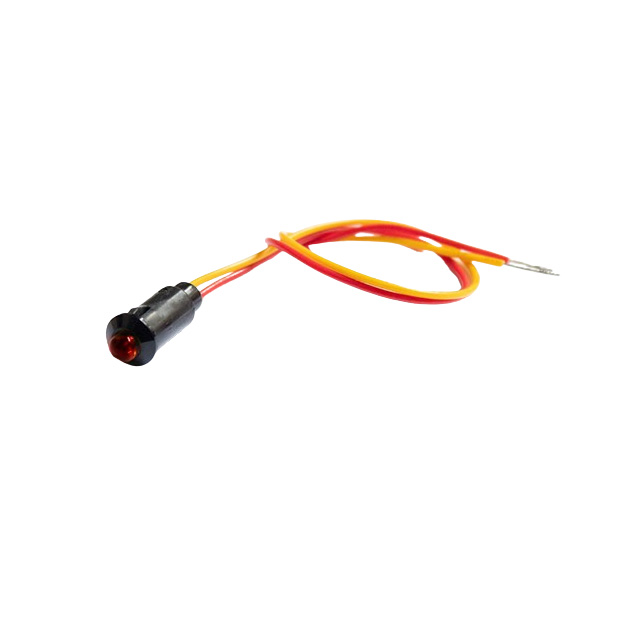

Switch Components LP1-5-W-R-BK	LED	Red	20 mA	Round	Flashing LED	350 mcd	2 V	Domed Top Round	0.32 "	5 mm	Wire Leads	6.7 in	25 °	If (Max) Vf (Typ)	Red	Diffused
Switch Components LP1-5-W-A	LED	Yellow	20 mA	Round		150 mcd	2 V	Domed Top Round	0.32 "	5 mm	Wire Leads	6.7 in	15 °	If (Max) Vf (Typ)	Yellow	Clear
Switch Components LP1-5-W-R	LED	Red	20 mA	Round		350 mcd	2 V	Domed Top Round	0.32 "	5 mm	Wire Leads	6.7 in	25 °	If (Max) Vf (Typ)	Red	Diffused
