627W21W Series

Manufacturer: EDAC Inc.

Catalog

CONN D-SUB PLUG 21P PNL MNT

Part	Operating Temperature [Max]	Operating Temperature [Min]	Color	Contact Material	Voltage Rating	Dielectric Material	Contact Finish	Number of Rows [custom]	Material Flammability Rating	Features	Ingress Protection	Connector Type	Connector Style	Shell Material, Finish	Mounting Type	Number of Positions	Shell Size, Connector Layout	Shell Size, Connector Layout	Contact Type	Current Rating (Amps)	Contact Finish Thickness	Contact Finish Thickness	Flange Feature	Flange Feature	Termination	Contact Finish Thickness	Current Rating (Amps)
EDAC Inc. 627W21W1322-4N2	85 °C	-25 °C	Black	Copper Alloy	125 VDC	Polybutylene Terephthalate (PBT) Glass Filled	Gold	2	UL94 V-0	Grounding Indents Shielded	IP67 - Dust Tight Waterproof	Plug Male Pins	Combo D-Sub	Nickel Plated Steel	Panel Mount Through Hole	21	21W1 B DB	3	Signal and Power	5 A 40 A	0.38 µm	15 µin	Housing/Shell	4-40
EDAC Inc. 627W21W1224-4NA	85 °C	-25 °C	Black	Copper Alloy	125 VDC	Polybutylene Terephthalate (PBT) Glass Filled	Gold	2	UL94 V-0	Grounding Indents Shielded	IP67 - Dust Tight Waterproof	Plug Male Pins	Combo D-Sub	Nickel Plated Steel	Panel Mount Through Hole	21	21W1 B DB	3	Signal and Power	5 A 40 A			Housing/Shell (M3)		Solder	Flash

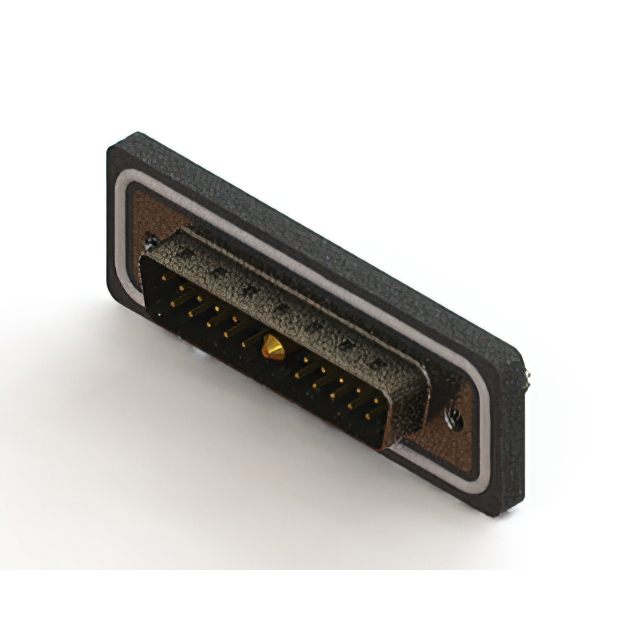

EDAC Inc. 627W21W1224-1ND	85 °C	-25 °C	Black	Copper Alloy	125 VDC	Polybutylene Terephthalate (PBT) Glass Filled	Gold	2	UL94 V-0	Board Lock Grounding Indents Shielded	IP67 - Dust Tight Waterproof	Plug Male Pins	Combo D-Sub	Nickel Plated Steel	Panel Mount Through Hole	21	21W1 B DB	3	Signal and Power				Board Side (M3)		Solder	Flash	10A 5A
EDAC Inc. 627W21W1324-3ND	85 °C	-25 °C	Black	Copper Alloy	125 VDC	Polybutylene Terephthalate (PBT) Glass Filled	Gold	2	UL94 V-0	Board Lock Grounding Indents Shielded	IP67 - Dust Tight Waterproof	Plug Male Pins	Combo D-Sub	Nickel Plated Steel	Panel Mount Through Hole	21	21W1 B DB	3	Signal and Power	5 A 30 A	0.38 µm	15 µin	Board Side (M3)		Solder
EDAC Inc. 627W21W1324-2NA	85 °C	-25 °C	Black	Copper Alloy	125 VDC	Polybutylene Terephthalate (PBT) Glass Filled	Gold	2	UL94 V-0	Grounding Indents Shielded	IP67 - Dust Tight Waterproof	Plug Male Pins	Combo D-Sub	Nickel Plated Steel	Panel Mount Through Hole	21	21W1 B DB	3	Signal and Power		0.38 µm	15 µin	Housing/Shell (M3)		Solder		20A 5A
EDAC Inc. 627W21W1224-1N5	85 °C	-25 °C	Black	Copper Alloy	125 VDC	Polybutylene Terephthalate (PBT) Glass Filled	Gold	2	UL94 V-0	Board Lock Grounding Indents Shielded	IP67 - Dust Tight Waterproof	Plug Male Pins	Combo D-Sub	Nickel Plated Steel	Panel Mount Through Hole	21	21W1 B DB	3	Signal and Power				Board Side (4-40)		Solder	Flash	10A 5A
EDAC Inc. 627W21W1224-3NA	85 °C	-25 °C	Black	Copper Alloy	125 VDC	Polybutylene Terephthalate (PBT) Glass Filled	Gold	2	UL94 V-0	Grounding Indents Shielded	IP67 - Dust Tight Waterproof	Plug Male Pins	Combo D-Sub	Nickel Plated Steel	Panel Mount Through Hole	21	21W1 B DB	3	Signal and Power	5 A 30 A			Housing/Shell (M3)		Solder	Flash
EDAC Inc. 627W21W1224-1NA	85 °C	-25 °C	Black	Copper Alloy	125 VDC	Polybutylene Terephthalate (PBT) Glass Filled	Gold	2	UL94 V-0	Grounding Indents Shielded	IP67 - Dust Tight Waterproof	Plug Male Pins	Combo D-Sub	Nickel Plated Steel	Panel Mount Through Hole	21	21W1 B DB	3	Signal and Power				Housing/Shell (M3)		Solder	Flash	10A 5A
EDAC Inc. 627W21W1124-4N2	85 °C	-25 °C	Black	Copper Alloy	125 VDC	Polybutylene Terephthalate (PBT) Glass Filled	Gold	2	UL94 V-0	Grounding Indents Shielded	IP67 - Dust Tight Waterproof	Plug Male Pins	Combo D-Sub	Nickel Plated Steel	Panel Mount Through Hole	21	21W1 B DB	3	Signal and Power	5 A 40 A	0.127 µm	5 µin	Housing/Shell	4-40	Solder
EDAC Inc. 627W21W1224-3ND	85 °C	-25 °C	Black	Copper Alloy	125 VDC	Polybutylene Terephthalate (PBT) Glass Filled	Gold	2	UL94 V-0	Board Lock Grounding Indents Shielded	IP67 - Dust Tight Waterproof	Plug Male Pins	Combo D-Sub	Nickel Plated Steel	Panel Mount Through Hole	21	21W1 B DB	3	Signal and Power	5 A 30 A			Board Side (M3)		Solder	Flash
