MEAS M3200 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

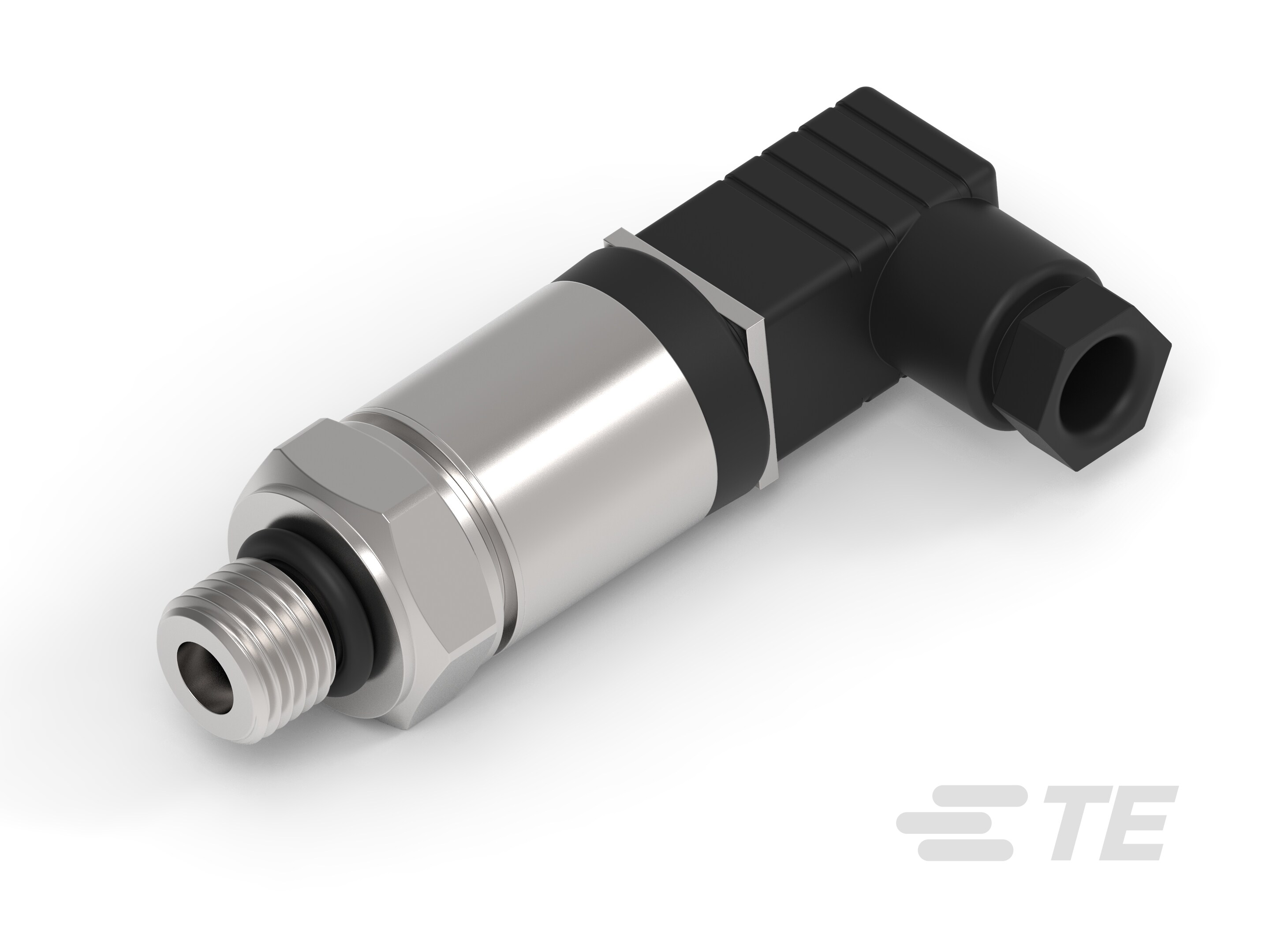

PRESS XDCR M3256-00000B-016BG

Part	Output Type	Port Size	Port Size	Termination Style	Output [Max]	Output [Min]	Pressure Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Pressure	Operating Pressure	Features	Accuracy	Operating Temperature [Max]	Operating Temperature [Min]	Maximum Pressure	Maximum Pressure	Port Style	Package / Case	Applications	Port Size	Port Size	Maximum Pressure [Max]	Maximum Pressure [Max]	Output	Operating Pressure
TE Connectivity AMP Connectors M3256-00000B-016BG
TE Connectivity AMP Connectors M323M-00000P-070BG	Analog Voltage	11.11 mm	7/16 Female UNF	Cable/Wire Leads	4.5 V	0.5 V	Vented Gauge	4.75 V	5.25 V	7000 kPa	1015.26 PSI	Amplified Output Temperature Compensated	0.25 %	125 °C	-40 C	14000 kPa	2031 PSI	Threaded	Cylinder Threaded
TE Connectivity AMP Connectors M3256-00000B-004BG	Analog Current	0.25 in	G Male		20 mA	4 mA	Gauge	9 V	30 VDC	4 bar	58.02 PSI	Amplified Output Temperature Compensated	0.25 %	125 °C	-40 C			Threaded	Cylinder Threaded	Medical Ventilation

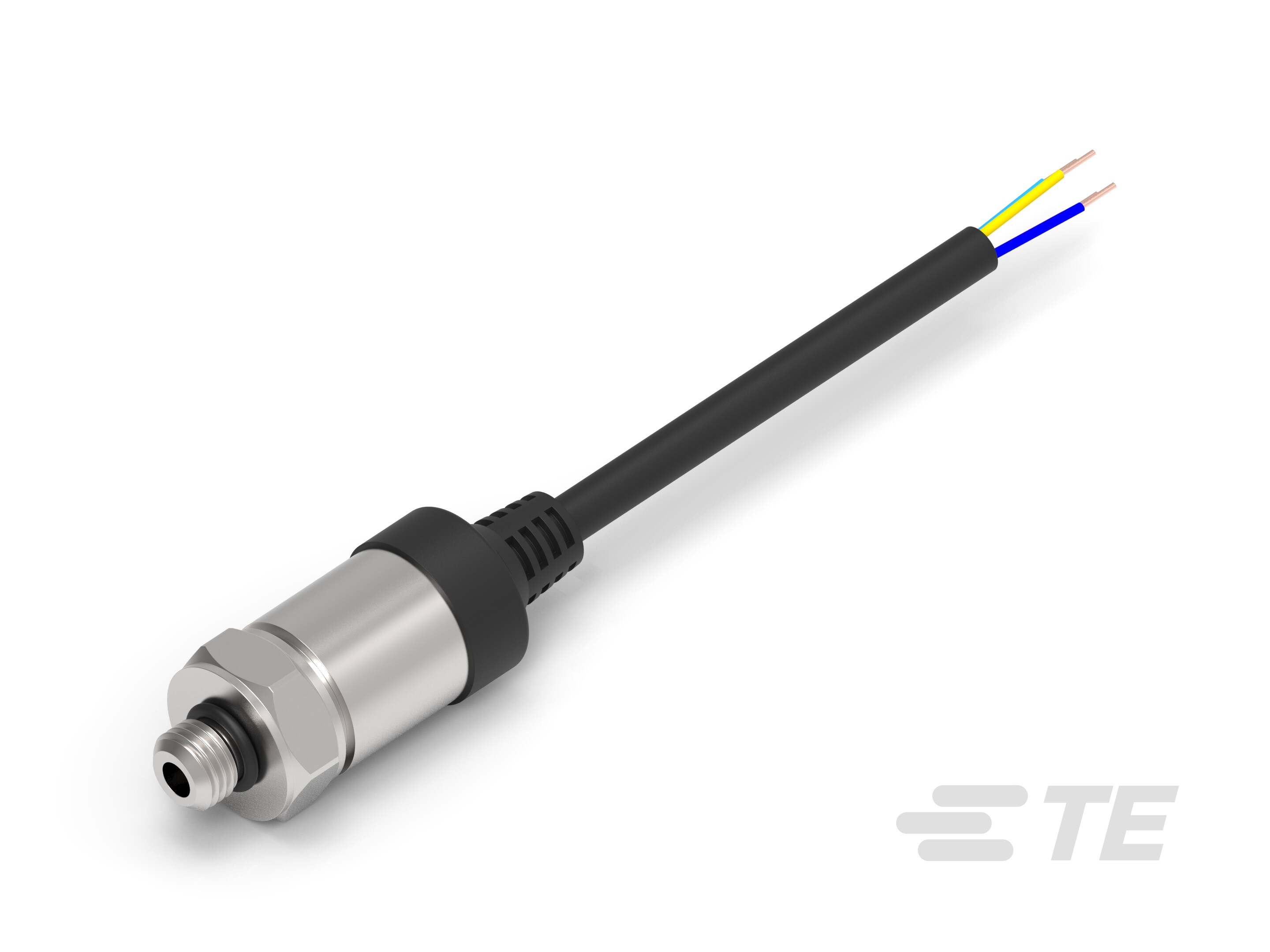

TE Connectivity AMP Connectors M323M-000004-070BG	Analog Voltage	0.44 mm	Male UNF	Cable/Wire Leads	4.5 V	0.5 V	Vented Gauge	4.75 V	5.25 V	7000 kPa	1015.26 PSI	Amplified Output Temperature Compensated	0.25 %	125 °C	-40 C	14000 kPa	2031 PSI	Threaded	Cylinder Threaded			0.4375 in
TE Connectivity AMP Connectors M323M-00000P-017BG	Analog Voltage	11.11 mm	7/16 Female UNF	Cable/Wire Leads	4.5 V	0.5 V	Vented Gauge	4.75 V	5.25 V	1700 kPa	246.56 PSI	Amplified Output Temperature Compensated	0.25 %	125 °C	-40 C			Threaded	Cylinder Threaded				493 PSI	3400 kPa
TE Connectivity AMP Connectors M3289-000004-05KPG
TE Connectivity AMP Connectors M32JM-00000E-010BG	I2C	0.25 in	BSPT Male	Cable			Gauge	2.7 V	5 V	10 bar	145.04 PSI	Amplified Output Temperature Compensated	0.25 %	125 °C	-40 C			Threaded	Cylinder Threaded	Industrial Automation			290.08 PSI	2000 kPa	24 b
TE Connectivity AMP Connectors M325P-00000E-025BG	Analog Current	0.25 in	BSPT Male	Cable/Wire Leads	20 mA	4 mA	Vented Gauge	9 V	30 VDC	362.59 PSI		Amplified Output Temperature Compensated	0.25 %	125 °C	-40 C	5000 kPa	725 PSI	Threaded	Cylinder Threaded							2500 kPa
TE Connectivity AMP Connectors M3234-00000B-007BG	Analog Voltage	0.25 in	G Male		4.5 V	0.5 V	Gauge	4.75 V	5.25 V	700 kPa	101.53 PSI	Amplified Output Temperature Compensated	0.25 %	125 °C	-40 C	1400 kPa		Threaded	Cylinder Threaded	Medical Ventilation			203.05 PSI
TE Connectivity AMP Connectors M325M-000005-100PG	Analog Current	0.25 in	Male NPT	Cable/Wire Leads	20 mA	4 mA	Vented Gauge	9 V	30 VDC	689.48 kPa	100 PSI	Amplified Output Temperature Compensated	0.25 %	125 °C	-40 C	1378.95 kPa	200 PSI	Threaded	Cylinder Threaded		0.25 "
