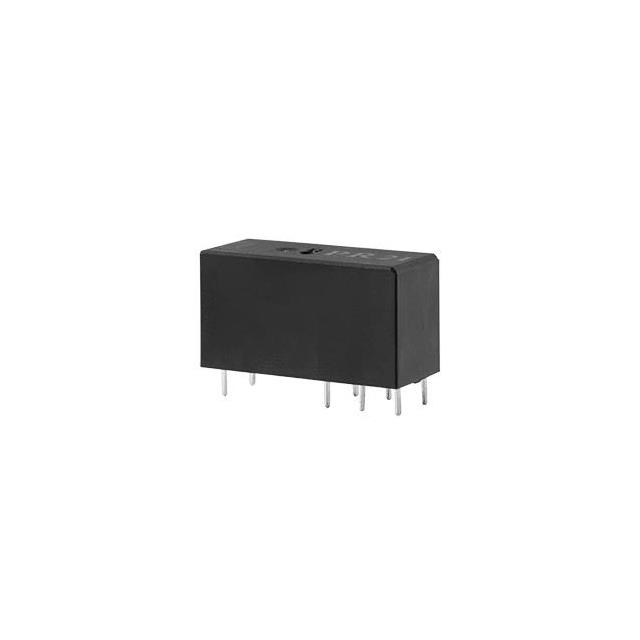

PR21-5V Series
Manufacturer: Same Sky (Formerly CUI Devices)
Beta
⌘K
RELAY GEN PURPOSE DPST 8A 5V
| Part | Contact Rating (Current) | Mounting Type | Contact Form | Contact Material | Release Time | Must Release Voltage | Termination Style | Load - Max Switching | Coil Type | Relay Type | Operate Time | Must Operate Voltage | Coil Current | Coil Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Coil Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Same Sky (Formerly CUI Devices) | 8 A | Through Hole | DPST-NO (2 Form A) | Silver Alloy | 5 ms | 0.5 VDC | PC Pin | 960 W 3520 VA | Non Latching | General Purpose | 10 ms | 3.5 VDC | 80 mA | 5 VDC | 85 °C | -40 C | |
Same Sky (Formerly CUI Devices) | 8 A | Through Hole | DPDT (2 Form C) | Silver Alloy | 5 ms | 0.5 VDC | PC Pin | 960 W 3520 VA | Non Latching | General Purpose | 10 ms | 3.5 VDC | 80 mA | 5 VDC | 85 °C | -40 C | |
Same Sky (Formerly CUI Devices) | 8 A | Through Hole | DPDT (2 Form C) | Silver Alloy | 5 ms | 0.5 VDC | PC Pin | 960 W 3520 VA | Non Latching | General Purpose | 10 ms | 3.5 VDC | 80 mA | 5 VDC | 85 °C | -40 C | 62.5 Ohms |
Same Sky (Formerly CUI Devices) | 8 A | Through Hole | DPST-NO (2 Form A) | Silver Alloy | 5 ms | 0.5 VDC | PC Pin | 960 W 3520 VA | Non Latching | General Purpose | 10 ms | 3.5 VDC | 80 mA | 5 VDC | 85 °C | -40 C | 62.5 Ohms |
