046765 Series
Manufacturer: Molex
Beta
⌘K
CONN MICRO HDMI RCP 19 POS 0.4MM SOLDER RA SMD 19 TERMINAL 1 PORT MICRO HDMI T/R
| Part | Contact Finish | Connector Type | Features | Shell/Shielding Material | Gender | Mounting Feature | Number of Contacts [custom] | Shielding | Mating Cycles | Mounting Type | Number of Ports | Termination | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Material Flammability Rating | Voltage - Rated |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

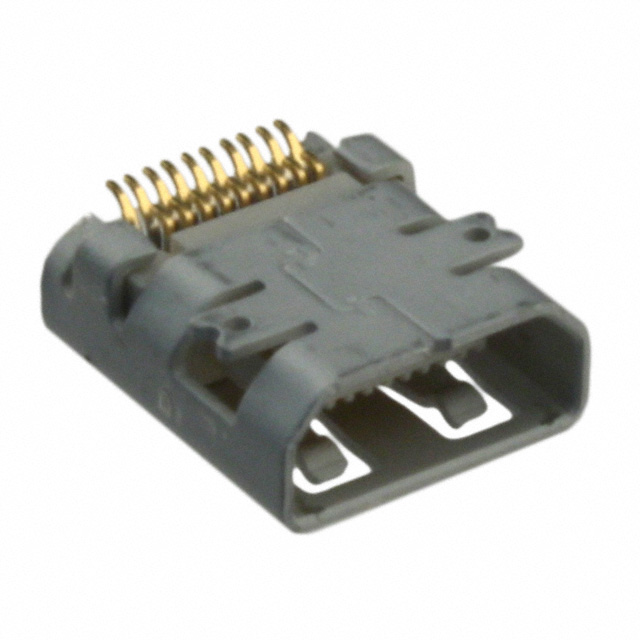

 Molex | Gold | HDMI - Micro | Solder Retention | Stainless Steel | Receptacle | Horizontal | 19 | Shielded | 5000 | Surface Mount Right Angle Through Hole | 1 | Solder | 800 mA | -30 ░C | 85 °C | UL94 V-0 | 30 V |

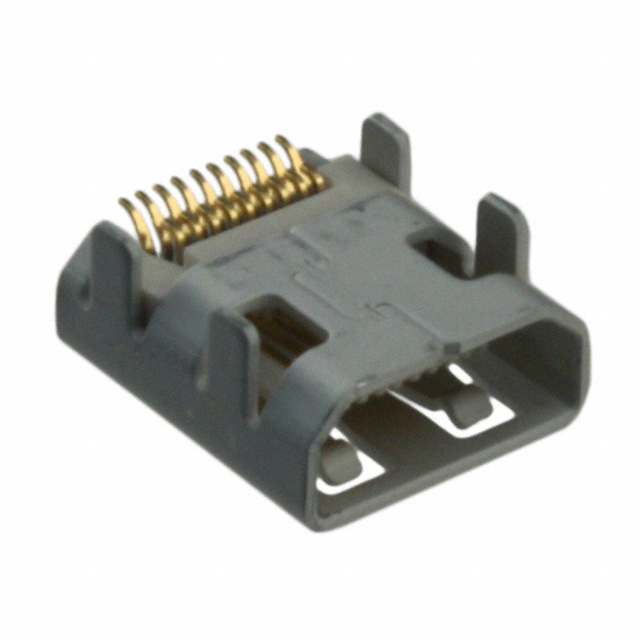

 Molex | Gold | HDMI - Micro | Solder Retention | Stainless Steel | Receptacle | Horizontal | 19 | Shielded | 5000 | Surface Mount Right Angle | 1 | Solder | 800 mA | -30 ░C | 85 °C | UL94 V-0 | 30 V |

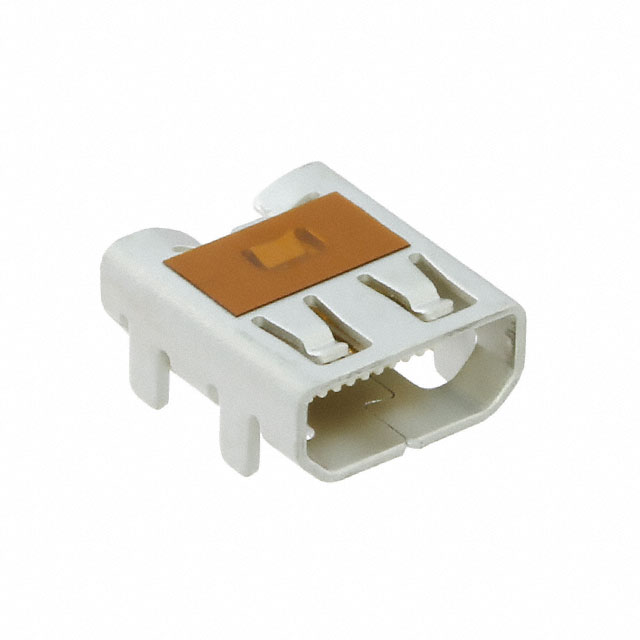

 Molex | Gold | HDMI - Micro | Stainless Steel | Receptacle | Horizontal | 19 | Shielded | 5000 | Surface Mount Right Angle Through Hole | 1 | Solder | 800 mA | -30 ░C | 85 °C | UL94 V-0 | 30 V | |
Molex | |||||||||||||||||

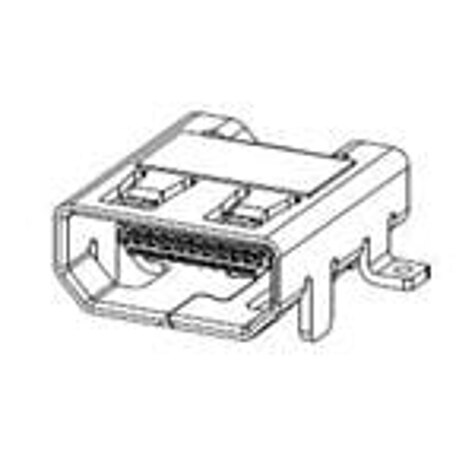

 Molex | Gold | HDMI - Micro | Stainless Steel | Receptacle | Horizontal | 19 | Shielded | 5000 | Surface Mount Right Angle Through Hole | 1 | Solder | 800 mA | -30 ░C | 85 °C | UL94 V-0 | 30 V | |
Molex | Gold | HDMI - Micro | Solder Retention | Stainless Steel | Receptacle | Horizontal | 19 | Shielded | 5000 | Surface Mount Right Angle | 1 | Solder | 800 mA | -30 ░C | 85 °C | UL94 V-0 | 30 V |
Molex | Gold | HDMI - Micro | Solder Retention | Stainless Steel | Receptacle | Horizontal | 19 | Shielded | 5000 | Surface Mount Right Angle Through Hole | 1 | Solder | 800 mA | -30 ░C | 85 °C | UL94 V-0 | 30 V |
