C3801 Series

Catalog

CBL RIBN 40COND 0.05 GRAY 50'

Part	First Conductor Mark	Insulation Resistance	Conductor Material	Length	Length	Features	Wire Gauge	Pitch	Pitch	Ratings	Ribbon Width [custom]	Ribbon Width [custom]	Ribbon Thickness	Ribbon Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Length [x]	Length [x]	Jacket Color	Number of Conductors	Conductor Strand [custom]	Conductor Strand [custom]	Voltage	Shielding	Cable Type	Jacket (Insulation) Material	Number of Conductors [custom]	Length	Spool Size [x]	Spool Size [x]	Number of Conductors [custom]
3M Electronic Specialty C3801/40 100	Red	10 GOhm	Copper Tinned	1 ft 10 ft 25 ft 100 '	3.05 m 7.62 m 30.48 m 304.8 mm	Zippable	26 AWG	0.05 in	1.27 mm	UL Style 2651	2 in	50.8 mm	0.039 in	0.99 mm	-20 ░C	105 ░C	50 ft	15.24 m	Gray	40	7	34 AWG	300 VDC	Unshielded	Flat Cable	Poly-Vinyl Chloride (PVC)
3M Electronic Specialty C3801/20 100	Red	10 GOhm	Copper Tinned	1 ft 10 ft 25 ft 100 '	3.05 m 7.62 m 30.48 m 304.8 mm	Zippable	26 AWG	0.05 in	1.27 mm	UL Style 2651	1 in	25.4 mm	0.039 in	0.99 mm	-20 ░C	105 ░C	50 ft	15.24 m	Gray	20	7	34 AWG	300 VDC	Unshielded	Flat Cable	Poly-Vinyl Chloride (PVC)
3M Electronic Specialty C3801/16 100	Red	10 GOhm	Copper Tinned	1 ft 10 ft 25 ft 100 '	3.05 m 7.62 m 30.48 m 304.8 mm	Zippable	26 AWG	0.05 in	1.27 mm	UL Style 2651	0.8 in	20.32 mm	0.039 in	0.99 mm	-20 ░C	105 ░C	50 ft	15.24 m	Gray	16	7	34 AWG	300 VDC	Unshielded	Flat Cable	Poly-Vinyl Chloride (PVC)
3M Electronic Specialty C3801/10 100	Red	10 GOhm	Copper Tinned	1 ft 10 ft 25 ft 100 '	3.05 m 7.62 m 30.48 m 304.8 mm	Zippable	26 AWG	0.05 in	1.27 mm	UL Style 2651	0.5 in	12.7 mm	0.039 in	0.99 mm	-20 ░C	105 ░C	50 ft	15.24 m	Gray		7	34 AWG	300 VDC	Unshielded	Flat Cable	Poly-Vinyl Chloride (PVC)	10	Enter Number of Feet in Order Quantity	30.48 m	100 ft

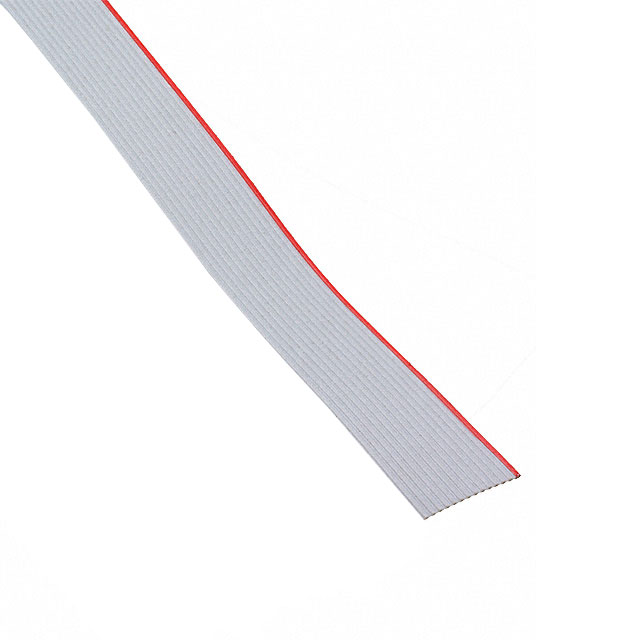

3M Electronic Specialty C3801/14 300	Red	10 GOhm	Copper Tinned	3600 in	91440 mm	Zippable	26 AWG	0.05 in	1.27 mm	UL Style 2651	0.7 in	17.78 mm	0.039 in	0.99 mm	-20 ░C	105 ░C			Gray	14	7	34 AWG	300 VDC	Unshielded	Flat Cable	Poly-Vinyl Chloride (PVC)

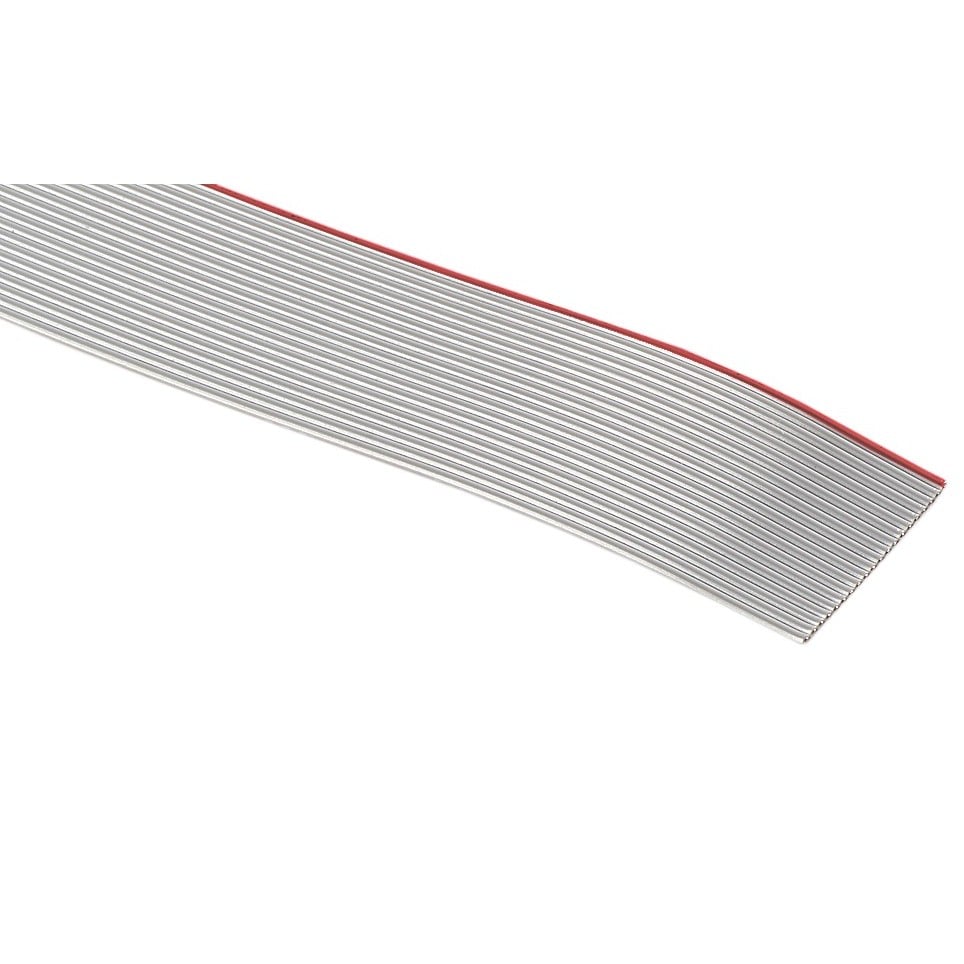

3M Electronic Specialty C3801/64 100	Red	10 GOhm	Copper Tinned	100 '	30.48 m	Zippable	26 AWG	0.05 in	1.27 mm	UL Style 2651	3.2 in	81.28 mm	0.039 in	0.99 mm	-20 ░C	105 ░C			Gray		7	34 AWG	300 VDC	Unshielded	Flat Cable	Poly-Vinyl Chloride (PVC)					64
3M Electronic Specialty C3801/60 100	Red	10 GOhm	Copper Tinned	100 '	30.48 m	Zippable	26 AWG	0.05 in	1.27 mm	UL Style 2651	3 in	76.2 mm	0.039 in	0.99 mm	-20 ░C	105 ░C			Gray	60	7	34 AWG	300 VDC	Unshielded	Flat Cable	Poly-Vinyl Chloride (PVC)
3M Electronic Specialty C3801/24 100	Red	10 GOhm	Copper Tinned	100 '	30.48 m	Zippable	26 AWG	0.05 in	1.27 mm	UL Style 2651	1.2 in	30.48 mm	0.039 in	0.99 mm	-20 ░C	105 ░C			Gray	24	7	34 AWG	300 VDC	Unshielded	Flat Cable	Poly-Vinyl Chloride (PVC)
3M Electronic Specialty C3801/25 100	Red	10 GOhm	Copper Tinned	100 '	30.48 m	Zippable	26 AWG	0.05 in	1.27 mm	UL Style 2651	1.25 in	31.75 mm	0.039 in	0.99 mm	-20 ░C	105 ░C			Gray		7	34 AWG	300 VDC	Unshielded	Flat Cable	Poly-Vinyl Chloride (PVC)					25
3M Electronic Specialty C3801/26 100	Red	10 GOhm	Copper Tinned	1 ft 10 ft 25 ft 100 '	3.05 m 7.62 m 30.48 m 304.8 mm	Zippable	26 AWG	0.05 in	1.27 mm	UL Style 2651	1.3 in	33.02 mm	0.039 in	0.99 mm	-20 ░C	105 ░C	50 ft	15.24 m	Gray	26	7	34 AWG	300 VDC	Unshielded	Flat Cable	Poly-Vinyl Chloride (PVC)
