302-28 Series

Manufacturer: CNC Tech

Catalog

CBL RIBN 26COND 0.05 GRAY 300'

Part	Conductor Material	First Conductor Mark	Insulation Resistance	Ribbon Width [custom]	Ribbon Width [custom]	Length	Length	Number of Conductors	Wire Gauge	Ratings	Operating Temperature	Cable Type	Pitch	Pitch	Conductor Strand [custom]	Conductor Strand [custom]	Voltage	Ribbon Thickness	Ribbon Thickness	Jacket Color	Shielding	Jacket (Insulation) Material	Length [x]	Length [x]	Length	Number of Conductors [custom]	Number of Conductors [custom]

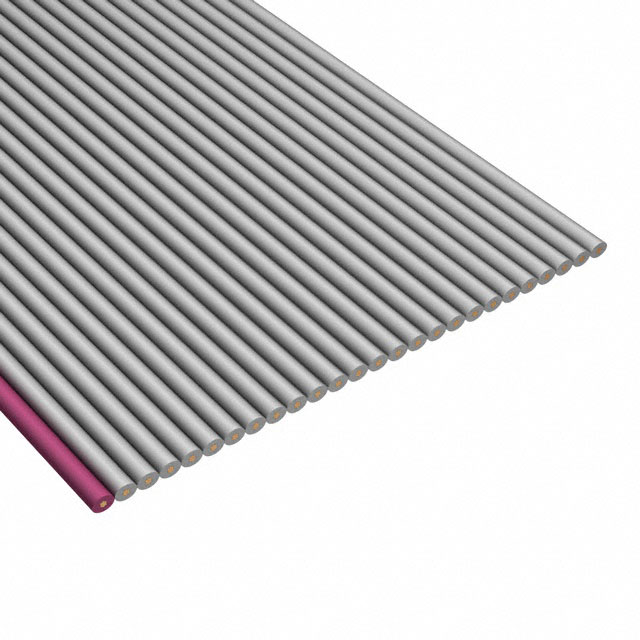

CNC Tech 302-28-26-GR-0300F	Copper Tinned	Red	100 MOhms	1.3 in	33.02 mm	91440 mm	3600 in	26	28 AWG	UL Style 2651	105 C	Flat Cable	0.05 in	1.27 mm	36 AWG	7 Strands	300 VDC	0.89 mm	0.035 in	Gray	Unshielded	Poly-Vinyl Chloride (PVC)

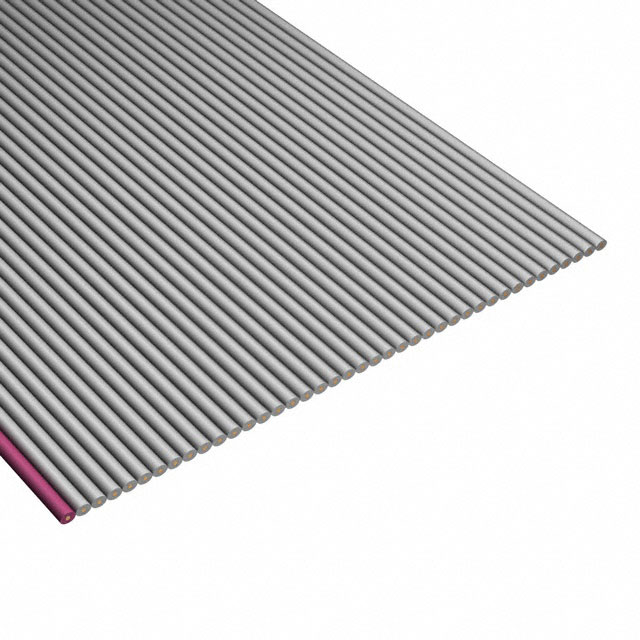

CNC Tech 302-28-40-GR-0250F	Copper Tinned	Red	100 MOhms	2 in	50.8 mm	3.05 m 7.62 m 76.2 m 304.8 mm	1 ft 10 ft 25 ft 250 ft	40	28 AWG	UL Style 2651	105 C	Flat Cable	0.05 in	1.27 mm	36 AWG	7 Strands	300 VDC	0.89 mm	0.035 in	Gray	Unshielded	Poly-Vinyl Chloride (PVC)	50 ft	15.24 m	Enter Number of Feet in Order Quantity
CNC Tech 302-28-50-GR-0300F	Copper Tinned	Red	100 MOhms	2.5 in	63.5 mm	91440 mm	3600 in	50	28 AWG	UL Style 2651	105 C	Flat Cable	0.05 in	1.27 mm	36 AWG	7 Strands	300 VDC	0.89 mm	0.035 in	Gray	Unshielded	Poly-Vinyl Chloride (PVC)
CNC Tech 302-28-10-GR-0100F	Copper Tinned	Red	100 MOhms	0.5 in	12.7 mm	30.48 m	100 '		28 AWG	UL Style 2651	105 C	Flat Cable	0.05 in	1.27 mm	36 AWG	7 Strands	300 VDC	0.89 mm	0.035 in	Gray	Unshielded	Poly-Vinyl Chloride (PVC)				10
CNC Tech 302-28-06-GR-0300F	Copper Tinned	Red	100 MOhms			91440 mm	3600 in	6	28 AWG	UL Style 2651	105 C	Flat Cable	0.05 in	1.27 mm	36 AWG	7 Strands	300 VDC	0.89 mm	0.035 in	Gray	Unshielded	Poly-Vinyl Chloride (PVC)

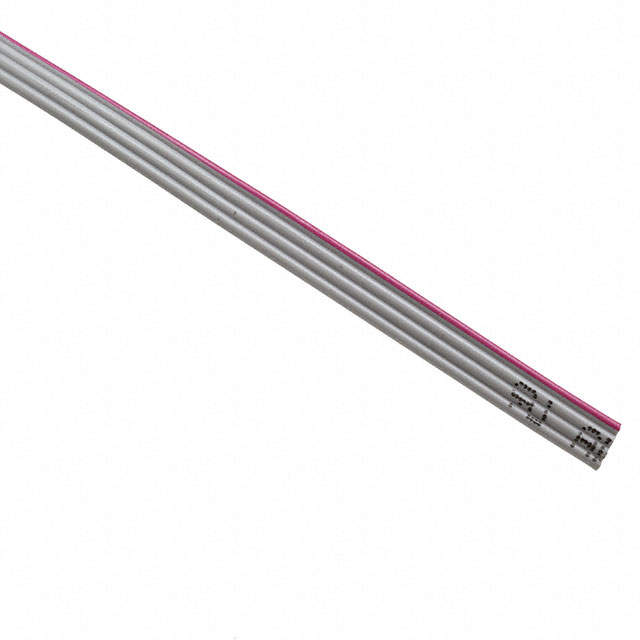

CNC Tech 302-28-04-GR-0100F	Copper Tinned	Red	100 MOhms			30.48 m	100 '	4	28 AWG	UL Style 2651	105 C	Flat Cable	0.05 in	1.27 mm	36 AWG	7 Strands	300 VDC	0.89 mm	0.035 in	Gray	Unshielded	Poly-Vinyl Chloride (PVC)

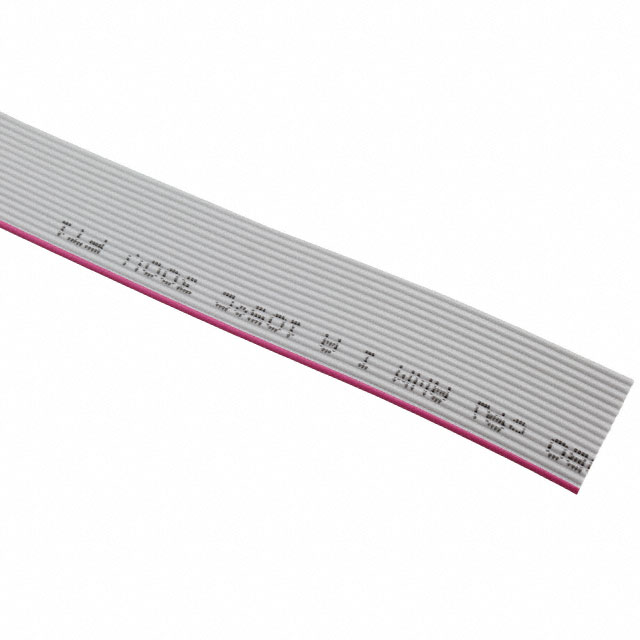

CNC Tech 302-28-15-GR-0100F	Copper Tinned	Red	100 MOhms	0.75 in	19.05 mm	30.48 m	100 '	15	28 AWG	UL Style 2651	105 C	Flat Cable	0.05 in	1.27 mm	36 AWG	7 Strands	300 VDC	0.89 mm	0.035 in	Gray	Unshielded	Poly-Vinyl Chloride (PVC)

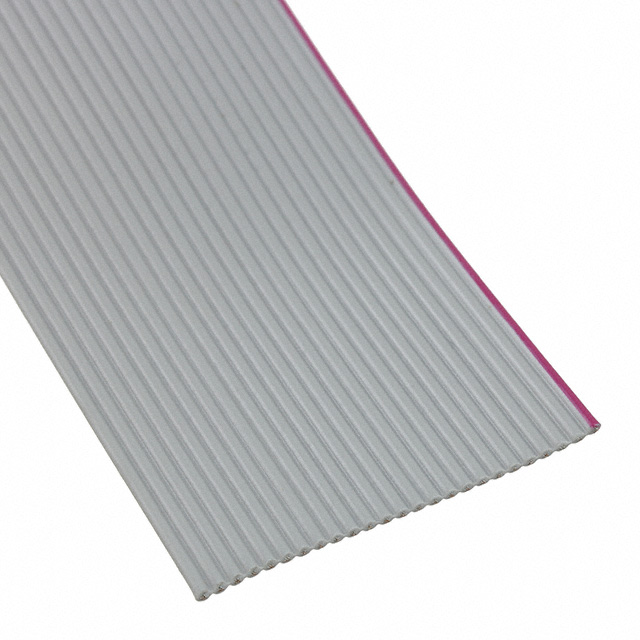

CNC Tech 302-28-25-GR-0300F	Copper Tinned	Red	100 MOhms	1.25 in	31.75 mm	91440 mm	3600 in		28 AWG	UL Style 2651	105 C	Flat Cable	0.05 in	1.27 mm	36 AWG	7 Strands	300 VDC	0.89 mm	0.035 in	Gray	Unshielded	Poly-Vinyl Chloride (PVC)					25
CNC Tech 302-28-10-GR-0250F	Copper Tinned	Red	100 MOhms	0.5 in	12.7 mm	3.05 m 7.62 m 76.2 m 304.8 mm	1 ft 10 ft 25 ft 250 ft		28 AWG	UL Style 2651	105 C	Flat Cable	0.05 in	1.27 mm	36 AWG	7 Strands	300 VDC	0.89 mm	0.035 in	Gray	Unshielded	Poly-Vinyl Chloride (PVC)	50 ft	15.24 m	Enter Number of Feet in Order Quantity	10
CNC Tech 302-28-26-GR-0100F	Copper Tinned	Red	100 MOhms	1.3 in	33.02 mm	30.48 m	100 '	26	28 AWG	UL Style 2651	105 C	Flat Cable	0.05 in	1.27 mm	36 AWG	7 Strands	300 VDC	0.89 mm	0.035 in	Gray	Unshielded	Poly-Vinyl Chloride (PVC)
