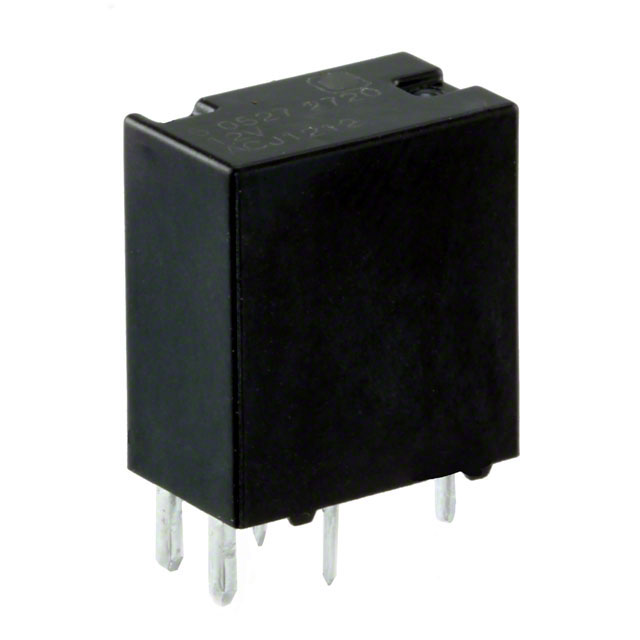

ACJ121 Series
Manufacturer: Panasonic Electronic Components
Beta
⌘K
AUTOMOTIVE RELAY, SPDT, 12VDC, 20A, THT ROHS COMPLIANT: YES
| Part | Contact Material | Coil Resistance | Coil Power | Release Time | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Switching Voltage | Contact Rating (Current) | Mounting Type | Features | Contact Form | Coil Current | Operate Time | Coil Voltage | Must Release Voltage | Must Operate Voltage | Coil Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electronic Components | Silver Alloy Cadmium Free | 225 Ohms | 640 mW | 10 ms | PC Pin | 85 °C | -40 C | 14 VDC | 20 A | Through Hole | Sealed - Fully | SPDT (1 Form C) | 53.3 mA | 10 ms | 12 VDC | 1 VDC | 7.2 VDC | Non Latching |
