008222 Series

Manufacturer: Molex

Catalog

CBL RIBN 36COND 0.1 GRAY 100'

Part	Conductor Material	First Conductor Mark	Conductor Strand	Jacket Color	Operating Temperature [Min]	Operating Temperature [Max]	Pitch	Pitch	Shielding	Cable Type	Jacket (Insulation) Material	Ribbon Width [custom]	Ribbon Width [custom]	Wire Gauge	Ribbon Thickness	Ribbon Thickness	Ratings	Number of Conductors	Voltage	Length	Length	Insulation Resistance	Conductor Strand [custom]	Conductor Strand [custom]	Features
Molex 0082226036	Copper Topcoat	Black	7 Strands 30 AWG	Gray	-20 ░C	105 ░C	0.1 "	2.54 mm	Unshielded	Flat Cable	Poly-Vinyl Chloride (PVC)	91.44 mm	3.6 in	22 AWG	1.37 mm	0.054 in	UL E61522	36	300 VDC	100 '	30.48 m

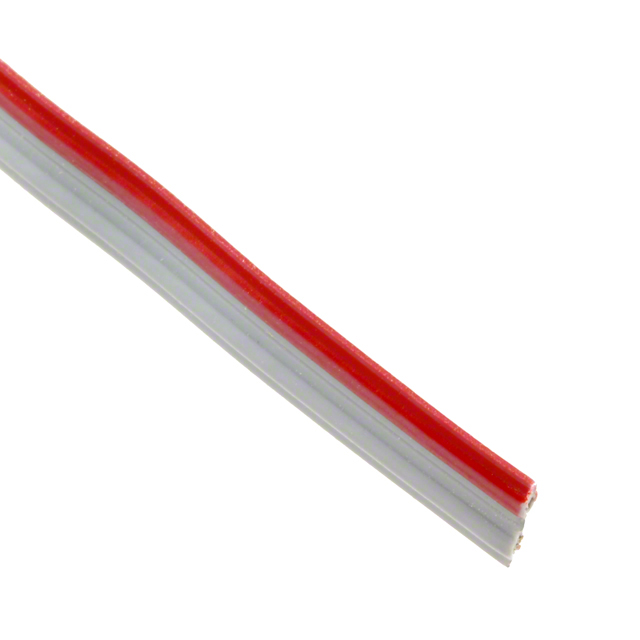

Molex 0082226102	Copper Tinned	Red		Gray	-20 ░C	105 ░C	0.1 "	2.54 mm	Unshielded	Flat Cable	Poly-Vinyl Chloride (PVC)	5.08 mm	0.2 in	22 AWG			UL Style 2651	2	300 VDC	100 '	30.48 m	10 MOhms	36 AWG	7 Strands	Zippable

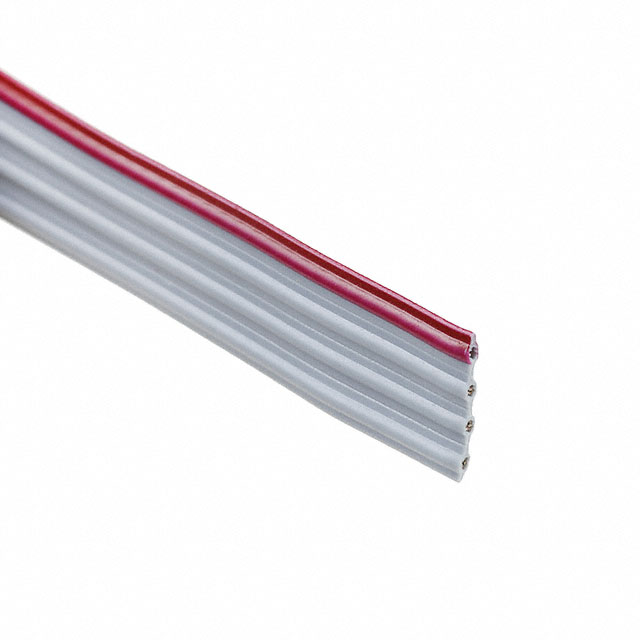

Molex 0082226104	Copper Tinned	Red		Gray	-20 ░C	105 ░C	0.1 "	2.54 mm	Unshielded	Flat Cable	Poly-Vinyl Chloride (PVC)	7.62 mm	0.3 in	22 AWG			UL Style 2651	4	300 VDC	100 '	30.48 m	10 MOhms	36 AWG	7 Strands	Zippable
Molex 0082226014	Copper Topcoat	Black	7 Strands 30 AWG	Gray	-20 ░C	105 ░C	0.1 "	2.54 mm	Unshielded	Flat Cable	Poly-Vinyl Chloride (PVC)	35.55 mm	1.4 in	22 AWG	1.37 mm	0.054 in	UL E61522	14	300 VDC	100 '	30.48 m
Molex 0082225807	Copper Tinned	Black	7 Strands 30 AWG	Gray	-20 ░C	105 ░C	0.156 in	3.96 mm	Unshielded	Flat Cable	Poly-Vinyl Chloride (PVC)	27.74 mm	1.092 in	22 AWG	1.37 mm	0.054 in	UL E61522	7	300 VDC	100 '	30.48 m
Molex 0082225916	Copper Topcoat	Black	7 Strands 30 AWG	Gray	-20 ░C	105 ░C	0.156 in	3.96 mm	Unshielded	Flat Cable	Poly-Vinyl Chloride (PVC)	63.39 mm	2.496 in	22 AWG	1.37 mm	0.054 in	UL E61522	16	300 VDC	100 '	30.48 m
Molex 0082226105	Copper Tinned	Red	7 Strands 30 AWG	Gray	-20 ░C	105 ░C	0.1 "	2.54 mm	Unshielded	Flat Cable	Poly-Vinyl Chloride (PVC)	12.7 mm	0.5 in	22 AWG			UL Style 2651	5	300 VDC	100 '	30.48 m	10 MOhms			Zippable
Molex 0082226021	Copper Topcoat	Black	7 Strands 30 AWG	Gray	-20 ░C	105 ░C	0.1 "	2.54 mm	Unshielded	Flat Cable	Poly-Vinyl Chloride (PVC)	53.34 mm	2.1 in	22 AWG	1.37 mm	0.054 in	UL E61522	21	300 VDC	100 '	30.48 m
Molex 0082226005	Copper Topcoat	Black	7 Strands 30 AWG	Gray	-20 ░C	105 ░C	0.1 "	2.54 mm	Unshielded	Flat Cable	Poly-Vinyl Chloride (PVC)	12.7 mm	0.5 in	22 AWG	1.37 mm	0.054 in	UL E61522	5	300 VDC	100 '	30.48 m
Molex 0082225902	Copper Topcoat	Black	7 Strands 30 AWG	Gray	-20 ░C	105 ░C	0.156 in	3.96 mm	Unshielded	Flat Cable	Poly-Vinyl Chloride (PVC)	7.92 mm	0.312 in	22 AWG	1.37 mm	0.054 in	UL E61522	2	300 VDC	100 '	30.48 m
