NEMA11 Series

Catalog

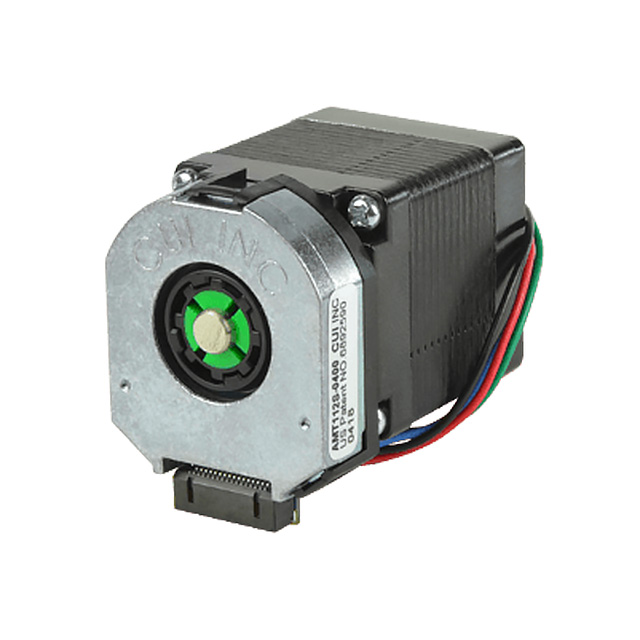

STEPPER MOTOR W/ INCREMENTAL ENC

Part	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]	Coil Resistance	Mounting Hole Spacing [custom]	Mounting Hole Spacing [custom]	Coil Type	Current Rating (Amps)	Step Angle	Voltage - Rated [Min]	Voltage - Rated [Max]	Torque - Holding (oz-in / mNm)	Torque - Holding (oz-in / mNm)	Operating Temperature [Min]	Operating Temperature [Max]	Features	Accuracy	NEMA Frame Size	Termination Style	Steps per Revolution	Size / Dimension	Size / Dimension	Size / Dimension	Length - Shaft and Bearing [x]	Length - Shaft and Bearing [x]	Rotor Inertia	Approval Agency	Torque - Holding (oz-in / mNm)
Same Sky (Formerly CUI Devices) NEMA11-20-02D-AMT112S	0.197 in	5 mm	1.9 Ohms	23.1 mm	0.909 in	Bipolar	1.3 A	1.8 °	24 VDC	48 V	16.6 oz-in	117.22 mNm	-20 ░C	50 °C	Integrated Encoder	0.2 %	11	Connector	200	1.11 in	28.2 mm	Square	0.791 in	20.1 mm
Same Sky (Formerly CUI Devices) NEMA11-18-01D-AMT112S	0.197 in	5 mm	7.1 Ohms	23.1 mm	0.909 in	Bipolar	0.67 A	1.8 °	24 VDC	48 V	96.74 mNm		-20 ░C	50 °C	Integrated Encoder	0.2 %	11	Connector	200	1.11 in	28.2 mm	Square	0.791 in	20.1 mm	0.44 gcm˛	CE	13.7 oz-in
Same Sky (Formerly CUI Devices) NEMA11-18-01D-AMT112S	0.197 in	5 mm	7.1 Ohms	23.1 mm	0.909 in	Bipolar	0.67 A	1.8 °	24 VDC	48 V	96.74 mNm		-20 ░C	50 °C	Integrated Encoder	0.2 %	11	Connector	200	1.11 in	28.2 mm	Square	0.791 in	20.1 mm			13.7 oz-in
Same Sky (Formerly CUI Devices) NEMA11-20-02D-AMT112S	0.197 in	5 mm	1.9 Ohms	23.1 mm	0.909 in	Bipolar	1.3 A	1.8 °	24 VDC	48 V	16.6 oz-in	117.22 mNm	-20 ░C	50 °C	Integrated Encoder	0.2 %	11	Connector	200	1.11 in	28.2 mm	Square	0.791 in	20.1 mm	7.2 gcm²	CE
