1004795 Series

Catalog

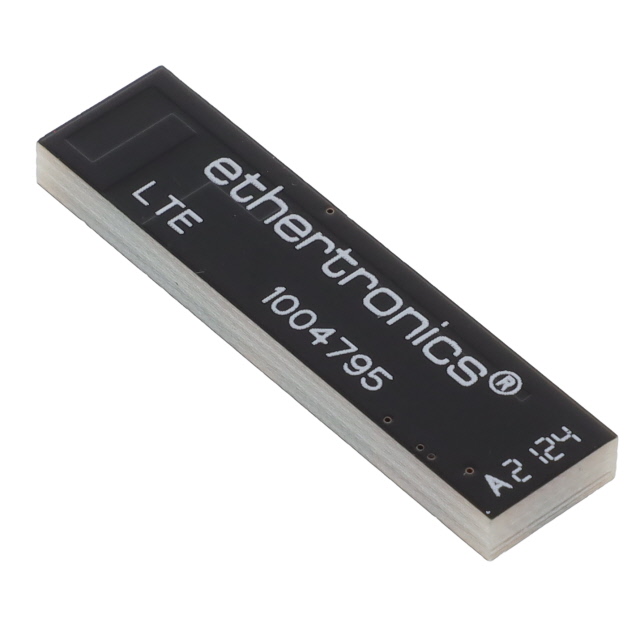

ANTENNA PCB, LTE J1381

Part	Mounting Type	Gain	Frequency Group	Applications	Power - Max [Max]	Number of Bands	Frequency (Center/Band)	VSWR	Termination	RF Family/Standard	Height (Max) [z]	Height (Max) [z]	Frequency Range [Max]	Frequency Range [Min]	Antenna Type
KYOCERA AVX 1004795	Surface Mount	1.5 dBi 1.6 dBi 1.7 dBi 3.1 dBi	Wide Band	LoRa LPWAN LTE Sigfox	2 W	9	1.8 GHz 1.9 GHz 2.1 GHz 2.7 GHz 600 MHz 700 MHz 750 MHz 850 MHz 900 MHz	2.5 3	Solder	802.15.4 Cellular	3.2 mm	0.126 in	2.2 GHz 2.7 GHz 698 MHz 960 MHz	1.71 GHz 2.5 GHz 600 MHz 698 MHz	Chip
