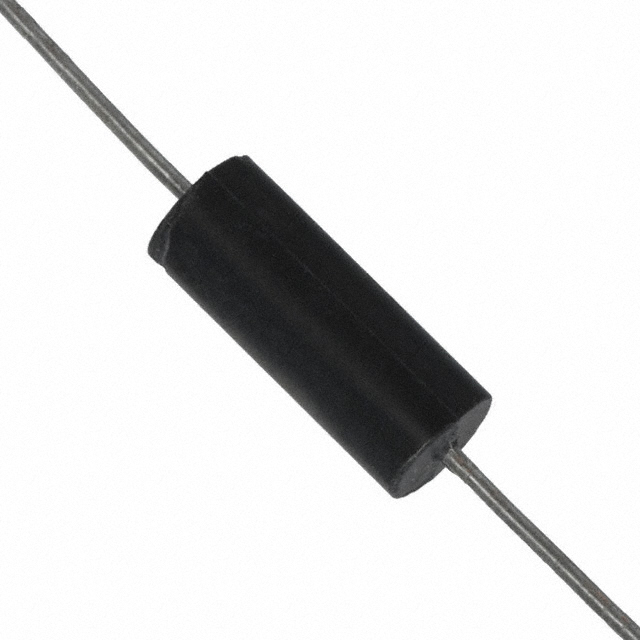

9250 Series

Catalog

FIXED IND 5.6MH 28MA 98.9 OHM TH

Part	Inductance	Operating Temperature [Min]	Operating Temperature [Max]	Current - Saturation (Isat)	Frequency - Self Resonant	Tolerance	Inductance Frequency - Test	DC Resistance (DCR) [Max]	Package / Case	Size / Dimension [x]	Size / Dimension [diameter]	Mounting Type	Q @ Freq [custom]	Q @ Freq [custom]	Type	Current Rating (Amps)	Shielding	Material - Core	Q @ Freq	DC Resistance (DCR)
Bourns Inc. 9250-565	5.6 mH	-55 C	105 ░C	17 mA	730 kHz	10 %	250 kHz	98.9 Ohm	Axial	0.41 " 10.41 mm	0.162 in 4.11 mm	Through Hole	250 kHz	44	Drum Core Wirewound	0.028 A	Shielded	Ferrite
Bourns Inc. 9250-473-RC	47 µH	-55 C	105 ░C	175 mA	27 MHz	10 %	2.5 MHz		Axial	0.41 " 10.41 mm	0.162 in 4.11 mm	Through Hole			Drum Core Wirewound	195 mA	Shielded	Ferrite	2.5 MHz 50	2.11 Ohm
Bourns Inc. 9250-121	120 nH	-55 C	105 ░C	1.53 A	250 MHz	10 %	25 MHz	34 mOhm	Axial	0.41 " 10.41 mm	0.162 in 4.11 mm	Through Hole			Drum Core Wirewound	1.53 A	Shielded	Ferrite	25 MHz 51
Bourns Inc. 9250-822-RC	8.2 µH	-55 C	105 ░C	250 mA	50 MHz	10 %	7.9 MHz	1.32 Ohm	Axial	0.41 " 10.41 mm	0.162 in 4.11 mm	Through Hole			Drum Core Wirewound	0.25 A	Shielded	Ferrite	7.9 MHz 50
Bourns Inc. 9250-275	2.7 mH	-55 C	105 ░C	25 mA	920 kHz	10 %	250 kHz	47.3 Ohm	Axial	0.41 " 10.41 mm	0.162 in 4.11 mm	Through Hole			Drum Core Wirewound	40 mA	Shielded	Ferrite	45 250 kHz
Bourns Inc. 9250-104	100 µH	-55 C	105 ░C	120 mA	10 MHz	10 %	2.5 MHz	3.12 Ohm	Axial	0.41 " 10.41 mm	0.162 in 4.11 mm	Through Hole			Drum Core Wirewound	160 mA	Shielded	Ferrite	2.5 MHz 50
Bourns Inc. 9250-181	180 nH	-55 C	105 ░C	1.3 A	250 MHz	10 %	25 MHz	47 mOhm	Axial	0.41 " 10.41 mm	0.162 in 4.11 mm	Through Hole			Drum Core Wirewound	1.3 A	Shielded	Ferrite	25 MHz 50
Bourns Inc. 9250-102	1 µH	-55 C	105 ░C	1.07 A	140 MHz	10 %	25 MHz		Axial	0.41 " 10.41 mm	0.162 in 4.11 mm	Through Hole			Drum Core Wirewound	1.07 A	Shielded	Ferrite	44	70 mOhm
Bourns Inc. 9250-183-RC	18 µH	-55 C	105 ░C	235 mA	45 MHz	10 %	2.5 MHz	890 mOhm	Axial	0.41 " 10.41 mm	0.162 in 4.11 mm	Through Hole			Drum Core Wirewound	0.3 A	Shielded	Ferrite	2.5 MHz 45
Bourns Inc. 9250-224	220 µH	-55 C	105 ░C	80 mA	7.5 MHz	10 %	790 kHz	5 Ohm	Axial	0.41 " 10.41 mm	0.162 in 4.11 mm	Through Hole			Drum Core Wirewound	0.125 Amps	Shielded	Ferrite
