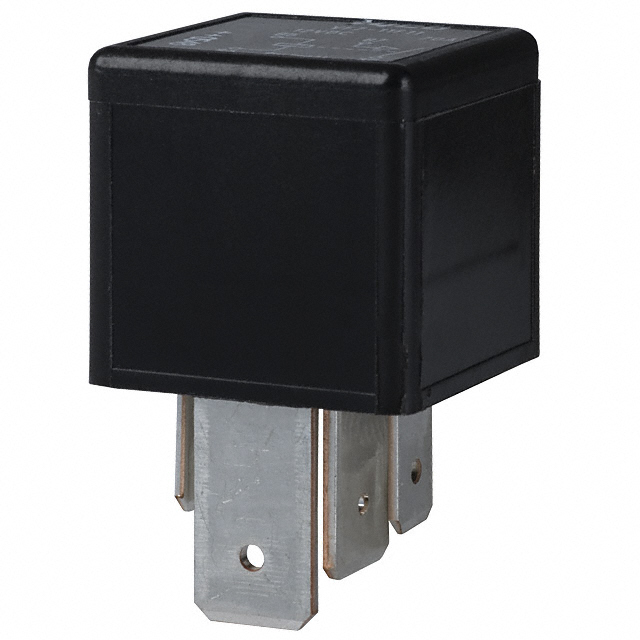

VF7 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
RELAY AUTOMOTIVE SPST 70A 24V
| Part | Contact Material | Coil Power | Coil Resistance | Contact Rating (Current) | Release Time | Must Operate Voltage | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Must Release Voltage | Coil Type | Switching Voltage | Coil Current | Operate Time | Coil Voltage | Contact Form | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Silver Nickel (AgNi) | 2 W | 288 Ohms | 70 A | 2 ms | 14.4 VDC | PC Pin | 125 °C | -40 C | 2.4 VDC | Non Latching | 14 VDC | 83.3 mA | 7 ms | 24 VDC | SPST-NO (1 Form A) | Through Hole |
 TE Connectivity AMP Connectors | Silver Nickel (AgNi) | 1.6 W | 90 Ohms | 70 A | 2 ms | 7.2 VDC | PC Pin | 125 °C | -40 C | 1.2 VDC | Non Latching | 14 VDC | 167 mA | 7 ms | 12 VDC | SPST-NO (1 Form A) | Through Hole |
 TE Connectivity AMP Connectors | Silver Nickel (AgNi) | 1.6 W | 90 Ohms | 70 A | 2 ms | 7.2 VDC | Plug In Quick Connect - 0.250" (6.3mm) | 125 °C | -40 C | 1.2 VDC | Non Latching | 14 VDC | 167 mA | 7 ms | 12 VDC | SPST-NO (1 Form A) | Socketable |
