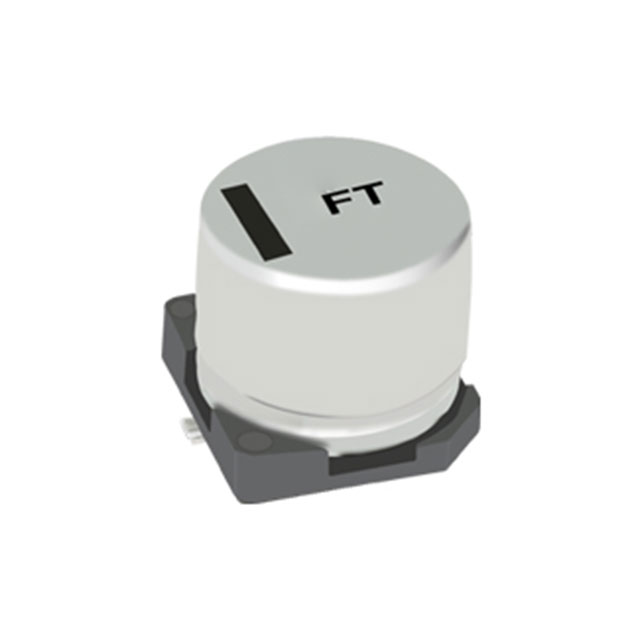

EEE-FTE Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

SMD ALUMINUM ELECTROLYTIC CAPACITOR, RADIAL CAN - SMD, 150 ΜF, 25 V, 0.16 OHM, 2000 HOURS @ 105°C

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Ratings	Capacitance	Polarization	Lifetime @ Temp.	Tolerance	ESR (Equivalent Series Resistance)	Voltage - Rated	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Ripple Current @ Low Frequency	Package / Case	Mounting Type	Size / Dimension [diameter]	Size / Dimension [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Ripple Current @ High Frequency	Applications
Panasonic Industrial Automation Sales EEE-FTE151XAV	8.3 mm	0.327 in	AEC-Q200	150 µF	Polar	2000 Hrs	20 %	160 mOhm	25 VDC	0.26 in	6.6 mm	6.6 mm	0.26 in	390 mA	Radial Can - SMD	Surface Mount	0.248 in	6.3 mm	105 ░C	-55 °C	600 mA	Automotive High Temperature Reflow
Panasonic Industrial Automation Sales EEE-FTE221XAL	8 mm	0.315 in	AEC-Q200	220 µF	Polar	2000 Hrs	20 %	160 mOhm	25 VDC	0.26 in	6.6 mm	6.6 mm	0.26 in	390 mA	Radial Can - SMD	Surface Mount	0.248 in	6.3 mm	105 ░C	-55 °C	600 mA	Automotive
Panasonic Industrial Automation Sales EEE-FTE151XAL	8 mm	0.315 in	AEC-Q200	150 µF	Polar	2000 Hrs	20 %	160 mOhm	25 VDC	0.26 in	6.6 mm	6.6 mm	0.26 in	390 mA	Radial Can - SMD	Surface Mount	0.248 in	6.3 mm	105 ░C	-55 °C	600 mA	Automotive
Panasonic Industrial Automation Sales EEE-FTE221XAV	8.3 mm	0.327 in	AEC-Q200	220 µF	Polar	2000 Hrs	20 %	160 mOhm	25 VDC	0.26 in	6.6 mm	6.6 mm	0.26 in	390 mA	Radial Can - SMD	Surface Mount	0.248 in	6.3 mm	105 ░C	-55 °C	600 mA	Automotive High Temperature Reflow
Panasonic Industrial Automation Sales EEE-FTE151XAP	8 mm	0.315 in	AEC-Q200	150 µF	Polar	2000 Hrs	20 %	160 mOhm	25 VDC	0.26 in	6.6 mm	6.6 mm	0.26 in	390 mA	Radial Can - SMD	Surface Mount	0.248 in	6.3 mm	105 ░C	-55 °C	600 mA	Automotive
