29003 Series
Manufacturer: Phoenix Contact
Beta
⌘K

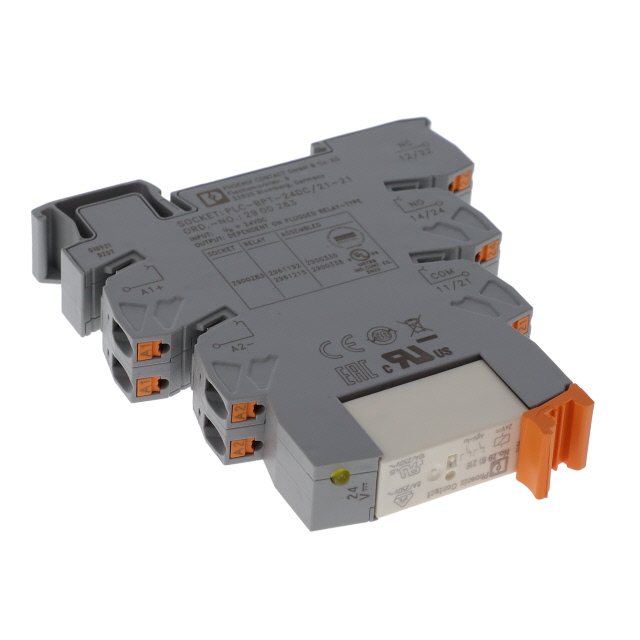

RELAY GEN PURPOSE DPDT 50MA 24V
| Part | Coil Resistance | Relay Type | Features | Coil Voltage | Approval Agency | Coil Current | Switching Voltage [Max] | Operate Time | Termination Style | Contact Rating (Current) | Contact Material | Contact Form | Mounting Type | Coil Type | Operating Temperature [Max] | Operating Temperature [Min] | Release Time | Switching Voltage | Coil Voltage | Coil Voltage | Coil Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Phoenix Contact | 1.33 kOhms | General Purpose | Diode Lighted Indicator Socket Included | 24 VDC | cULus DNV EAC UL | 18 mA | 30 VAC 36 VDC | 8 ms | Spring Terminal | 50 mA | Gold (Au) Silver Nickel (AgNi) | DPDT (2 Form C) | DIN Rail | Non Latching | 60 °C | -40 C | 10 ms | ||||
 Phoenix Contact | 364 Ohms | General Purpose | Diode Lighted Indicator Socket Included | 12 VDC | CE UKCA | 33 mA | 8 ms | Spring Terminal | 6 A | Silver Nickel (AgNi) | DPDT (2 Form C) | DIN Rail | Non Latching | 60 °C | -40 C | 10 ms | 250 VAC 250 VDC | ||||
 Phoenix Contact | 51.11 kOhms | General Purpose | Lighted Indicator Socket Included | CE UKCA | 4.5 mA | 7 ms | Spring Terminal | 6 A | Silver Nickel (AgNi) | DPDT (2 Form C) | DIN Rail | Non Latching | 55 °C | -40 C | 10 ms | 250 VAC 250 VDC | 230 VDC | 230 VAC | |||
 Phoenix Contact | 5217 Ohms | General Purpose | Lighted Indicator Socket Included | 48 VDC | CE UKCA | 9.2 mA | 5 ms | Spring Terminal | 6 A | Silver Tin Oxide (AgSnO) | SPDT (1 Form C) | DIN Rail | Non Latching | 60 °C | -40 C | 8 ms | 250 VAC 250 VDC | ||||
 Phoenix Contact | 24.44 kOhms | General Purpose | Diode Lighted Indicator Socket Included | 110 VDC | cULus DNV EAC UL | 4.5 mA | 30 VAC 36 VDC | 5 ms | Screw Terminal | 50 mA | Gold (Au) Silver Nickel (AgNi) | DPDT (2 Form C) | DIN Rail | Non Latching | 70 °C | -40 C | 11 ms | ||||
 Phoenix Contact | 34.29 kOhms | General Purpose | Lighted Indicator Socket Included | cULus DNV EAC UL | 3.5 mA | 30 VAC 36 VDC | 6 ms | Spring Terminal | 50 mA | Gold (Au) Silver Tin Oxide (AgSnO) | SPDT (1 Form C) | DIN Rail | Non Latching | 60 °C | -40 C | 15 ms | 120VAC/DC | ||||
 Phoenix Contact | 784.3 Ohms | General Purpose | Lighted Indicator Socket Included | 12 VDC | CE UKCA | 15.3 mA | 5 ms | Spring Terminal | 6 A | Silver Tin Oxide (AgSnO) | SPDT (1 Form C) | DIN Rail | Non Latching | 60 °C | -40 C | 8 ms | 250 VAC 250 VDC | ||||
 Phoenix Contact | 2.67 kOhms | General Purpose | Diode Lighted Indicator Socket Included | 24 VDC | CE UKCA | 9 mA | 4 ms | Spring Terminal | 6 A | Silver Tin Oxide (AgSnO) | SPDT (1 Form C) | DIN Rail | Non Latching | 70 °C | -40 C | 4 ms | 250 VAC 250 VDC | ||||
 Phoenix Contact | 24.44 kOhms | General Purpose | Diode Lighted Indicator Socket Included | 110 VDC | CE UKCA | 4.5 mA | 5 ms | Spring Terminal | 6 A | Silver Nickel (AgNi) | DPDT (2 Form C) | DIN Rail | Non Latching | 70 °C | -40 C | 11 ms | 250 VAC 250 VDC | ||||
 Phoenix Contact | 12 kOhms | General Purpose | Diode Lighted Indicator Socket Included | 72 VDC | cULus DNV EAC UL | 6 mA | 30 VAC 36 VDC | 5 ms | Screw Terminal | 50 mA | Gold (Au) Silver Nickel (AgNi) | DPDT (2 Form C) | DIN Rail | Non Latching | 70 °C | -40 C | 11 ms |
