3467C Series
Manufacturer: ALPHA WIRE
Beta
⌘K

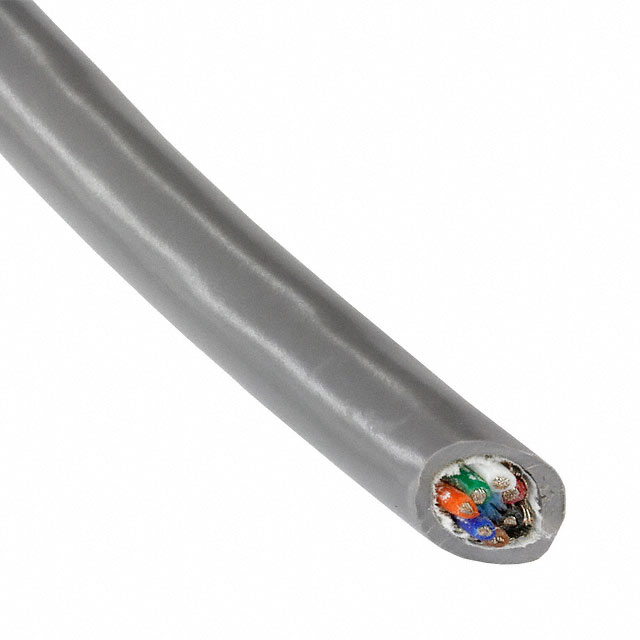

CABLE 7COND 28AWG SLATE SHLD
| Part | Cable Type | Length [x] | Length [x] | Conductor Strand [custom] | Conductor Strand [custom] | Number of Conductors | Conductor Insulation | Voltage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Shield Type | Operating Temperature [Min] | Operating Temperature [Max] | Usage | Jacket Color | Features | Shield Material | Wire Gauge | Jacket (Insulation) Material | Shield Coverage | Conductor Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Multi-Conductor | 500 ' | 152.4 m | 36 AWG | 7 | 7 | Poly-Vinyl Chloride (PVC) | 300 V | 0.889 mm | 0.035 in | Braid Foil | -20 C | 80 C | Communication Control | Slate | Drain Wire | Aluminum Copper Tinned | 28 AWG | Poly-Vinyl Chloride (PVC) | 65 % 100 % | Copper Tinned | 5.13 mm | 0.202 in |
