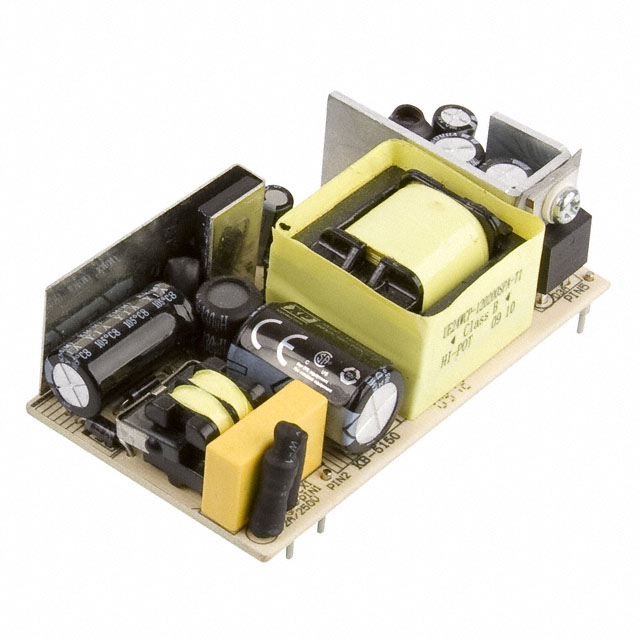

VCP24 Series
Manufacturer: XP Power
Beta
⌘K
AC/DC POWER MODULES AC/DC, 24W, PCB MOUNT, OPEN FRAME
| Part | Load Regulation | Line Regulation | Number of Outputs | Efficiency | Power (Watts) | Voltage - Output 1 | Mounting Type | Current - Output (Max) [Max] | Package / Case | Voltage - Input [Max] | Voltage - Input [Min] | Type | Applications | Operating Temperature [Max] | Operating Temperature [Min] | Standard Number | Features | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 XP Power | 2 % | 0.5 % | 1 | 81 % | 24 W | 15 V | Through Hole | 1.6 A | 5-DIP Module | 264 VAC | 90 VAC | Open Frame | ITE (Commercial) Medical | 70 °C | 0 °C | 60601-1 60950-1 | Universal Input | 24.8 mm | 1.64 " | 2.91 in | 41.6 mm | 73.8 mm | 0.98 in | cUL EN IEC |
XP Power | 2 % | 0.5 % | 1 | 24 W | 24 V | Through Hole | 1 A | 5-DIP Module | 264 VAC | 90 VAC | Open Frame | ITE (Commercial) Medical | 70 °C | 0 °C | 60601-1 60950-1 | Universal Input | 24.8 mm | 1.64 " | 2.91 in | 41.6 mm | 73.8 mm | 0.98 in | cUL EN IEC |
