BGA Series

Heat Sinks maxiGRIP BGA Heat Sink w/Attachment, Straight Fin, Black, T766, 35x35x14.5mm

Manufacturer: Advanced Thermal Solutions Inc.

Catalog

Heat Sinks maxiGRIP BGA Heat Sink w/Attachment, Straight Fin, Black, T766, 35x35x14.5mm

Part	Fin Height	Fin Height	Attachment Method	Shape	Material Finish	Type	Package Cooled	Material	Thermal Resistance @ Forced Air Flow	Width [x]	Width [x]	Length [x]	Length [x]	Length	Length	Fin Height [custom]	Fin Height [custom]	Width [y]	Width [y]	Width	Width
Advanced Thermal Solutions Inc. ATS-53210R-C1-R0	19.5 mm	0.768 in	Clip Thermal Material	Fins Square	Black Anodized	Top Mount	BGA	Aluminum	7.8 °C/W	0.827 in	21 mm	0.827 in	21 mm

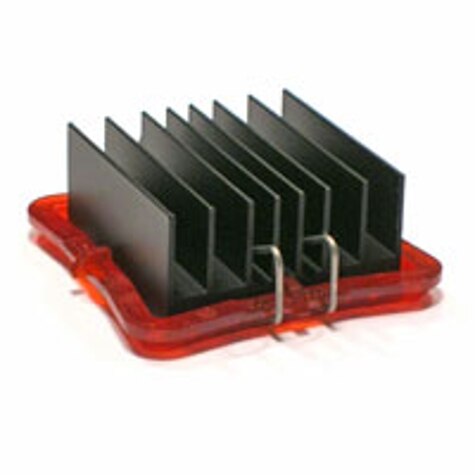

Advanced Thermal Solutions Inc. ATS-53300K-C1-R0			Clip Thermal Material	Fins Square	Black Anodized	Top Mount	BGA	Aluminum	6.9 °C/W	1.181 in	30 mm			0.03 m	1.181 in	0.571 in	14.5 mm

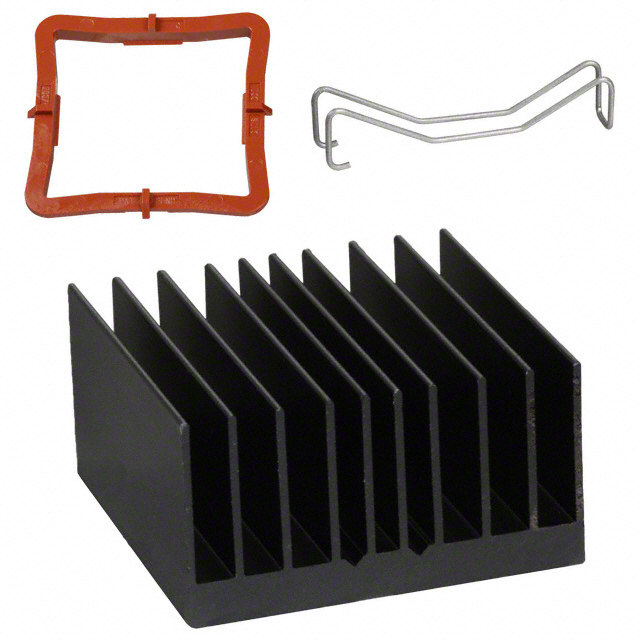

Advanced Thermal Solutions Inc. ATS-53375R-C1-R0	19.5 mm	0.768 in	Clip Thermal Material	Fins Square	Black Anodized	Top Mount	BGA	Aluminum	3.5 °C/W	1.476 in	37.5 mm			37.5 mm	1.476 in

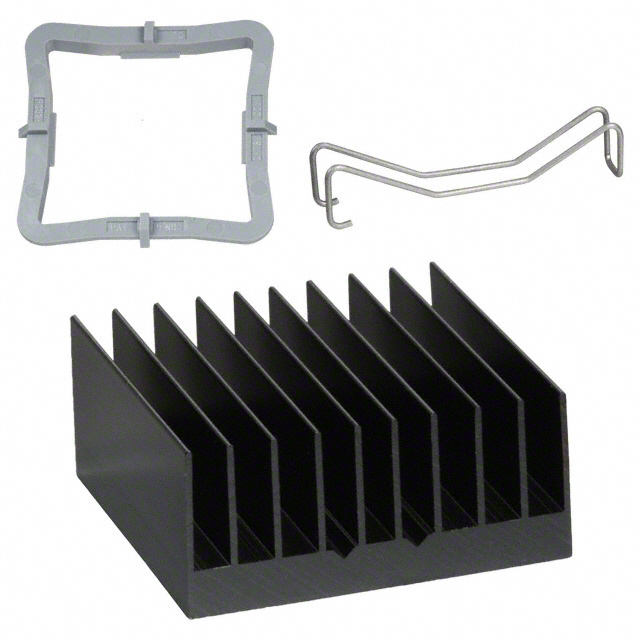

Advanced Thermal Solutions Inc. ATS-53325K-C1-R0			Clip Thermal Material	Fins Square	Black Anodized	Top Mount	BGA	Aluminum	5.9 °C/W			1.28 in		32.51 mm		0.571 in	14.5 mm	32.51 mm	1.28 in

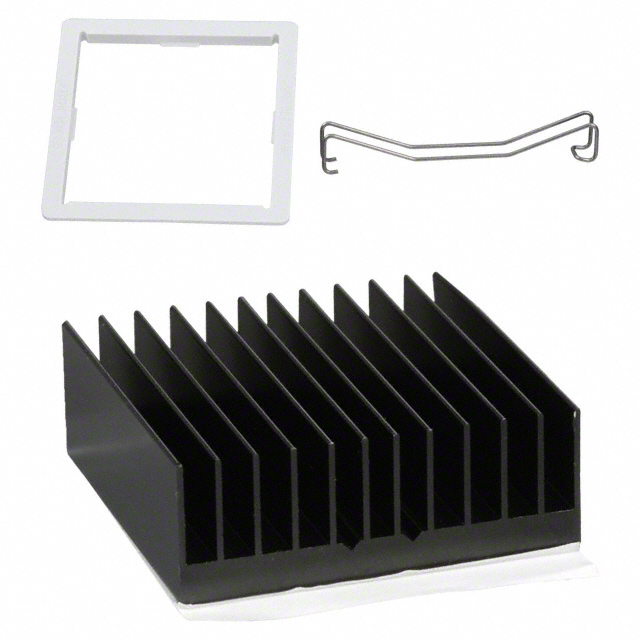

Advanced Thermal Solutions Inc. ATS-53425K-C1-R0			Clip Thermal Material	Fins Square	Black Anodized	Top Mount	BGA	Aluminum	4.3 °C/W					42.5 mm	1.673 in	0.571 in	14.5 mm

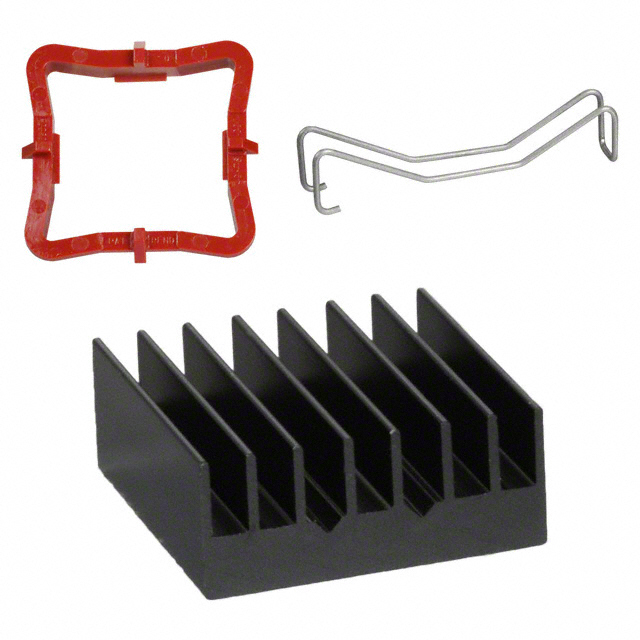

Advanced Thermal Solutions Inc. ATS-53230D-C1-R0	9.5 mm	0.374 in	Clip Thermal Material	Fins Square	Black Anodized	Top Mount	BGA	Aluminum	16.8 °C/W	0.906 in	23.01 mm	0.9 in	23 mm

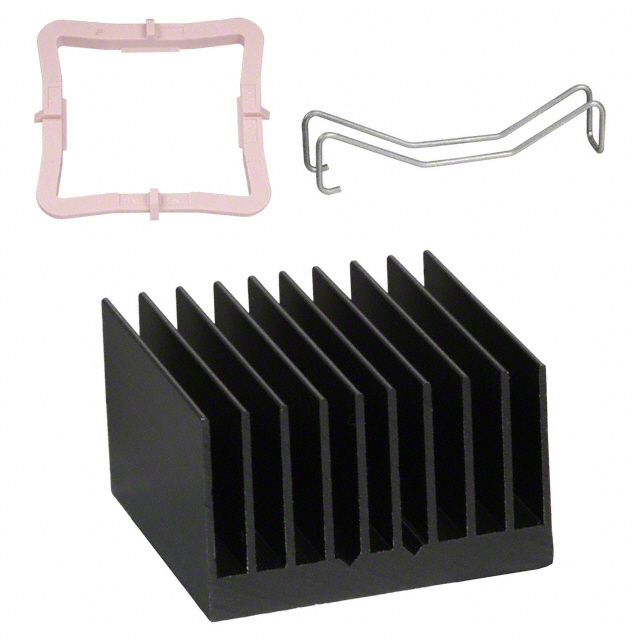

Advanced Thermal Solutions Inc. ATS-53330R-C1-R0	19.5 mm	0.768 in	Clip Thermal Material	Fins Square	Black Anodized	Top Mount	BGA	Aluminum	4.1 °C/W					32.99 mm	1.299 in					1.299 in	32.99 mm

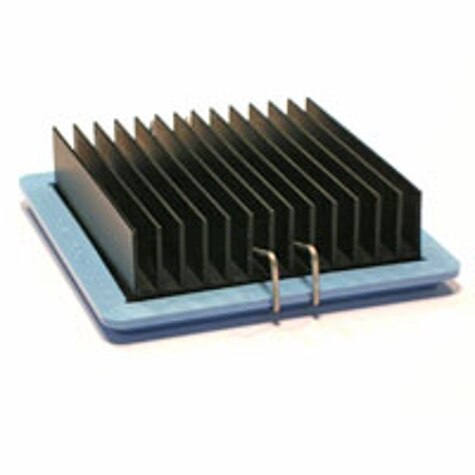

Advanced Thermal Solutions Inc. ATS-53450K-C1-R0			Clip Thermal Material	Fins Square	Black Anodized	Top Mount	BGA	Aluminum	4.1 °C/W			1.772 in	45 mm			0.571 in	14.5 mm			1.772 in	45 mm
Advanced Thermal Solutions Inc. ATS-53400R-C1-R0	19.5 mm	0.768 in	Clip Thermal Material	Fins Square	Black Anodized	Top Mount	BGA	Aluminum	3.2 °C/W									40 mm	1.575 in
Advanced Thermal Solutions Inc. ATS-53170R-C1-R0	19.5 mm	0.768 in	Clip Thermal Material	Fins Square	Black Anodized	Top Mount	BGA	Aluminum	9.3 °C/W	0.669 in	17 mm			17 mm	0.669 in
