316-043 Series
Manufacturer: EDAC Inc.
Beta
⌘K

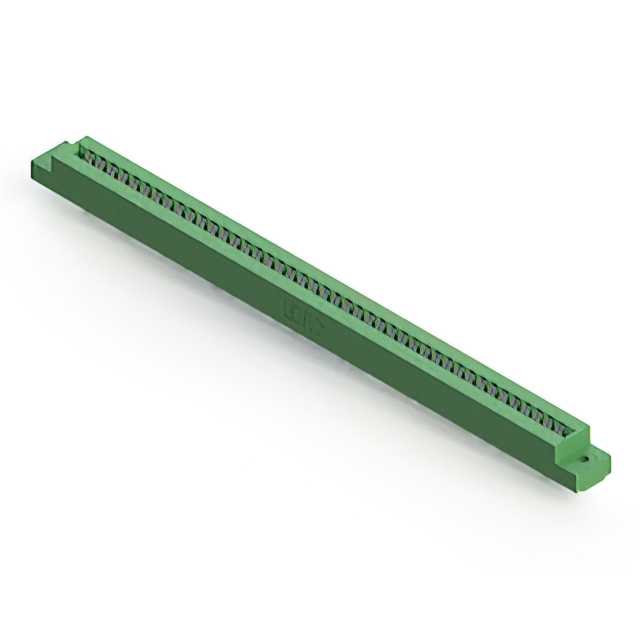

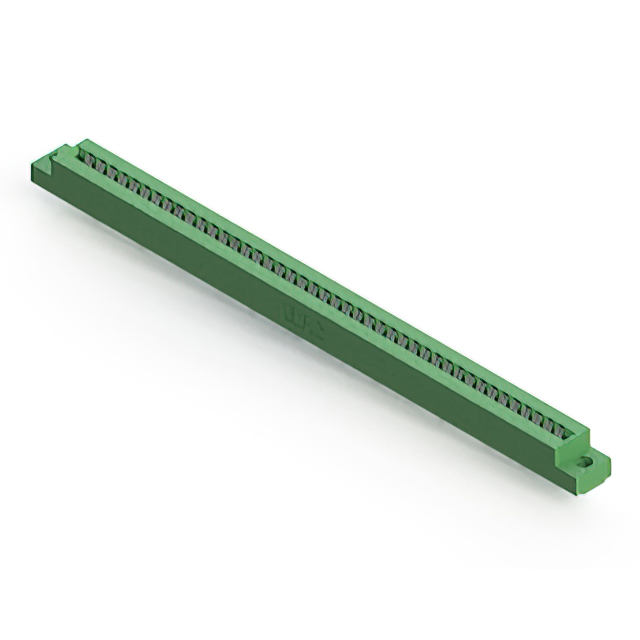

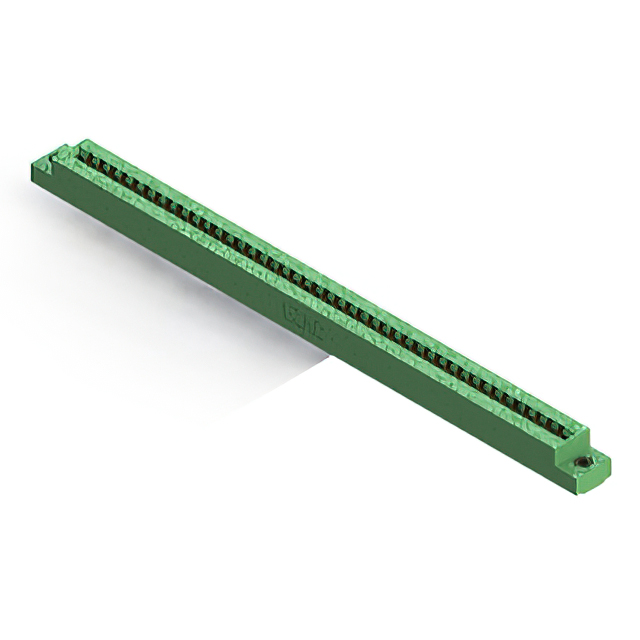

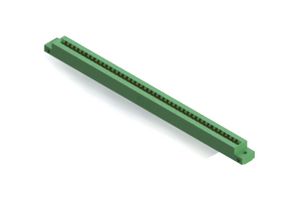

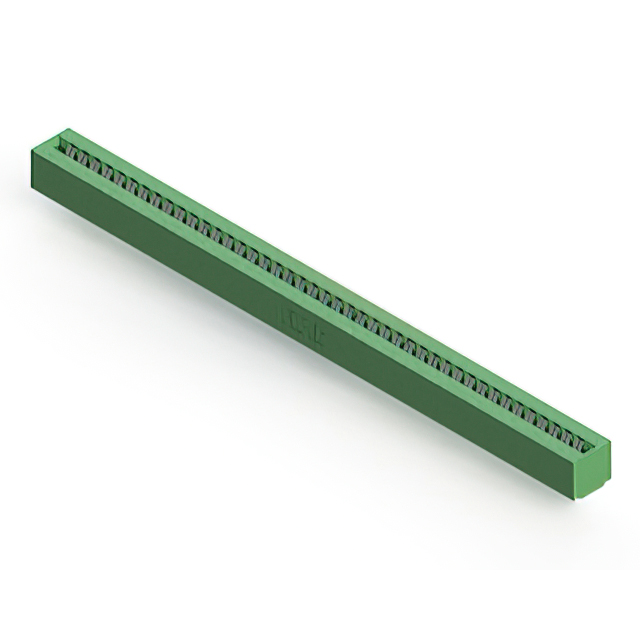

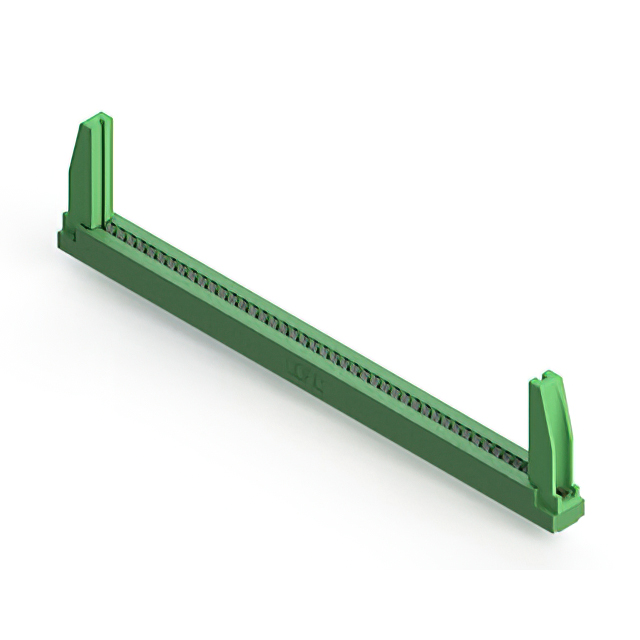

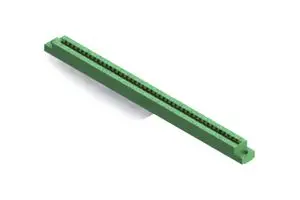

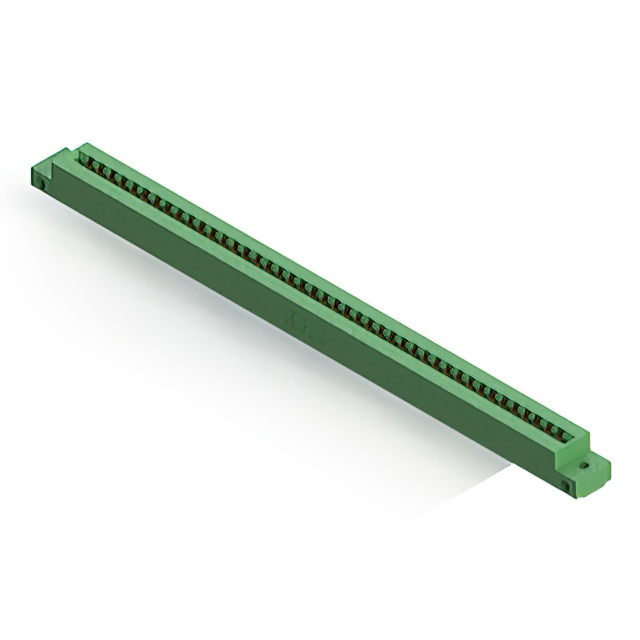

CONN EDGE DUAL FMALE 86POS 0.156
| Part | Material - Insulation | Termination Rows | Contact Finish | Number of Rows [custom] | Contact Material | Color | Termination | Number of Positions | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Card Type | Pitch | Pitch | Number of Positions/Bay/Row | Operating Temperature [Min] | Operating Temperature [Max] | Card Thickness [Max] | Card Thickness [Min] | Mounting Type | Contact Type | Gender | Read Out | Features | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 1 | Tin | 2 | Copper Alloy | Green | Solder | 86 | 0.116 " | Floating Bobbin Flush Mount | 2.95 mm | Non Specified - Dual Edge | 3.96 mm | 0.156 in | 43 | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Panel Mount Through Hole | Cantilever | Female | Dual | |||
 EDAC Inc. | Polyester Thermoplastic | 1 | Tin | 2 | Copper Alloy | Green | Solder | 86 | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Dual Edge | 3.96 mm | 0.156 in | 43 | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Panel Mount Through Hole | Cantilever | Female | Dual | Card Guides | ||||
 EDAC Inc. | Polyester Thermoplastic | 1 | Gold | 2 | Copper Alloy | Green | Solder | 86 | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Dual Edge | 3.96 mm | 0.156 in | 43 | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Panel Mount Through Hole | Cantilever | Female | Dual | Card Guides | 0.25 Ám | 10 Áin | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | Tin | 2 | Copper Alloy | Green | Solder | 86 | 0.156 " | Flush Mount Top Opening Unthreaded | 3.96 mm | Non Specified - Dual Edge | 3.96 mm | 0.156 in | 43 | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Panel Mount Through Hole | Cantilever | Female | Dual | |||
 EDAC Inc. | Polyester Thermoplastic | 1 | Tin | 2 | Copper Alloy | Green | Solder Eyelet(s) | 86 | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | Non Specified - Dual Edge | 3.96 mm | 0.156 in | 43 | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Panel Mount | Cantilever | Female | Dual | |||
 EDAC Inc. | Polyester Thermoplastic | 1 | Tin | 2 | Copper Alloy | Green | Solder | 86 | Non Specified - Dual Edge | 3.96 mm | 0.156 in | 43 | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | Cantilever | Female | Dual | ||||||
 EDAC Inc. | Polyester Thermoplastic | 1 | Gold | 2 | Copper Alloy | Green | Solder | 86 | 0.156 " | Flush Mount Top Opening Unthreaded | 3.96 mm | Non Specified - Dual Edge | 3.96 mm | 0.156 in | 43 | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | Cantilever | Female | Dual | 0.25 Ám | 10 Áin | |
 EDAC Inc. | Polyester Thermoplastic | 1 | Tin | 2 | Copper Alloy | Green | Solder Eyelet(s) | 86 | 0.156 " | Flush Mount Top Opening Unthreaded | 3.96 mm | Non Specified - Dual Edge | 3.96 mm | 0.156 in | 43 | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Panel Mount | Cantilever | Female | Dual | |||
 EDAC Inc. | Polyester Thermoplastic | 1 | Gold | 2 | Copper Alloy | Green | Solder | 86 | Flush Mount M3 Threaded Insert Top Opening | Non Specified - Dual Edge | 3.96 mm | 0.156 in | 43 | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | Cantilever | Female | Dual | 0.25 Ám | 10 Áin | |||
 EDAC Inc. | Polyester Thermoplastic | 1 | Gold | 2 | Copper Alloy | Green | Solder | 86 | 0.128 " | Flush Mount Side Opening Unthreaded | 3.25 mm | Non Specified - Dual Edge | 3.96 mm | 0.156 in | 43 | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Panel Mount Through Hole | Cantilever | Female | Dual | 0.25 Ám | 10 Áin |
