829559 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

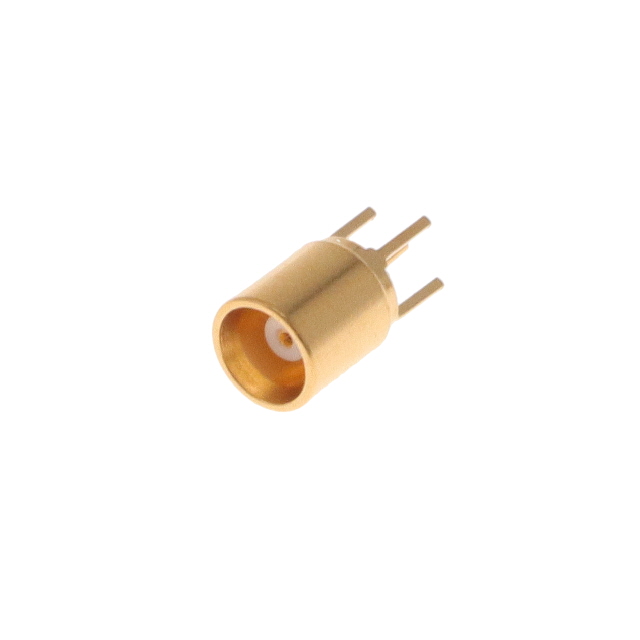

CONN MCX JACK STR 50 OHM PCB
| Part | Body Material | Insertion Loss | Voltage Rating | Center Contact Plating | Center Contact Material | Mating Cycles | Dielectric Material | Body Finish | Operating Temperature [Min] | Operating Temperature [Max] | Contact Termination | Connector Type | Mounting Type | Shield Termination | Number of Ports | Housing Color | Connector Style | Impedance | Frequency - Max [Max] | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Copper Alloy | 0.1 dB | 335 V | Gold | Beryllium Copper Phosphor Bronze | 500 | Polytetrafluoroethylene (PTFE) | Gold | -65 ░C | 165 °C | Solder | Female Socket Jack | Through Hole | Solder | 1 | Gold | MCX | 50 Ohms | 6000 MHz | Snap-On |
