SP3530-01UTG Series

Un-dir. 0.3pF 22kv 5V 0201DFN TVS

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

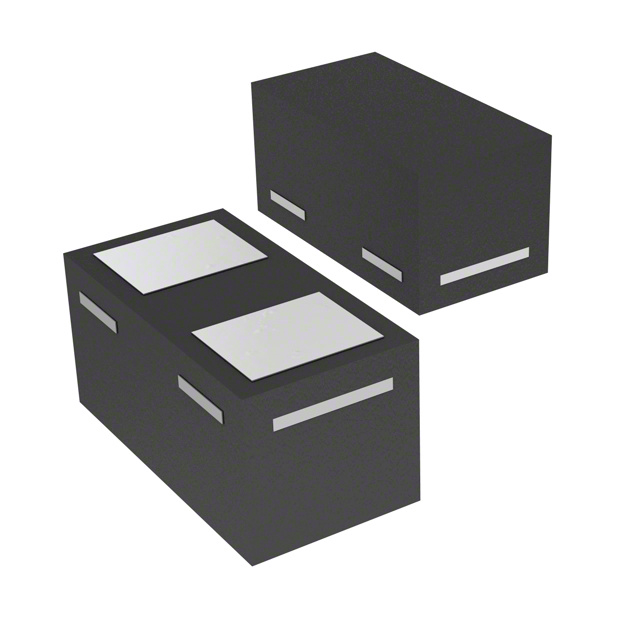

Un-dir. 0.3pF 22kv 5V 0201DFN TVS

Part	Power Line Protection	Applications	Qualification	Type	Package / Case	Package / Case	Current - Peak Pulse (10/1000µs)	Voltage - Reverse Standoff (Typ) [Max]	Mounting Type	Supplier Device Package	Voltage - Breakdown (Min)	Voltage - Clamping (Max) @ Ipp	Operating Temperature [Min]	Operating Temperature [Max]	Unidirectional Channels [custom]	Grade	Capacitance @ Frequency
Littelfuse/Commercial Vehicle Products SP3530-01UTG		HDMI	AEC-Q101	Zener	0603 Metric	0201	2.5 A	7 V	Surface Mount	0201 DFN0603	8.2 V	11.8 V	-40 °C	125 °C	1	Automotive	0.3 pF

Catalog

Un-dir. 0.3pF 22kv 5V 0201DFN TVS

Key Features

• ESD IEC61000-4-2, ±22 kV by contact, ±22 kV through air

• EFT, IEC61000-4-4, 40 A (tp = 5/50 ns)

• Lightning, IEC61000-4-5 2nd edition, 2.5 A (tp=8/20μs)

• Low capacitance of 0.3pF (TYP) at 3GHz

• Low profile 0201 DFN packages and SOD882 packages

• Facilitates excellent signal integrity

• ELV Compliant

• Moisture Sensitivity Level (MSL-1)

• AEC-Q101 qualified

• Lead-free, halogen-free, and RoHS compliant

Description

This SP3530-01UTG unidirectional diode is fabricated in a proprietary silicon avalanche technology. This provides a high level of protection for electronic equipment that may be exposed to electrostatic discharges (ESD). This robust component can safely absorb repetitive ESD strikes above the maximum level specified in the IEC 61000-4-2 international standard (±8kV contact discharge) without performance degradation. The extremely low loading capacitance also makes it ideal for protecting high speed signal pins such as V-By-One®, HDMI, USB3.0, USB2.0, and IEEE 1394.
