LXH7 Series
Manufacturer: Lumileds
Beta
⌘K

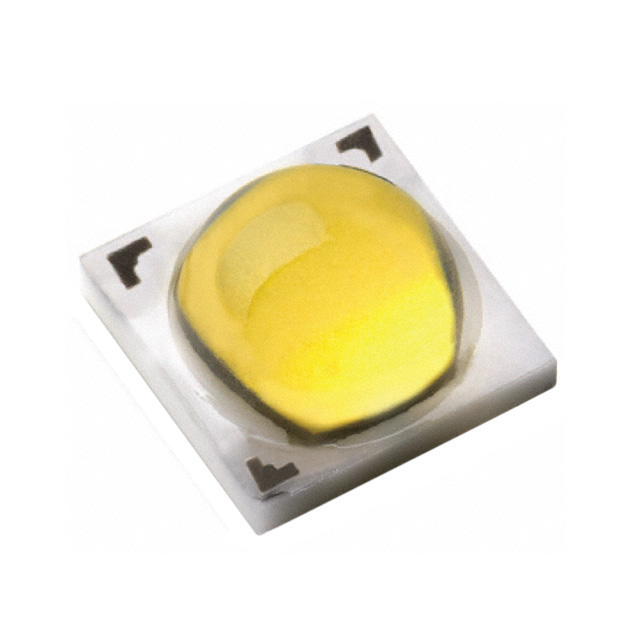

LED LUXEON COOL WHITE 5000K 3SMD
| Part | Thermal Resistance of Package | Mounting Type | Color | Flux @ 85°C, Current - Test | Current - Max [Max] | CCT (K) | CRI (Color Rendering Index) | Lumens/Watt @ Current - Test | Voltage - Forward (Vf) (Typ) | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Viewing Angle | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Lumileds | 3 °C/W | Surface Mount | Cool White | 255 lm | 1.2 A | 5000 K | 70 | 130 lm/W | 2.8 V | 0.146 in | 3.7 mm | 0.146 in | 3.7 mm | 2.12 mm | 0.083 " | 120 ° | 2-SMD No Lead Exposed Pad |
