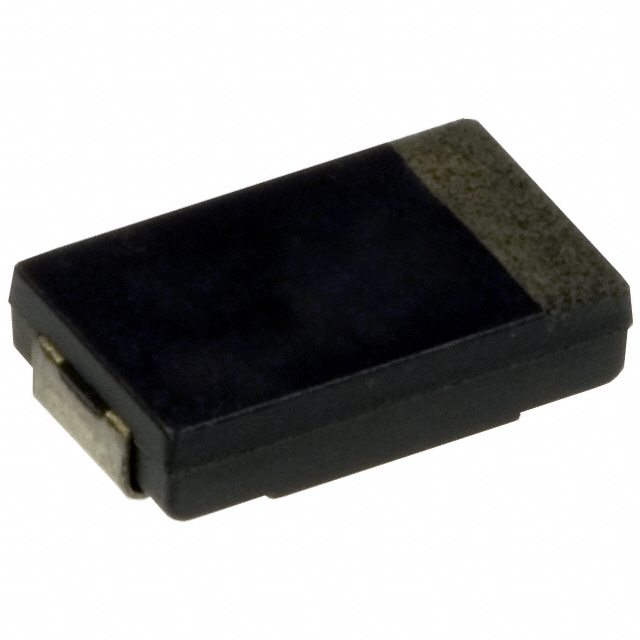

EEF-HL Series
Manufacturer: Panasonic Industrial Automation Sales
Beta
⌘K
CAP ALUM POLY 68UF 20% 4V SMD
| Part | Tolerance | Voltage - Rated | Operating Temperature [Max] | Operating Temperature [Min] | Ripple Current @ High Frequency | Surface Mount Land Size [x] | Surface Mount Land Size [y] | Surface Mount Land Size [y] | Surface Mount Land Size [x] | Package / Case | Package / Case | Capacitance | Type | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Mounting Type | Applications | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Lifetime @ Temp. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Industrial Automation Sales | 20 % | 4 V | 125 °C | -40 °C | 1.8 A | 0.287 " | 4.3 mm | 0.169 " | 7.3 mm | 7343 Metric | 2917 | 68 µF | Polymer | 1.9 mm | 0.075 in | Surface Mount | General Purpose | 4.3 mm | 0.287 " | 7.3 mm | 0.169 " | |
Panasonic Industrial Automation Sales | 20 % | 4 V | 125 °C | -40 °C | 1.8 A | 0.287 " | 4.3 mm | 0.169 " | 7.3 mm | 7343 Metric | 2917 | 56 µF | Polymer | 1.9 mm | 0.075 in | Surface Mount | General Purpose | 4.3 mm | 0.287 " | 7.3 mm | 0.169 " | |
Panasonic Industrial Automation Sales | 20 % | 2.5 V | 125 °C | -40 °C | 1.8 A | 0.287 " | 4.3 mm | 0.169 " | 7.3 mm | 7343 Metric | 2917 | 82 µF | Polymer | 1.9 mm | 0.075 in | Surface Mount | General Purpose | 4.3 mm | 0.287 " | 7.3 mm | 0.169 " | 1000 Hrs |
Panasonic Industrial Automation Sales | 20 % | 2 VDC | 125 °C | -40 °C | 1.8 A | 0.287 " | 4.3 mm | 0.169 " | 7.3 mm | 7343 Metric | 2917 | 100 µF | Polymer | 1.9 mm | 0.075 in | Surface Mount | General Purpose | 4.3 mm | 0.287 " | 7.3 mm | 0.169 " | 1000 Hrs |
