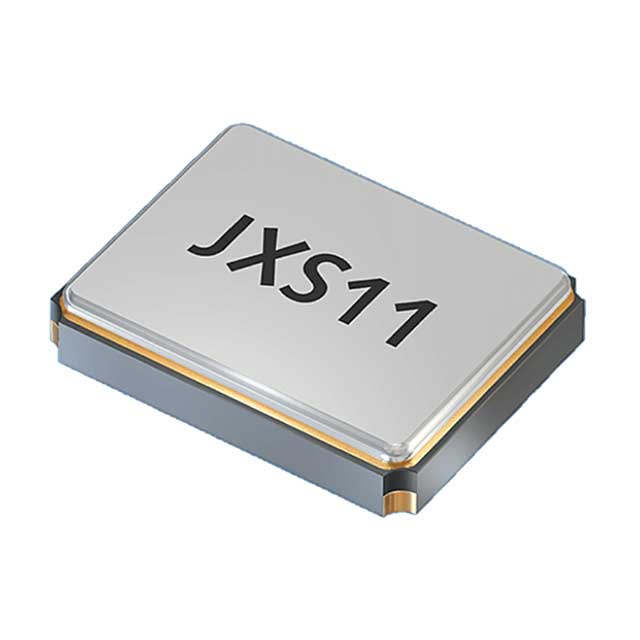

JXS11 Series

Catalog

CRYSTAL 30.0000MHZ 8PF SMD

Part	Operating Mode	ESR (Equivalent Series Resistance)	Frequency	Height - Seated (Max) [Max]	Height - Seated (Max)	Operating Temperature [Min]	Operating Temperature [Max]	Load Capacitance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Type	Mounting Type	Frequency Tolerance	Package / Case	Frequency Stability
Jauch Quartz Q 30,0-JXS11-8-10/10-FU-LF	Fundamental	80 Ohm	30 MHz	0.016 in	0.4 mm	-20 ░C	70 °C	8 pF	1.6 mm	1.2 mm	0.047 in	0.063 "	MHz Crystal	Surface Mount	10 ppm	4-SMD No Lead	10 ppm
Jauch Quartz Q 27,0-JXS11-12-10/20-T1-FU-LF	Fundamental	90 Ohm	27 MHz	0.016 in	0.4 mm	-40 C	85 °C	12 pF	1.6 mm	1.2 mm	0.047 in	0.063 "	MHz Crystal	Surface Mount	10 ppm	4-SMD No Lead	20 ppm
Jauch Quartz Q 27,0-JXS11-12-10/10-FU-LF	Fundamental	90 Ohm	27 MHz	0.016 in	0.4 mm	-20 ░C	70 °C	12 pF	1.6 mm	1.2 mm	0.047 in	0.063 "	MHz Crystal	Surface Mount	10 ppm	4-SMD No Lead	10 ppm
Jauch Quartz Q 50,0-JXS11-10-10/10-FU-LF	Fundamental	60 Ohms	50 MHz	0.016 in	0.4 mm	-20 ░C	70 °C	10 pF	1.6 mm	1.2 mm	0.047 in	0.063 "	MHz Crystal	Surface Mount	10 ppm	4-SMD No Lead	10 ppm
Jauch Quartz Q 40,0-JXS11-10-10/10-FU-LF	Fundamental	60 Ohms	40 MHz	0.016 in	0.4 mm	-20 ░C	70 °C	10 pF	1.6 mm	1.2 mm	0.047 in	0.063 "	MHz Crystal	Surface Mount	10 ppm	4-SMD No Lead	10 ppm
Jauch Quartz Q 50,0-JXS11-12-10/10-FU-LF	Fundamental	60 Ohms	50 MHz	0.016 in	0.4 mm	-20 ░C	70 °C	12 pF	1.6 mm	1.2 mm	0.047 in	0.063 "	MHz Crystal	Surface Mount	10 ppm	4-SMD No Lead	10 ppm
