794106 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

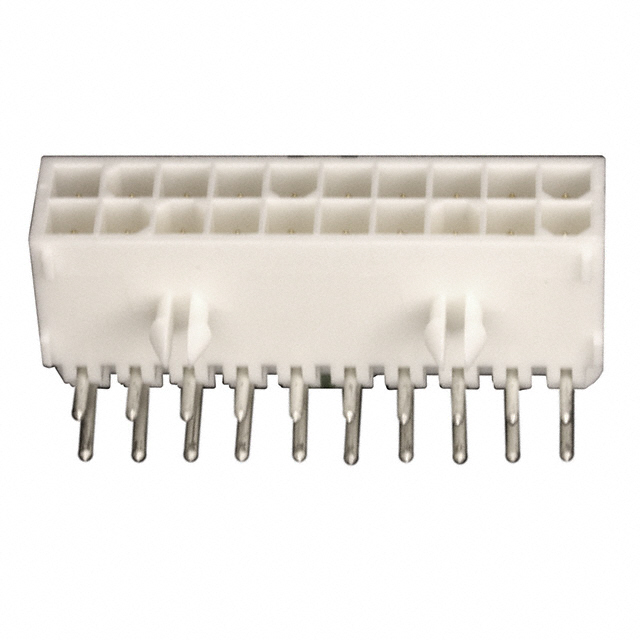

CONN HEADER R/A 20POS 4.14MM
| Part | Applications | Contact Finish Thickness - Post | Contact Finish - Mating | Number of Positions | Fastening Type | Style | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Current Rating (Amps) | Contact Shape | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Termination | Voltage Rating | Insulation Height | Insulation Height | Contact Type | Number of Rows [custom] | Contact Length - Post | Contact Length - Post | Insulation Color | Contact Finish - Post | Contact Material | Mounting Type | Insulation Material | Number of Positions Loaded | Pitch - Mating | Pitch - Mating | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Features | Shrouding | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | General Purpose | 3.81 Ám | Gold | 20 | Locking Ramp | Board to Cable/Wire | 0.76 Ám | 30 Áin | Varies by Wire Gauge | Circular | -20 ░C | 105 ░C | Header | Solder | 600 VAC | 9.8 mm | 0.386 in | Male Pin | 2 | 3.68 mm | 0.145 in | White | Tin-Lead | Brass | Right Angle Through Hole | Nylon Polyamide (PA) | All | 0.163 in | 4.14 mm | 4.14 mm | 0.163 in | Board Lock | Shrouded - 4 Wall | UL94 V-0 |
