OSTNL Series

Catalog

3.5MM 2 PC TERM BLOCK PLUG DUAL

Part	Insulation Height	Insulation Height	Contact Material	Material Flammability Rating	Wire Strip Length [Max]	Wire Strip Length [Min]	Contact Mating Finish	Termination Style	Voltage - UL	Number of Levels	Operating Temperature [Max]	Operating Temperature [Min]	Current - UL	Number of Positions	Pitch	Pitch	Positions Per Level [custom]	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Type	Plug Wire Entry	Color	Mounting Type	Features	Positions Per Level

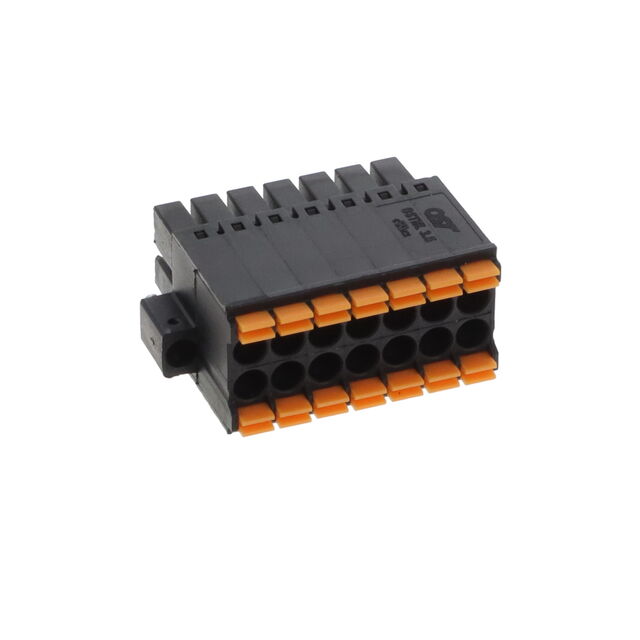

On Shore Technology Inc. OSTNL141001	0.522 in	13.25 mm	Phosphor Bronze	UL94 V-0	10 mm	9 mm	Tin	Screwless - Spring Cage Tension Clamp	300 V	2	115 °C	-40 C	8 A	14	3.5 mm	0.138 "	7	16 AWG	24 AWG	Plug Female Sockets	180 °	Black	Free Hanging (In-Line)	Mating Flange

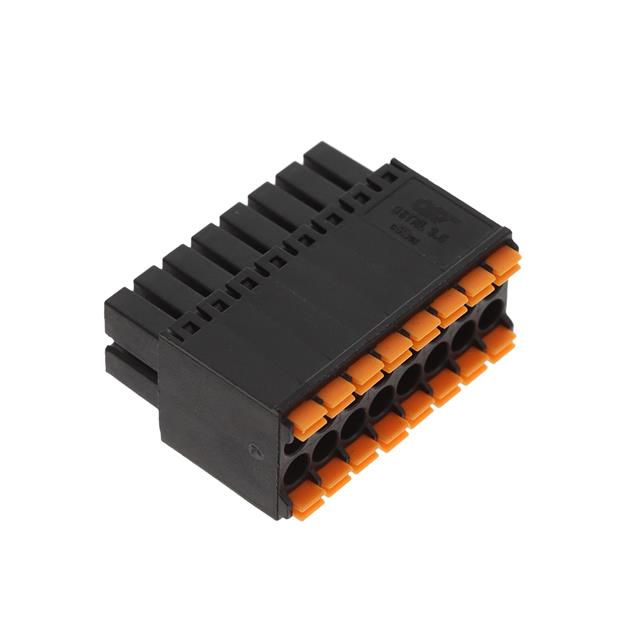

On Shore Technology Inc. OSTNL161002	0.522 in	13.25 mm	Phosphor Bronze	UL94 V-0	10 mm	9 mm	Tin	Screwless - Spring Cage Tension Clamp	300 V	2	115 °C	-40 C	8 A	16	3.5 mm	0.138 "		16 AWG	24 AWG	Plug Female Sockets	180 °	Black	Free Hanging (In-Line)		8

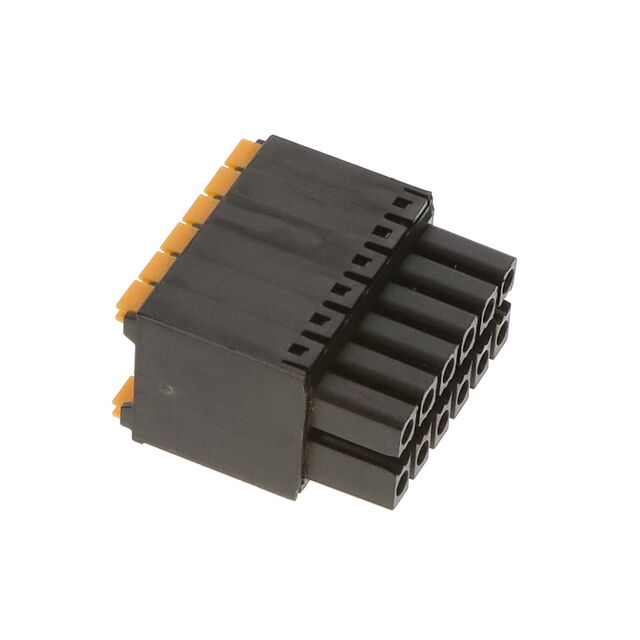

On Shore Technology Inc. OSTNL121002	0.522 in	13.25 mm	Phosphor Bronze	UL94 V-0	10 mm	9 mm	Tin	Screwless - Spring Cage Tension Clamp	300 V	2	115 °C	-40 C	8 A	12	3.5 mm	0.138 "		16 AWG	24 AWG	Plug Female Sockets	180 °	Black	Free Hanging (In-Line)		6

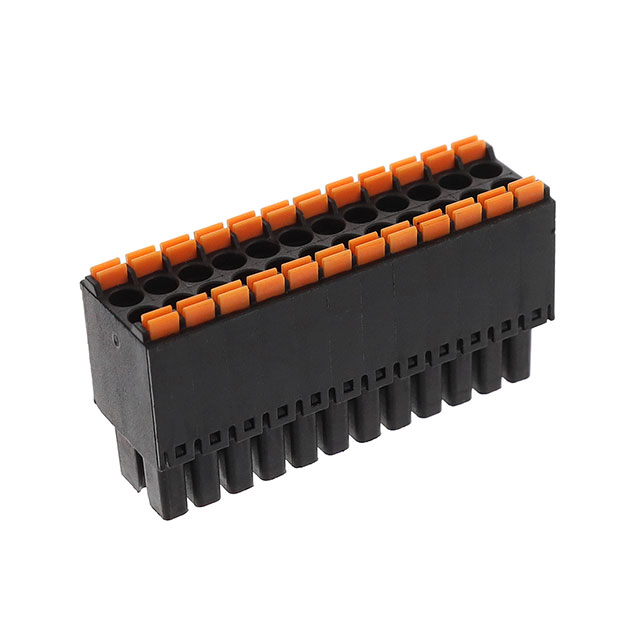

On Shore Technology Inc. OSTNL241002	0.522 in	13.25 mm	Phosphor Bronze	UL94 V-0	10 mm	9 mm	Tin	Screwless - Spring Cage Tension Clamp	300 V	2	115 °C	-40 C	8 A	24	3.5 mm	0.138 "		16 AWG	24 AWG	Plug Female Sockets	180 °	Black	Free Hanging (In-Line)		12

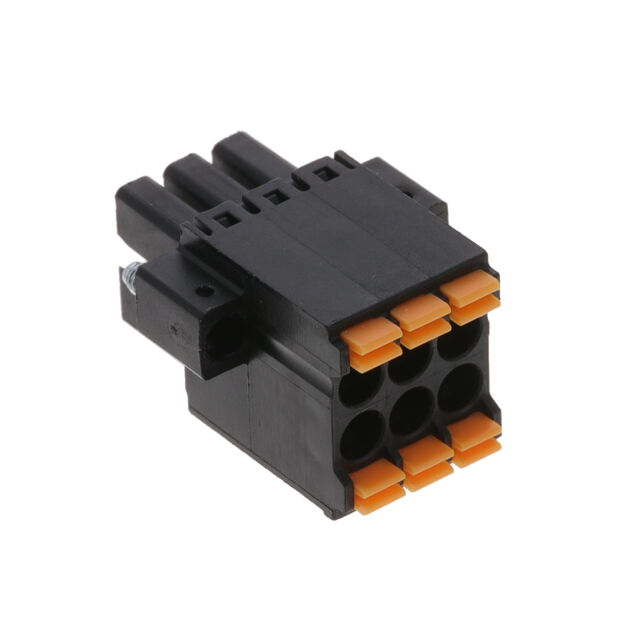

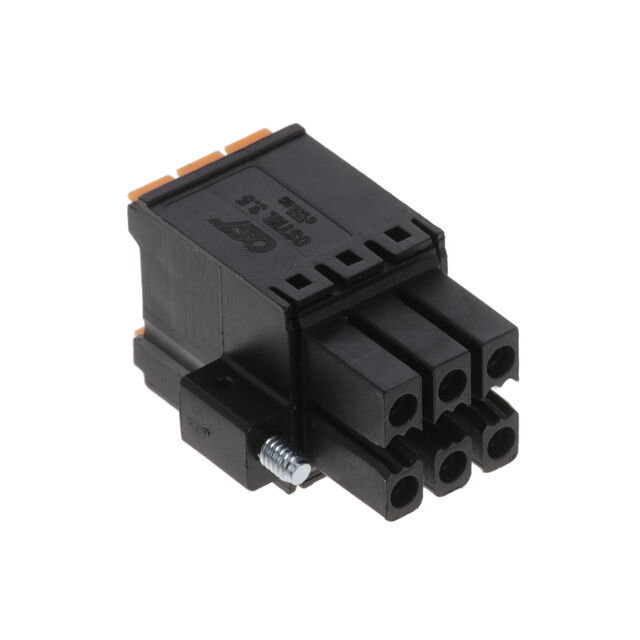

On Shore Technology Inc. OSTNL061001	0.522 in	13.25 mm	Phosphor Bronze	UL94 V-0	10 mm	9 mm	Tin	Screwless - Spring Cage Tension Clamp	300 V	2	115 °C	-40 C	8 A	6	3.5 mm	0.138 "		16 AWG	24 AWG	Plug Female Sockets	180 °	Black	Free Hanging (In-Line)	Mating Flange	3

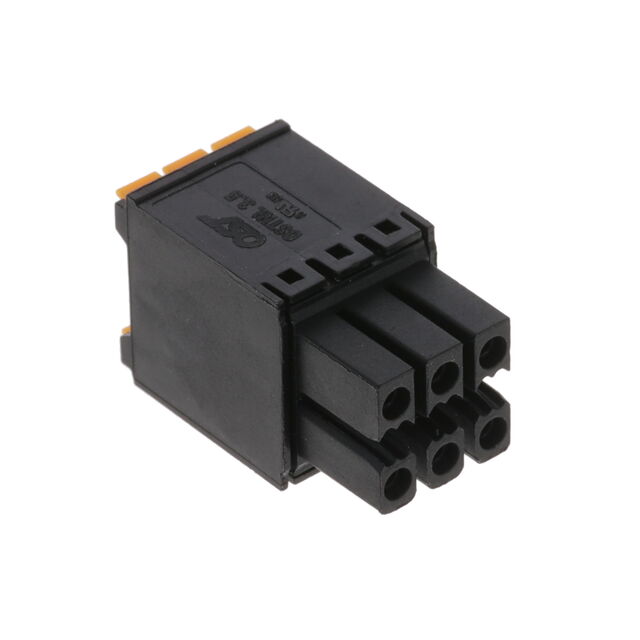

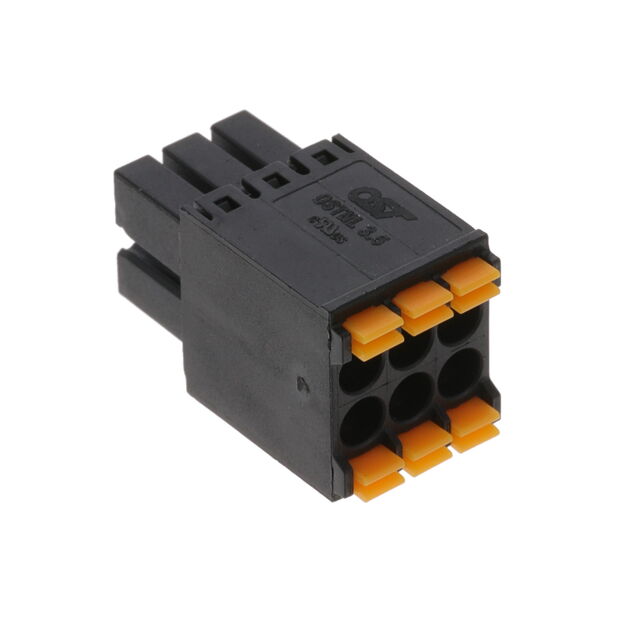

On Shore Technology Inc. OSTNL061002	0.522 in	13.25 mm	Phosphor Bronze	UL94 V-0	10 mm	9 mm	Tin	Screwless - Spring Cage Tension Clamp	300 V	2	115 °C	-40 C	8 A	6	3.5 mm	0.138 "		16 AWG	24 AWG	Plug Female Sockets	180 °	Black	Free Hanging (In-Line)		3

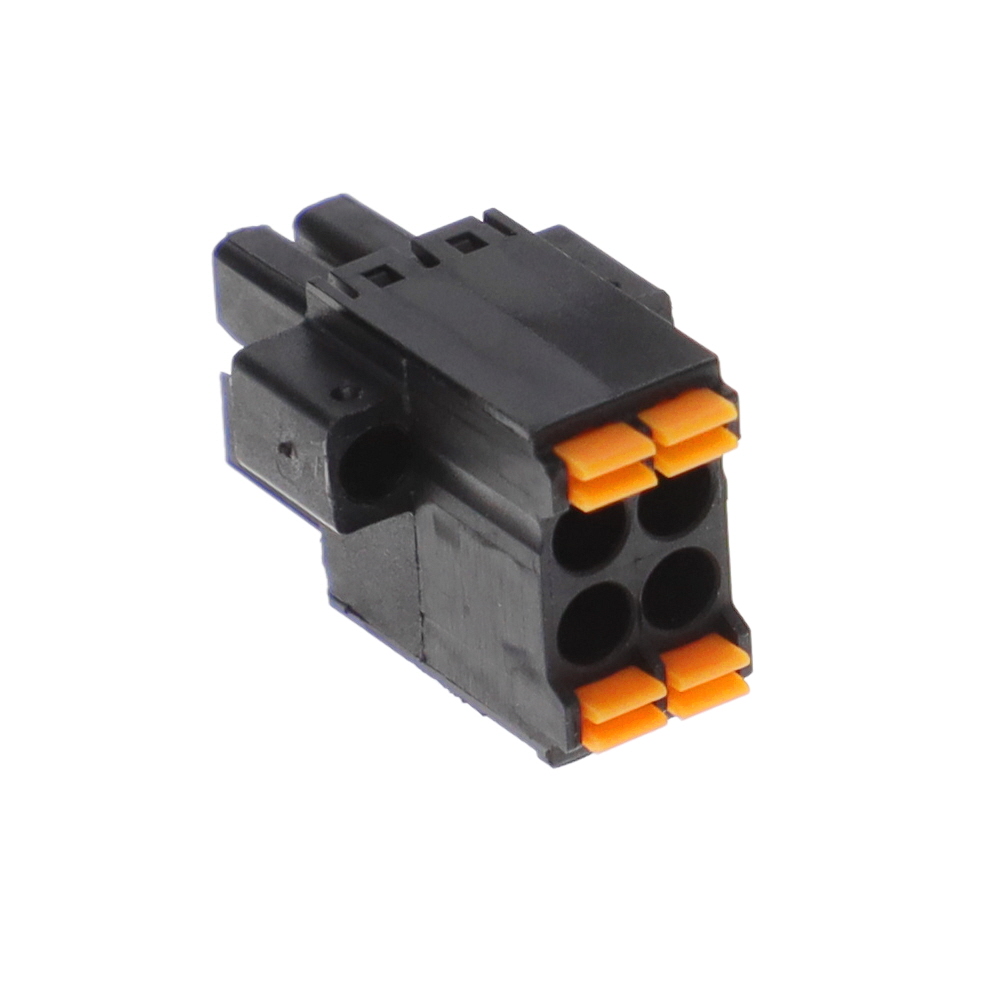

On Shore Technology Inc. OSTNL041001	0.522 in	13.25 mm	Phosphor Bronze	UL94 V-0	10 mm	9 mm	Tin	Screwless - Spring Cage Tension Clamp	300 V	2	115 °C	-40 C	8 A	4	3.5 mm	0.138 "		16 AWG	24 AWG	Plug Female Sockets	180 °	Black	Free Hanging (In-Line)	Mating Flange	2

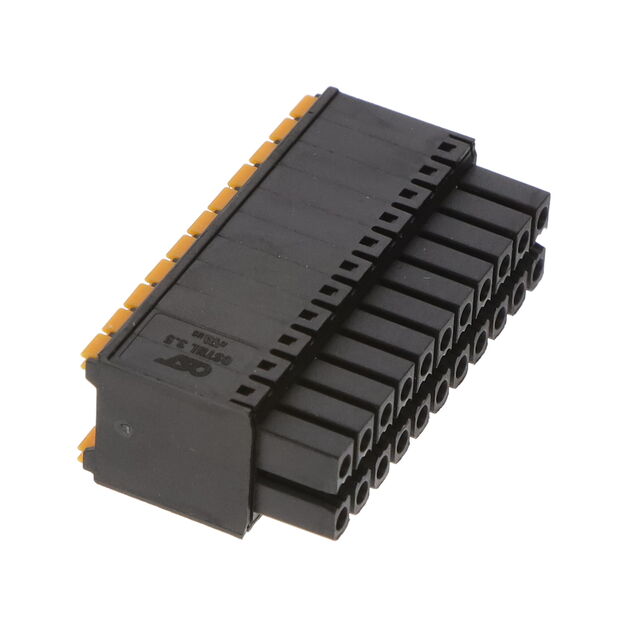

On Shore Technology Inc. OSTNL221002	0.522 in	13.25 mm	Phosphor Bronze	UL94 V-0	10 mm	9 mm	Tin	Screwless - Spring Cage Tension Clamp	300 V	2	115 °C	-40 C	8 A	22	3.5 mm	0.138 "		16 AWG	24 AWG	Plug Female Sockets	180 °	Black	Free Hanging (In-Line)		11
On Shore Technology Inc. OSTNL201001	0.522 in	13.25 mm	Phosphor Bronze	UL94 V-0	10 mm	9 mm	Tin	Screwless - Spring Cage Tension Clamp	300 V	2	115 °C	-40 C	8 A	20	3.5 mm	0.138 "		16 AWG	24 AWG	Plug Female Sockets	180 °	Black	Free Hanging (In-Line)	Mating Flange	10

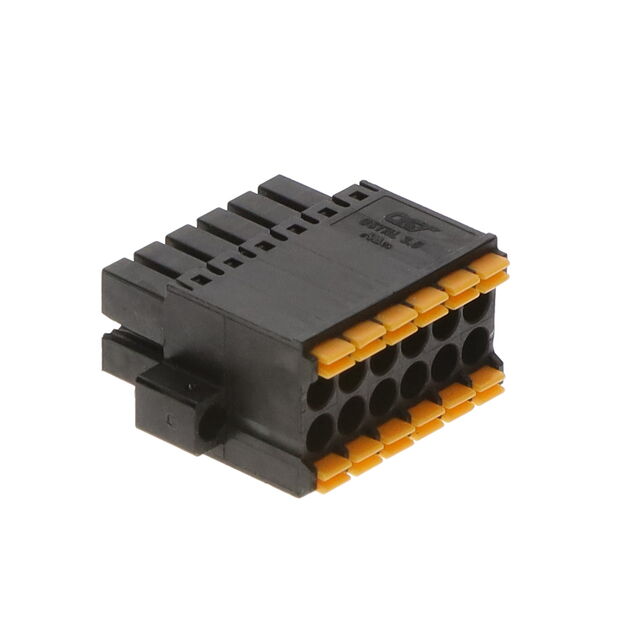

On Shore Technology Inc. OSTNL121001	0.522 in	13.25 mm	Phosphor Bronze	UL94 V-0	10 mm	9 mm	Tin	Screwless - Spring Cage Tension Clamp	300 V	2	115 °C	-40 C	8 A	12	3.5 mm	0.138 "		16 AWG	24 AWG	Plug Female Sockets	180 °	Black	Free Hanging (In-Line)	Mating Flange	6
