M2T15SA Series

Catalog

SWITCH TOGGLE SPDT 0.4VA 28V

Part	Electrical Life	Actuator Material	Mounting Type	Bushing Thread	Voltage Rating - AC	Switch Function	Circuit	Actuator Length [x]	Termination Style	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Illumination	Features	Actuator Type	Current Rating (Amps)
NKK Switches M2T15SA5G30	50000 Cycles	Brass Nickel Plated	Right Angle Through Hole	Unthreaded	28 V	On-Mom	SPDT	0.5 in	PC Pin	28 V	85 °C	-30 ░C	Non-Illuminated	Process Sealed	Standard Round	0.4 VA
NKK Switches M2T15SA5A03	25000 Steps	Brass Nickel Plated	Through Hole	Unthreaded	125 V	On-Mom	SPDT	0.5 in	PC Pin	30 V	85 °C	-30 ░C	Non-Illuminated	Process Sealed	Standard Round	3 A 6 A
NKK Switches M2T15SA5G13	50000 Cycles	Brass Nickel Plated	Through Hole	Unthreaded	28 V	On-Mom	SPDT	0.5 in	PC Pin	28 V	85 °C	-30 ░C	Non-Illuminated	Process Sealed	Standard Round	0.4 VA

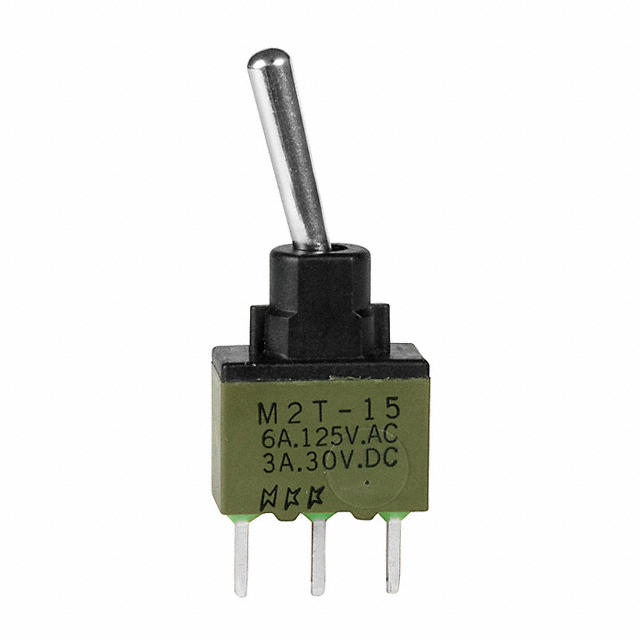

NKK Switches M2T15SA5W03	25000 Steps	Brass Nickel Plated	Through Hole	Unthreaded	125 V	On-Mom	SPDT	0.5 in	PC Pin	30 V	85 °C	-30 ░C	Non-Illuminated	Process Sealed	Standard Round	3 A 6 A
