AOZ8829 Series
Manufacturer: Alpha & Omega Semiconductor Inc.
Beta
⌘K
TVS DIODE 3.3VWM 3VC 3DFN
| Part | Supplier Device Package [x] | Supplier Device Package [y] | Supplier Device Package | Type | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Clamping (Max) @ Ipp [Max] | Package / Case | Capacitance @ Frequency | Mounting Type | Applications | Voltage - Reverse Standoff (Typ) | Power Line Protection | Unidirectional Channels [custom] | Current - Peak Pulse (10/1000µs) | Voltage - Breakdown (Min) [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

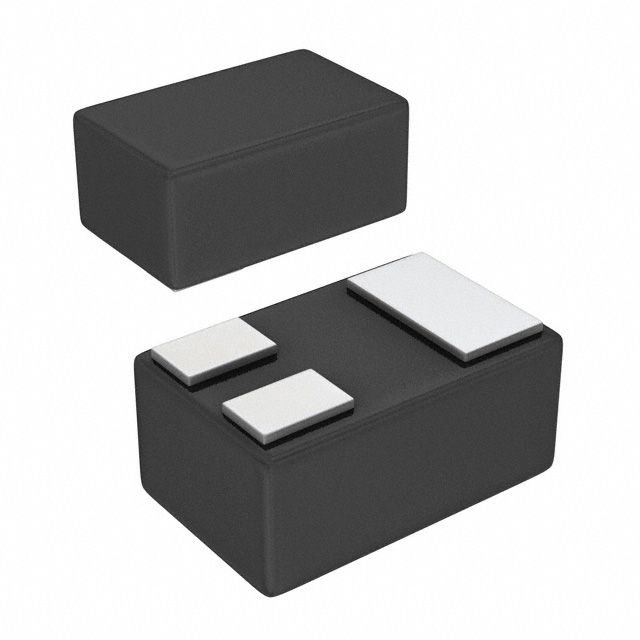

 Alpha & Omega Semiconductor Inc. | 1 | 0.6 | 3-DFN | Zener | -40 C | 125 °C | 3 V | 3-UFDFN | 0.6 pF | Surface Mount | General Purpose | 3.3 V | 4 | 5 A | ||
 Alpha & Omega Semiconductor Inc. | 10-DFN (2.5x1) | Steering (Rail to Rail) | -40 C | 125 °C | 6 V | 10-UFDFN | 0.55 pF | Surface Mount | HDMI USB | 3.3 V | 4 | 16 A | 5 V | |||
 Alpha & Omega Semiconductor Inc. | 10-DFN (2.5x1) | Steering (Rail to Rail) | -40 °C | 125 °C | 6 V | 10-UFDFN | 0.69 pF | Surface Mount | General Purpose | 3.3 V | 4 | 5 V |
