11_MMCX-50 Series
Manufacturer: Huber+Suhner, Inc.
Beta
⌘K

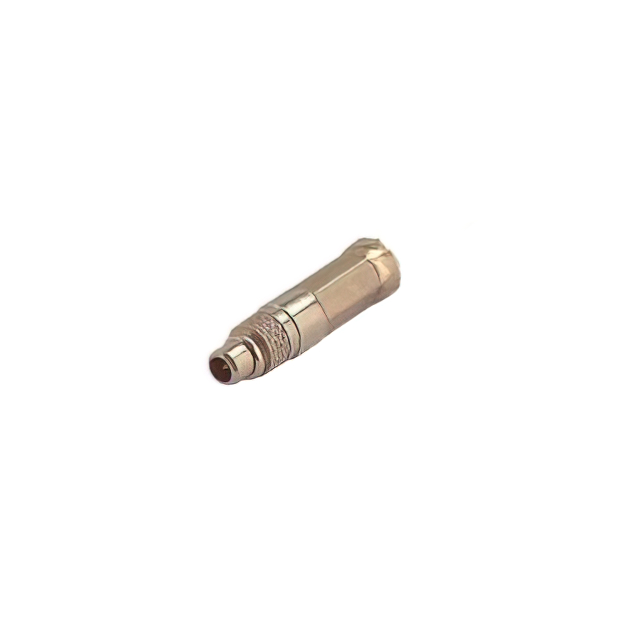

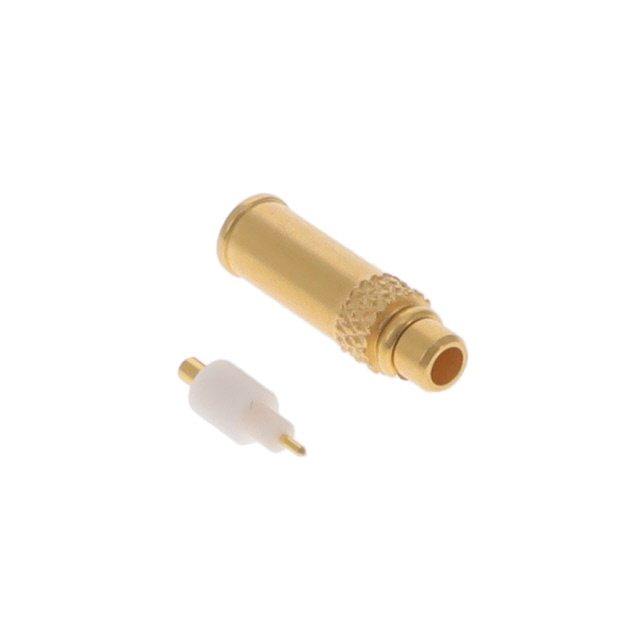

CONN MMCX 0HZ TO 6GHZ 50OHM CRIMP ST CABLE MOUNT PL GOLD SINGLE
| Part | Voltage Rating | Dielectric Material | Center Contact Plating | Operating Temperature [Max] | Operating Temperature [Min] | Mating Cycles | Body Finish | Body Material | Fastening Type | Shield Termination | Impedance | Connector Style | Connector Type | Number of Ports | Mounting Type | Housing Color | Cable Group | Center Contact Material | Contact Termination | Frequency - Max [Max] | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Huber+Suhner, Inc. | 170 V | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Gold | 155 C | -55 C | 500 | Gold | Brass | Snap-On | Crimp | 50 Ohms | MMCX | Plug Male Pin | 1 | Free Hanging (In-Line) | Gold | 188 316 RG-174 | Beryllium Copper | Crimp | 6000 MHz | |
Huber+Suhner, Inc. | 170 V | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Gold | 155 C | -55 C | 500 | Gold | Brass | Snap-On | Crimp | 50 Ohms | MMCX | Plug Male Pin | 1 | Free Hanging (In-Line) | Gold | RG-178 | Beryllium Copper | Crimp | 6000 MHz | 196 |

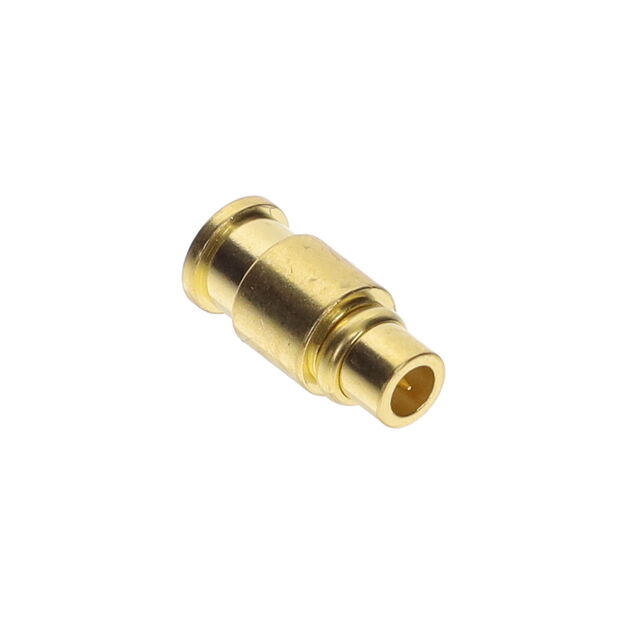

 Huber+Suhner, Inc. | 170 V | Gold | 155 C | -65 ░C | Gold | Brass | Snap-On | Solder | 50 Ohms | MMPX | Plug Male Pin | 1 | Free Hanging (In-Line) | Gold | Brass | Solder | 67 GHz | ||||
 Huber+Suhner, Inc. | 170 V | Polytetrafluoroethylene (PTFE) | Gold | 155 C | -65 ░C | Gold | Brass | Snap-On | Solder | 50 Ohms | MMPX | Plug Male Pin | 1 | Free Hanging (In-Line) | Gold | RG-405 (.086 Semi Rigid) | Beryllium Copper Brass | Crimp | 67 GHz | ||
Huber+Suhner, Inc. | 170 V | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Gold | 155 C | -55 C | 500 | Gold | Brass | Snap-On | Crimp | 50 Ohms | MMCX | Plug Male Pin | 1 | Free Hanging (In-Line) | Gold | 188 316 RG-174 | Beryllium Copper | Crimp | 6000 MHz | |
Huber+Suhner, Inc. | 170 V | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Gold | 155 C | -55 C | 500 | Gold | Brass | Snap-On | Crimp | 50 Ohms | MMCX | Plug Male Pin | 1 | Free Hanging (In-Line) | Gold | RG-316 | Beryllium Copper | Crimp | 6000 MHz | |
 Huber+Suhner, Inc. | 170 V | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Gold | 155 C | -55 C | 500 | Gold | Brass | Snap-On | Solder | 50 Ohms | MMCX | Plug Male Pin | 1 | Free Hanging (In-Line) | Gold | RG-405 (.086 Semi Rigid) | Beryllium Copper | Crimp | 6000 MHz | |
Huber+Suhner, Inc. | 170 V | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Gold | 155 C | -55 C | 500 | Gold | Brass | Snap-On | Crimp | 50 Ohms | MMCX | Plug Male Pin | 1 | Free Hanging (In-Line) | Gold | Beryllium Copper | Crimp | 6000 MHz |
