842-094 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 94POS 0.100

Part	Termination Rows [custom]	Material - Insulation	Gender	Card Thickness [Max]	Card Thickness [Min]	Contact Material	Contact Type	Contact Finish	Flange Feature	Color	Contact Finish Thickness	Contact Finish Thickness	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Number of Rows [custom]	Number of Positions/Bay/Row	Card Type	Read Out	Pitch	Pitch	Number of Positions	Flange Feature [diameter]	Flange Feature [diameter]	Features
EDAC Inc. 842-094-523-208	2	Diallyl Phthalate (DAP)	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Cantilever	Gold	4-40 Flush Mount Threaded Insert Top Opening	Green	0.25 Ám	10 Áin	Solder	125 °C	-40 C	Through Hole	2	47	Non Specified - Dual Edge	Dual	0.1 "	2.54 mm	94
EDAC Inc. 842-094-523-207	2	Diallyl Phthalate (DAP)	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Cantilever	Gold	Flush Mount M3 Threaded Insert Top Opening	Green	0.25 Ám	10 Áin	Solder	125 °C	-40 C	Through Hole	2	47	Non Specified - Dual Edge	Dual	0.1 "	2.54 mm	94

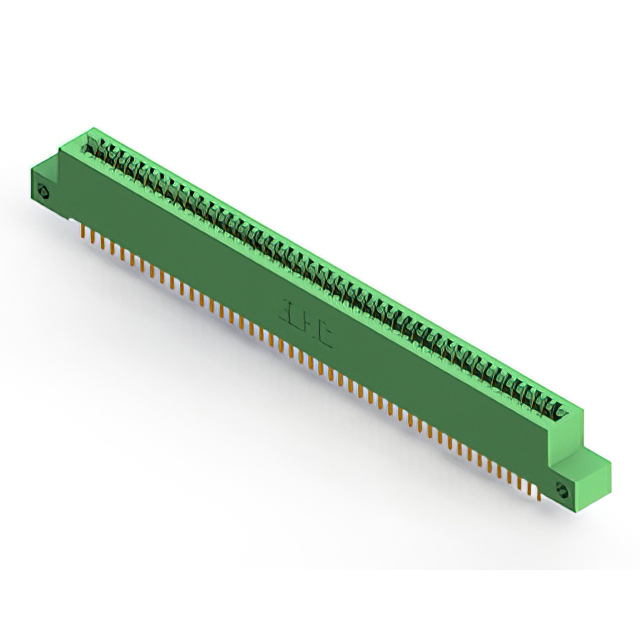

EDAC Inc. 842-094-521-212	2	Diallyl Phthalate (DAP)	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Cantilever	Gold	Flush Mount Side Opening Unthreaded	Green	0.25 Ám	10 Áin	Solder	125 °C	-40 C	Through Hole	2	47	Non Specified - Dual Edge	Dual	0.1 "	2.54 mm	94	0.128 "	3.25 mm
EDAC Inc. 842-094-542-201	2	Diallyl Phthalate (DAP)	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Cantilever	Gold		Green	0.25 Ám	10 Áin	Wire Wrap	125 °C	-40 C	Through Hole	2	47	Non Specified - Dual Edge	Dual	0.1 "	2.54 mm	94

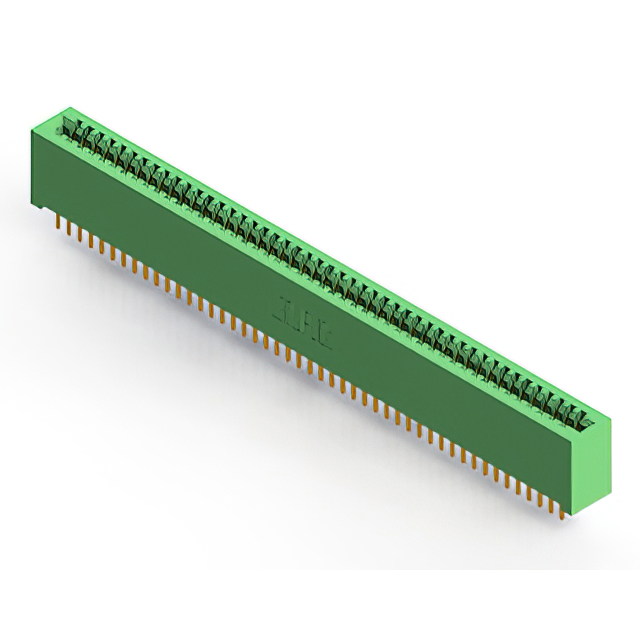

EDAC Inc. 842-094-521-201	2	Diallyl Phthalate (DAP)	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Cantilever	Gold		Green	0.25 Ám	10 Áin	Solder	125 °C	-40 C	Through Hole	2	47	Non Specified - Dual Edge	Dual	0.1 "	2.54 mm	94

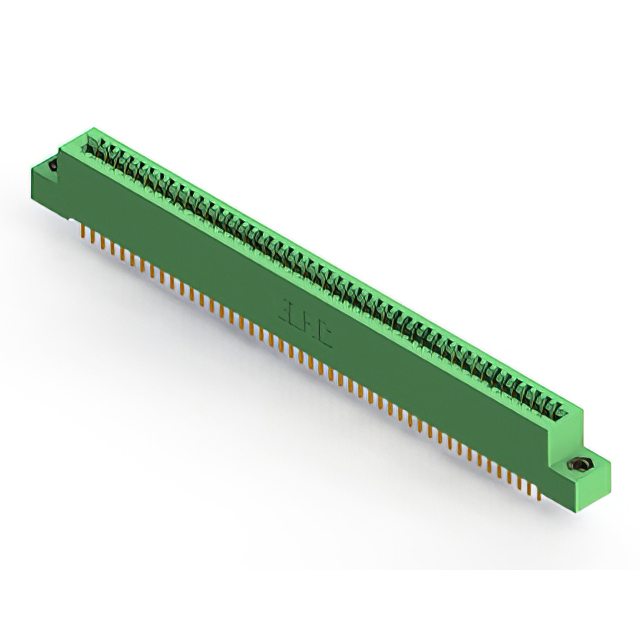

EDAC Inc. 842-094-521-207	2	Diallyl Phthalate (DAP)	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Cantilever	Gold	Flush Mount M3 Threaded Insert Top Opening	Green	0.25 Ám	10 Áin	Solder	125 °C	-40 C	Through Hole	2	47	Non Specified - Dual Edge	Dual	0.1 "	2.54 mm	94
EDAC Inc. 842-094-544-212	2	Diallyl Phthalate (DAP)	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Cantilever	Gold	Flush Mount Side Opening Unthreaded	Green	0.25 Ám	10 Áin	Wire Wrap	125 °C	-40 C	Through Hole	2	47	Non Specified - Dual Edge	Dual	0.1 "	2.54 mm	94	0.128 "	3.25 mm
EDAC Inc. 842-094-544-202	2	Diallyl Phthalate (DAP)	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Cantilever	Gold	Flush Mount Top Opening Unthreaded	Green	0.25 Ám	10 Áin	Wire Wrap	125 °C	-40 C	Through Hole	2	47	Non Specified - Dual Edge	Dual	0.1 "	2.54 mm	94	0.128 "	3.25 mm

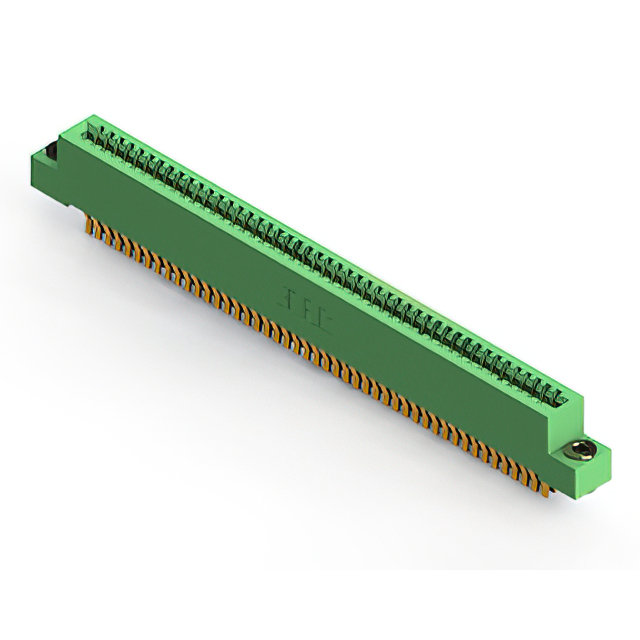

EDAC Inc. 842-094-560-203	2	Diallyl Phthalate (DAP)	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Cantilever	Gold	Floating Bobbin Flush Mount	Green	0.25 Ám	10 Áin	Solder	125 °C	-40 C	Board Edge Straddle Mount	2	47	Non Specified - Dual Edge	Dual	0.1 "	2.54 mm	94	0.116 "	2.95 mm	Card Extender
EDAC Inc. 842-094-555-212	2	Diallyl Phthalate (DAP)	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Cantilever	Gold	Flush Mount Side Opening Unthreaded	Green	0.25 Ám	10 Áin	Solder	125 °C	-40 C	Board Edge Straddle Mount	2	47	Non Specified - Dual Edge	Dual	0.1 "	2.54 mm	94	0.128 "	3.25 mm	Card Extender
