IR21141 Series

Manufacturer: INFINEON

Catalog

IC GATE DRVR HALF-BRIDGE 24SSOP

Part	Input Type	Number of Drivers	Voltage - Supply [Max]	Voltage - Supply [Min]	Channel Type	Driven Configuration	Logic Voltage - VIL, VIH	Rise / Fall Time (Typ)	Supplier Device Package	High Side Voltage - Max (Bootstrap) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Current - Peak Output (Source, Sink) [custom]	Current - Peak Output (Source, Sink) [custom]	Package / Case	Package / Case	Package / Case	Mounting Type	Gate Type

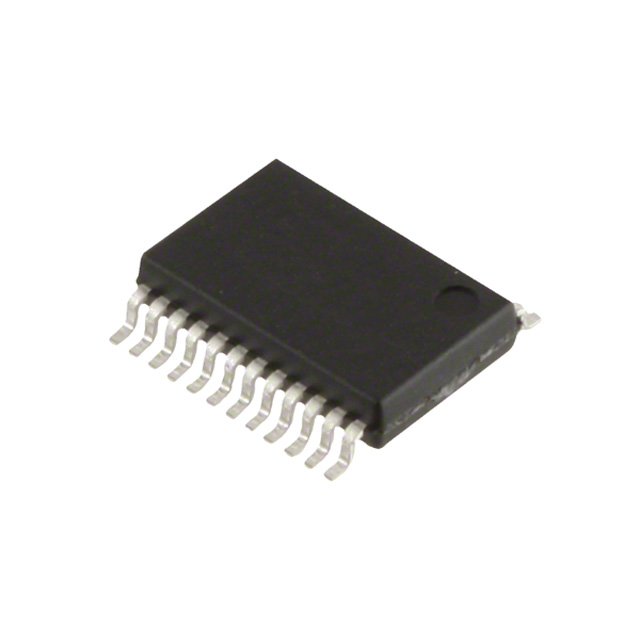

INFINEON IR21141SSTRPBF	Non-Inverting	2	20 V	11.5 V	Independent	Half-Bridge	0.8 V 2 V	7 ns 24 ns	24-SSOP	600 V	-40 °C	150 °C	2 A	3 A	24-SSOP	5.3 mm	0.209 in	Surface Mount	IGBT
INFINEON IR21141SSPBF	Non-Inverting	2	20 V	11.5 V	Independent	Half-Bridge	0.8 V 2 V	7 ns 24 ns	24-SSOP	600 V	-40 °C	150 °C	2 A	3 A	24-SSOP	5.3 mm	0.209 in	Surface Mount	IGBT
