M50-300 Series
Manufacturer: Harwin Inc.
Beta
⌘K
CONN RCPT 40POS 0.05 GOLD PCB
| Part | Contact Shape | Insulation Material | Contact Material | Applications | Number of Rows [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Material Flammability Rating | Insulation Height | Insulation Height | Connector Type | Contact Type | Pitch - Mating | Pitch - Mating | Contact Finish Thickness - Mating | Fastening Type | Mated Stacking Heights | Row Spacing - Mating | Row Spacing - Mating | Termination | Number of Positions | Contact Finish - Mating | Style | Insulation Color | Mounting Type | Number of Positions Loaded | Contact Length - Post | Contact Length - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

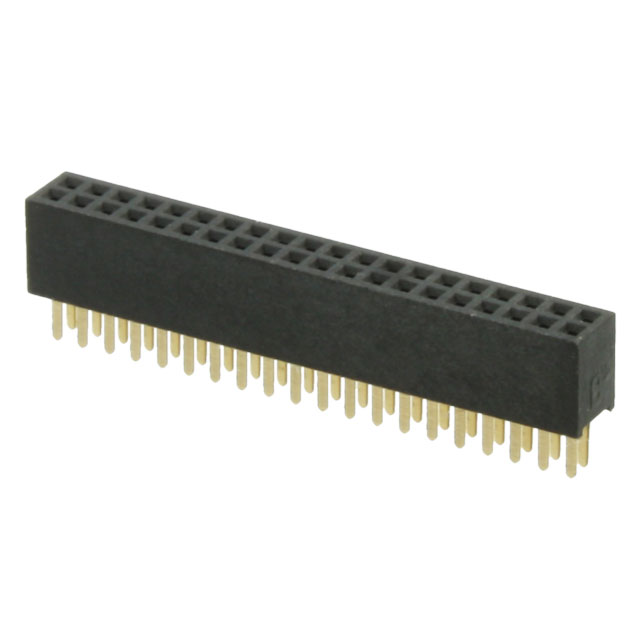

 Harwin Inc. | Square | Nylon 6T Polyamide (PA6T) | Phosphor Bronze | General Purpose Medical Telecommunications | 2 | -40 C | 105 ░C | UL94 V-0 | 4.4 mm | 0.173 in | Receptacle | Female Socket | 1.27 mm | 0.05 in | Flash | Push-Pull | 5.4 mm 6.08 mm 9.37 mm | 0.05 in | 1.27 mm | Solder | 40 | Gold | Board to Board Cable | Black | Through Hole | All | 2.4 mm | 0.094 in |

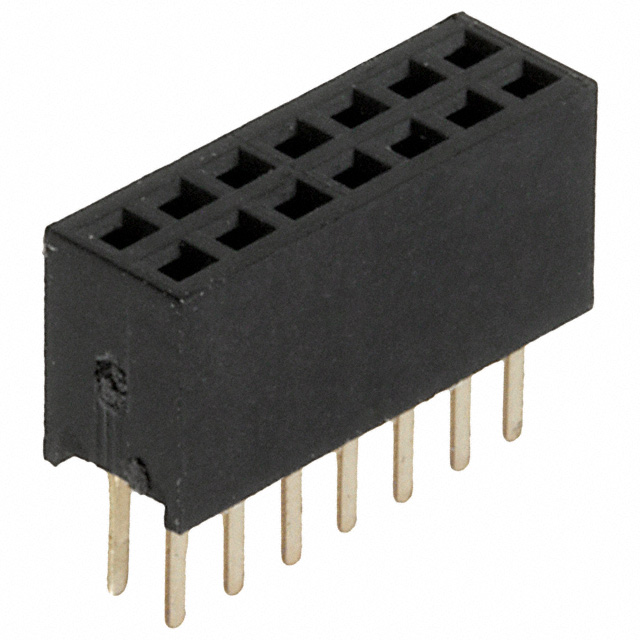

 Harwin Inc. | Square | Nylon 6T Polyamide (PA6T) | Phosphor Bronze | General Purpose Medical Telecommunications | 2 | -40 C | 105 ░C | UL94 V-0 | 4.4 mm | 0.173 in | Receptacle | Female Socket | 1.27 mm | 0.05 in | Flash | Push-Pull | 5.4 mm 6.08 mm 9.37 mm | 0.05 in | 1.27 mm | Solder | 14 | Gold | Board to Board Cable | Black | Through Hole | All | 2.4 mm | 0.094 in |

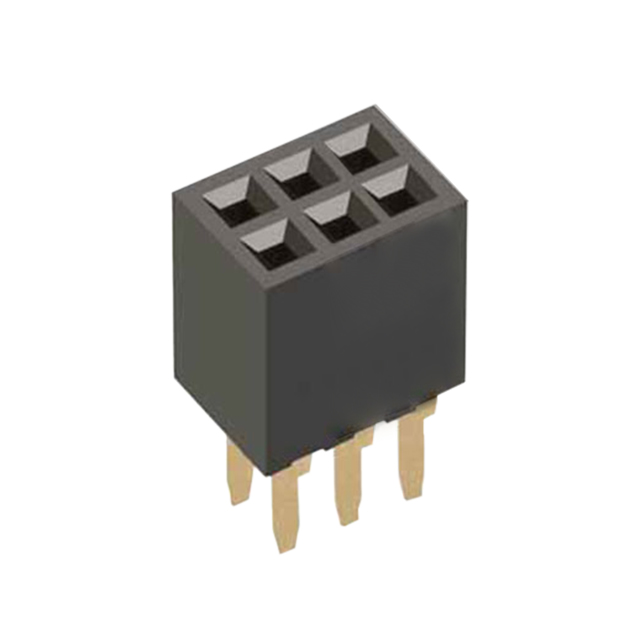

 Harwin Inc. | Square | Nylon 6T Polyamide (PA6T) | Phosphor Bronze | General Purpose Medical Telecommunications | 2 | -40 C | 105 ░C | UL94 V-0 | 4.4 mm | 0.173 in | Receptacle | Female Socket | 1.27 mm | 0.05 in | Flash | Push-Pull | 5.4 mm 6.08 mm 9.37 mm | 0.05 in | 1.27 mm | Solder | 6 | Gold | Board to Board Cable | Black | Through Hole | All | 2.4 mm | 0.094 in |

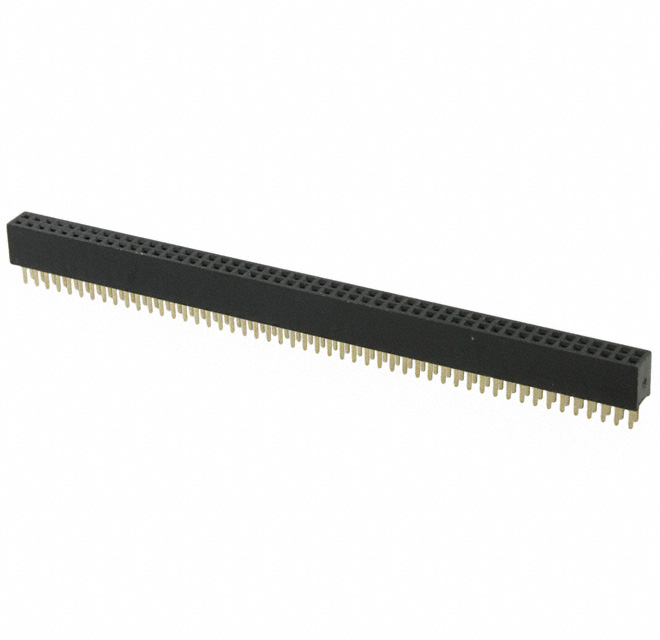

Harwin Inc. | Square | Nylon 6T Polyamide (PA6T) | Phosphor Bronze | General Purpose Medical Telecommunications | 2 | -40 C | 105 ░C | UL94 V-0 | 4.4 mm | 0.173 in | Receptacle | Female Socket | 1.27 mm | 0.05 in | Flash | Push-Pull | 5.4 mm 6.08 mm 9.37 mm | 0.05 in | 1.27 mm | Solder | 100 | Gold | Board to Board Cable | Black | Through Hole | All | 2.4 mm | 0.094 in |
 Harwin Inc. | Square | Nylon 6T Polyamide (PA6T) | Phosphor Bronze | General Purpose Medical Telecommunications | 2 | -40 C | 105 ░C | UL94 V-0 | 4.4 mm | 0.173 in | Receptacle | Female Socket | 1.27 mm | 0.05 in | Flash | Push-Pull | 5.4 mm 6.08 mm 9.37 mm | 0.05 in | 1.27 mm | Solder | 24 | Gold | Board to Board Cable | Black | Through Hole | All | 2.4 mm | 0.094 in |
