FP10R12 Series

Manufacturer: INFINEON

Catalog

THE FP10R12W1T4P IS A PIM IGBT4 - T4 MODULE IN A EASYPIM™ 1B HOUSING FOR INDUSTRIAL APPLICATIONS UP TO 1200 V AND 10 A.

Part	Vce(on) (Max) @ Vge, Ic	Power - Max [Max]	Current - Collector Cutoff (Max) [Max]	Input	Voltage - Collector Emitter Breakdown (Max) [Max]	IGBT Type	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Input Capacitance (Cies) @ Vce	Mounting Type	Current - Collector (Ic) (Max) [Max]	Supplier Device Package	Configuration

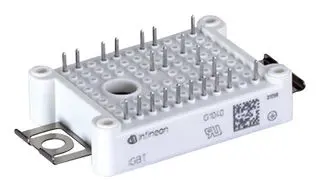

INFINEON FP10R12W1T4PBPSA1	2.25 V	20 mW	1 mA	Three Phase Bridge Rectifier	1200 V	Trench Field Stop	-40 C	150 °C	Module	600 pF	Chassis Mount	20 A	Module	Three Phase Inverter
INFINEON FP10R12W1T7B3BOMA1	1.6 V	20 mW	4.5 µA	Three Phase Bridge Rectifier	1200 V	Trench Field Stop	-40 °C	175 °C	Module	1.89 nF	Chassis Mount		AG-EASY1B-2	Three Phase Inverter
INFINEON FP10R12W1T4PB11BPSA1	2.25 V	20 mW	1 mA	Three Phase Bridge Rectifier	1200 V	Trench Field Stop	-40 C	150 °C	Module	600 pF	Chassis Mount	20 A	Module	Three Phase Inverter
INFINEON FP10R12W1T7PB3BPSA1
INFINEON FP10R12YT3BOMA1
INFINEON FP10R12W1T7PBPSA1
