071764 Series

Manufacturer: Molex

Catalog

CONN HEADER R/A 30POS 2.54MM

Part	Applications	Mounting Type	Contact Shape	Contact Length - Mating	Contact Length - Mating [x]	Insulation Material	Material Flammability Rating	Insulation Color	Contact Finish - Post	Contact Length - Post [x]	Contact Length - Post	Contact Material	Contact Finish - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Type	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Connector Type	Number of Rows	Shrouding	Fastening Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Style	Number of Positions	Termination	Contact Length - Mating	Number of Positions

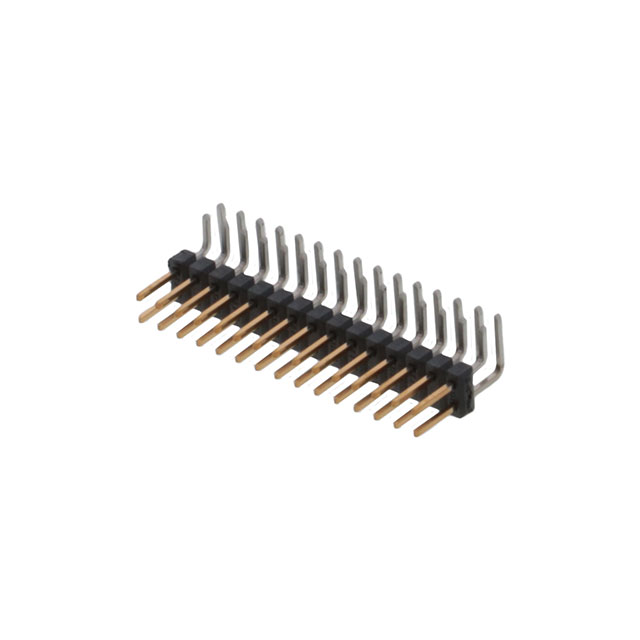

Molex 0717640130	Automotive General Purpose Lighting Medical Telecommunications	Through Hole Right Angle	Square	6.1 mm	0.24 in	Thermoplastic	UL94 V-0	Black	Tin	0.11 in	2.79 mm	Copper Alloy	Gold	2.54 mm	0.1 in	Male Pin	All	0.1 in	2.54 mm	Breakaway Header	2	Unshrouded	Push-Pull	74.8 Áin	1.9 Ám	15 µin	0.38 µm	Board to Board Cable	30	Solder
Molex 0717640006	Automotive General Purpose Lighting Medical Telecommunications	Through Hole Right Angle	Square	6.1 mm	0.24 in	Thermoplastic	UL94 V-0	Black	Tin	0.11 in	2.79 mm	Copper Alloy		2.54 mm	0.1 in	Male Pin	All	0.1 in	2.54 mm	Breakaway Header	2	Unshrouded	Push-Pull			150 Áin	3.81 Ám	Board to Board Cable	6	Solder
Molex 0717640008	Automotive General Purpose Lighting Medical Telecommunications	Through Hole Right Angle	Square	6.1 mm	0.24 in	Thermoplastic	UL94 V-0	Black	Tin	0.11 in	2.79 mm	Copper Alloy		2.54 mm	0.1 in	Male Pin	All	0.1 in	2.54 mm	Breakaway Header	2	Unshrouded	Push-Pull			150 Áin	3.81 Ám	Board to Board Cable	8	Solder
Molex 0717640126	Automotive General Purpose Lighting Medical Telecommunications	Through Hole Right Angle	Square	6.1 mm	0.24 in	Thermoplastic	UL94 V-0	Black	Tin	0.11 in	2.79 mm	Copper Alloy	Gold	2.54 mm	0.1 in	Male Pin	All	0.1 in	2.54 mm	Breakaway Header	2	Unshrouded	Push-Pull	74.8 Áin	1.9 Ám	15 µin	0.38 µm	Board to Board Cable	26	Solder
Molex 0717640416	Automotive General Purpose Lighting Medical Telecommunications	Through Hole Right Angle	Square	8.13 mm		Thermoplastic	UL94 V-0	Black	Tin	0.11 in	2.79 mm	Copper Alloy	Gold	2.54 mm	0.1 in	Male Pin	All	0.1 in	2.54 mm	Breakaway Header	2	Unshrouded	Push-Pull	74.8 Áin	1.9 Ám	15 µin	0.38 µm	Board to Board Cable		Solder	0.32 in	16
Molex 0717640414	Automotive General Purpose Lighting Medical Telecommunications	Through Hole Right Angle	Square	8.13 mm		Thermoplastic	UL94 V-0	Black	Tin	0.11 in	2.79 mm	Copper Alloy	Gold	2.54 mm	0.1 in	Male Pin	All	0.1 in	2.54 mm	Breakaway Header	2	Unshrouded	Push-Pull	74.8 Áin	1.9 Ám	15 µin	0.38 µm	Board to Board Cable	14	Solder	0.32 in
Molex 0717640112	Automotive General Purpose Lighting Medical Telecommunications	Through Hole Right Angle	Square	6.1 mm	0.24 in	Thermoplastic	UL94 V-0	Black	Tin	0.11 in	2.79 mm	Copper Alloy	Gold	2.54 mm	0.1 in	Male Pin	All	0.1 in	2.54 mm	Breakaway Header	2	Unshrouded	Push-Pull	74.8 Áin	1.9 Ám	15 µin	0.38 µm	Board to Board Cable	12	Solder
Molex 0717640204	Automotive General Purpose Lighting Medical Telecommunications	Through Hole Right Angle	Square	6.1 mm	0.24 in	Thermoplastic	UL94 V-0	Black	Tin	0.11 in	2.79 mm	Copper Alloy	Gold	2.54 mm	0.1 in	Male Pin	All	0.1 in	2.54 mm	Breakaway Header	2	Unshrouded	Push-Pull	74.8 Áin	1.9 Ám	30 Áin	0.76 Ám	Board to Board Cable	4	Solder
Molex 0717640504	Automotive General Purpose Lighting Medical Telecommunications	Through Hole Right Angle	Square	8.13 mm		Thermoplastic	UL94 V-0	Black	Tin	0.11 in	2.79 mm	Copper Alloy	Gold	2.54 mm	0.1 in	Male Pin	All	0.1 in	2.54 mm	Breakaway Header	2	Unshrouded	Push-Pull	74.8 Áin	1.9 Ám	30 Áin	0.76 Ám	Board to Board Cable	4	Solder	0.32 in
Molex 0717649004	Automotive General Purpose Lighting Medical Telecommunications	Through Hole Right Angle	Square	6.1 mm	0.24 in	Thermoplastic	UL94 V-0	Black	Tin	0.11 in	2.79 mm	Copper Alloy	Gold	2.54 mm	0.1 in	Male Pin		0.1 in	2.54 mm	Breakaway Header	2	Unshrouded	Push-Pull	74.8 Áin	1.9 Ám	15 µin	0.38 µm	Board to Board Cable	8	Solder
