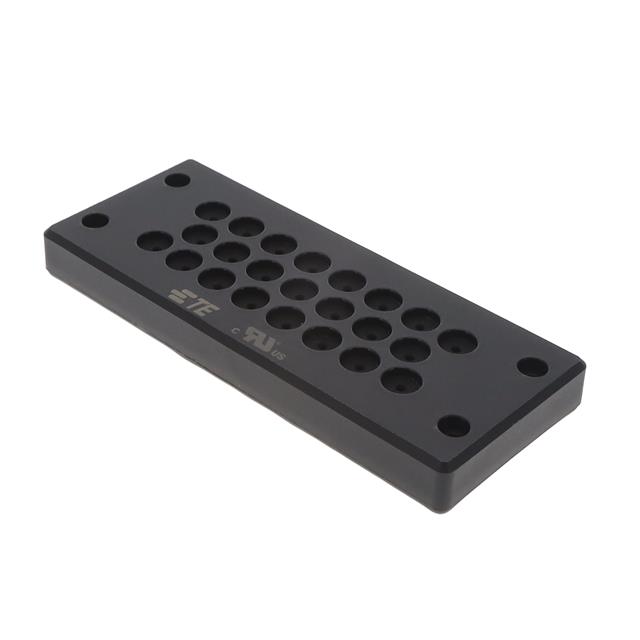

EP-BRM-SZ23 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
CONNECTOR ACCESSORY
| Part | Color | Bushing, Grommet Type | Panel Thickness [Min] | Panel Thickness [Max] | Panel Thickness [Min] | Panel Thickness [Max] | Material Flammability Rating | Diameter - Inside [Max] [diameter] | Diameter - Inside [Max] [diameter] | Diameter - Inside [Min] [diameter] | Diameter - Inside [Min] [diameter] | For Use With/Related Products | Material | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Gray | Grommet Entry Plate | 0.039 in | 0.059 in | 0.99 mm | 1.5 mm | UL94 V-2 | 8.5 mm | 0.335 " | 4 mm | 0.157 " | Cable Wires | Polyamide (PA) Nylon | 5.827 in 148 mm | 2.362 in 60 mm |
