MH18 Series

Catalog

BRAZED SEAM RING TONGUE HEAT SHRINK TERMINAL (BULK)

Part	Material - Insulation	Features	Insulation	Stud/Tab Size	Mounting Type	Length - Overall	Length - Overall	Contact Finish	Termination	Color	Width - Outer Edges	Width - Outer Edges	Terminal Type	Contact Material	Wire Gauge [Max]	Wire Gauge [Min]	Thickness	Thickness	Length - Termination [x]	Length - Termination [x]	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Length - Termination	Length - Termination	Width - Outer Edges [x]	Width - Outer Edges [x]	Number of Wire Entries

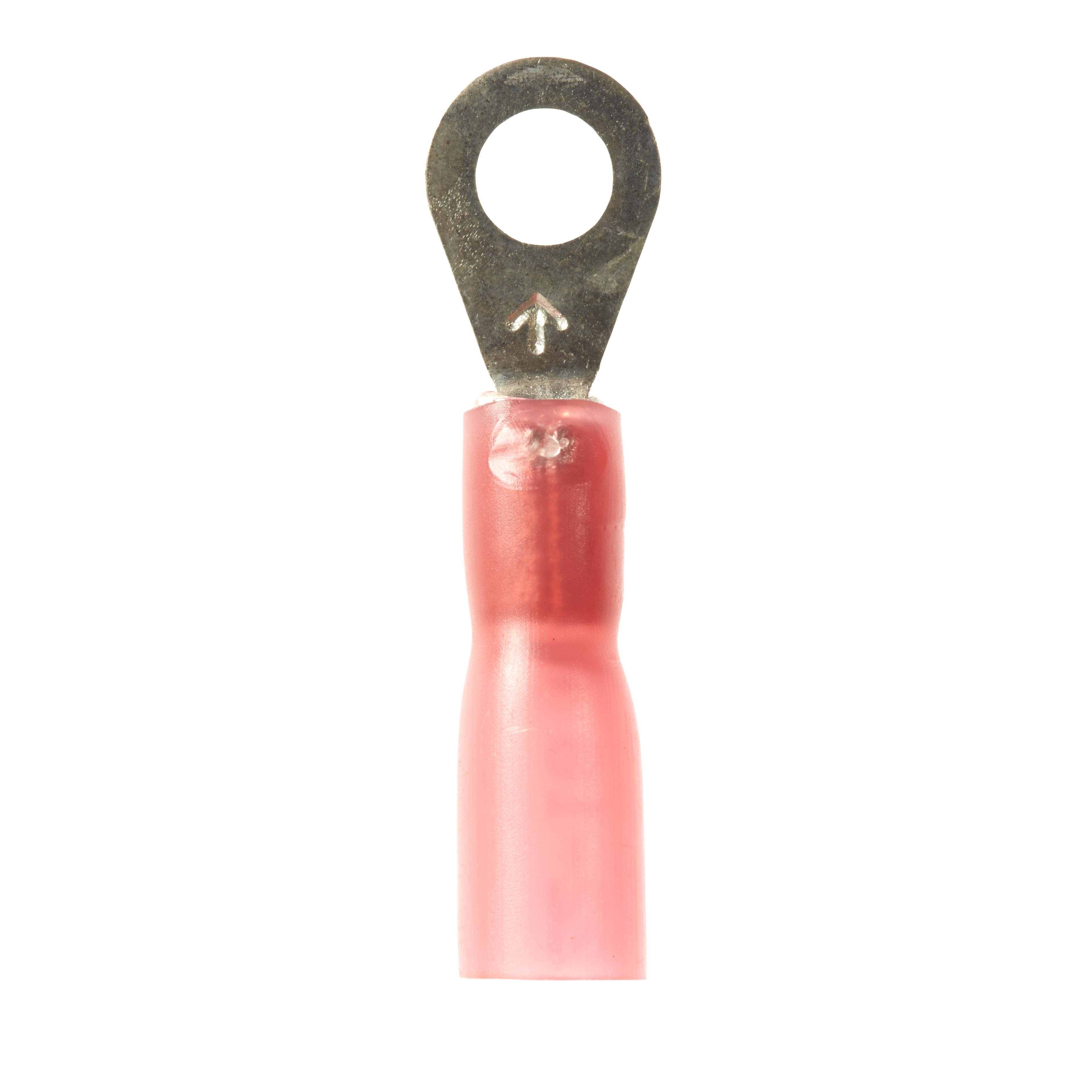

3M Electronic Specialty MH18-6R/LK	Polyolefin	Brazed Seam	Insulated with Heat Shrink	6 Stud	Free Hanging (In-Line)	25.4 mm	1 in	Tin	Crimp	Red	7.87 mm	0.31 in	Circular	Copper ETP	22 AWG	17.5 AWG	0.76 mm	0.03 in
3M Electronic Specialty MH18-8FLX-BOTTLE	Polyolefin	Brazed Seam	Insulated with Heat Shrink	8 Stud	Free Hanging (In-Line)	25.4 mm	1 in	Tin	Crimp	Red			Snap Spring	Copper ETP	22 AWG	17.5 AWG			0.55 in	13.97 mm	3.81 mm	0.15 in
3M Electronic Specialty MH18-10FLK	Polyolefin	Brazed Seam	Insulated with Heat Shrink	10 Stud	Free Hanging (In-Line)	25.4 mm	1 in	Tin	Crimp	Red			Snap Spring	Copper ETP	22 AWG	17.5 AWG					3.81 mm	0.15 in	15.49 mm	0.61 in	0.32 in	8.13 mm
3M Electronic Specialty MH18-10R/LK	Polyolefin	Brazed Seam	Insulated with Heat Shrink	10 Stud	Free Hanging (In-Line)	25.4 mm	1 in	Tin	Crimp	Red	7.87 mm	0.31 in	Circular	Copper ETP	22 AWG	17.5 AWG	0.76 mm	0.03 in
3M Electronic Specialty MH18-6FLK	Polyolefin	Brazed Seam	Insulated with Heat Shrink	6 Stud	Free Hanging (In-Line)	25.4 mm	1 in	Tin	Crimp	Red			Snap Spring	Copper ETP	22 AWG	17.5 AWG					3.81 mm	0.15 in	15.49 mm	0.61 in	0.25 "	6.35 mm
3M Electronic Specialty MH18-10R/LX-BOTTLE	Polyolefin	Brazed Seam	Insulated with Heat Shrink	10 Stud	Free Hanging (In-Line)	25.4 mm	1 in	Tin	Crimp	Red	7.87 mm	0.31 in	Circular	Copper ETP	22 AWG	17.5 AWG	0.76 mm	0.03 in
3M Electronic Specialty MH18-6FLX-BOTTLE	Polyolefin	Brazed Seam	Insulated with Heat Shrink	6 Stud	Free Hanging (In-Line)	25.4 mm	1 in	Tin	Crimp	Red			Snap Spring	Copper ETP	22 AWG	17.5 AWG					3.81 mm	0.15 in	15.49 mm	0.61 in	0.25 "	6.35 mm
3M Electronic Specialty MH18BCX-BOTTLE			Fully Insulated Heat Shrink						Crimp	Red			Butt Splice Individual Openings Inline		22 AWG	17.5 AWG											2
3M Electronic Specialty MH18-10FLX-BOTTLE	Polyolefin	Brazed Seam	Insulated with Heat Shrink	10 Stud	Free Hanging (In-Line)	25.4 mm	1 in	Tin	Crimp	Red			Snap Spring	Copper ETP	22 AWG	17.5 AWG					3.81 mm	0.15 in	15.49 mm	0.61 in	0.32 in	8.13 mm
3M Electronic Specialty MH18-8R/LK	Polyolefin	Brazed Seam	Insulated with Heat Shrink	8 Stud	Free Hanging (In-Line)	25.4 mm	1 in	Tin	Crimp	Red	7.87 mm	0.31 in	Circular	Copper ETP	22 AWG	17.5 AWG	0.76 mm	0.03 in
